HPE SmartArray P212/256 1-ports Int/1-ports Ext PCIe x8 SAS RAID controller PCI Express x8 2.0 6 Gbit/s

HPE SmartArray P212/256 1-ports Int/1-ports Ext PCIe x8 SAS RAID controller PCI Express x8 2.0 6 Gbit/s

Hewlett Packard Enterprise
£290.99
Stock Available: 0
  • Supported storage drive interfaces: SAS, Serial ATA
  • Host interface: PCI Express x8
  • RAID levels: 0, 1, 1+0, 5, 5+0, 6, 6+0
  • 6 Gbit/s

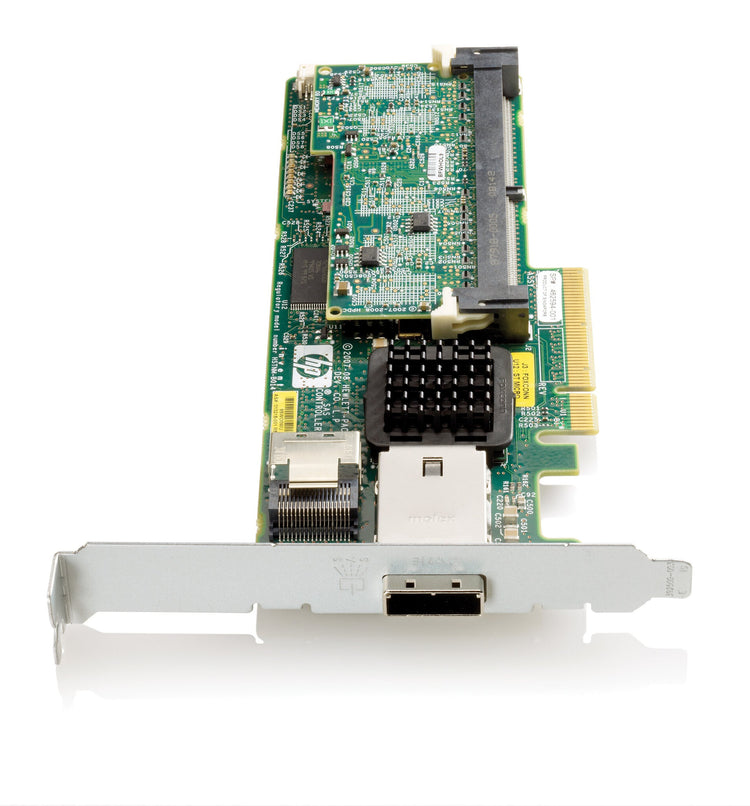

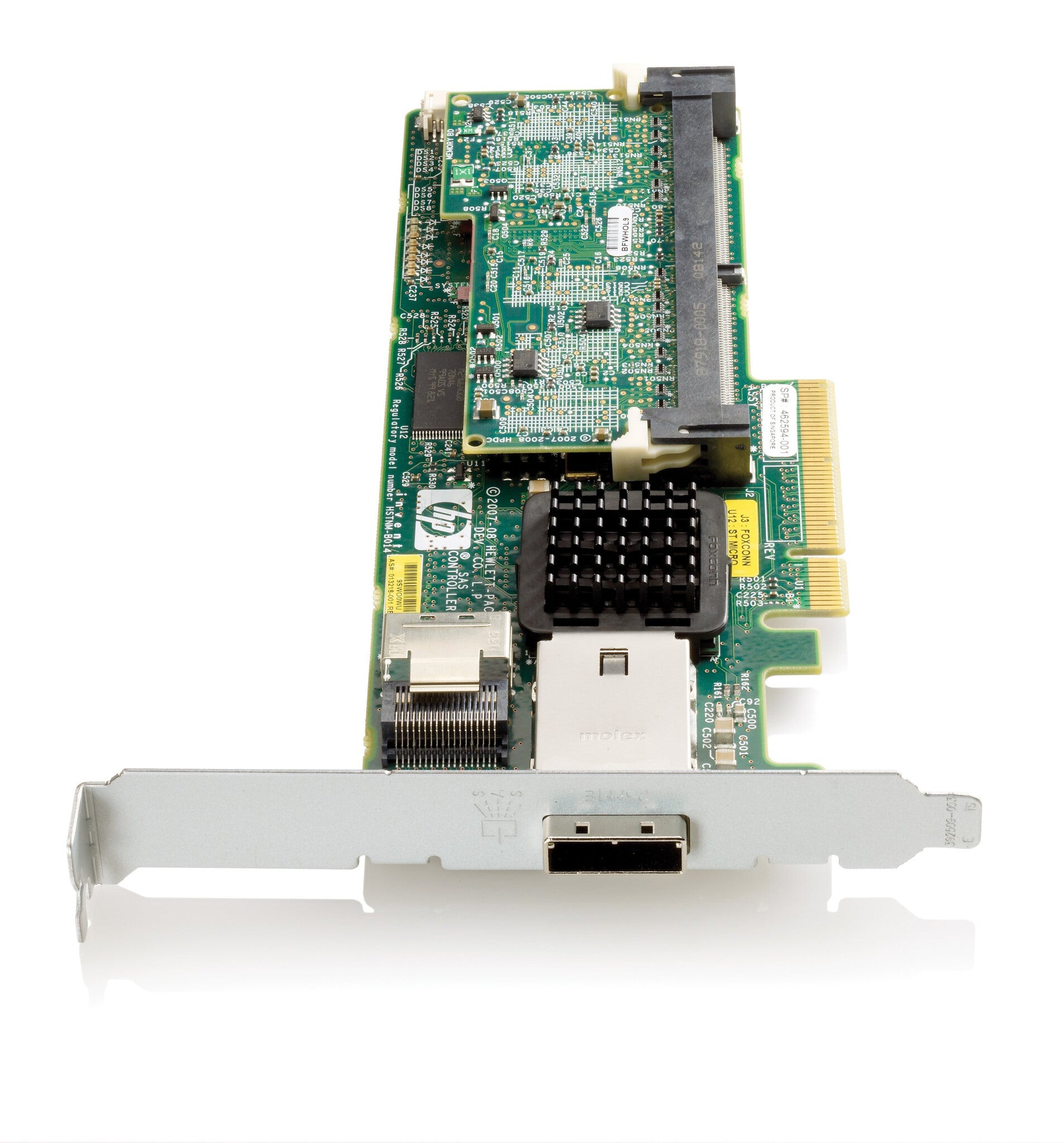

The HPE Smart Array P212 is HPE's entry level PCI Express (PCIe) Serial Attached SCSI (SAS) RAID controller. The low profile, half height card has 8 ports and utilizes DDR2-800 memory. The P212 is ideal for RAID 0, 1, 1+0, and can be upgraded with 256 MB Cache module for RAID 5, 5+0 and additionally with Battery Kit and Smart Array Advanced Pack (SAAP) license key for RAID 6 (ADG), & 6+0.

Ports & interfaces
Supported storage drive interfaces SAS, Serial ATA
Host interface PCI Express x8
PCI Express slots version 2.0
External mini-SAS ports 1
Internal mini-SAS ports 1
Performance
RAID levels 0, 1, 1+0, 5, 5+0, 6, 6+0
Data transfer rate 6 Gbit/s
Internal memory 256 MB
General
Product family SmartArray
Weight & dimensions
Width 190.5 mm
Depth 241.3 mm
Height 57.2 mm
