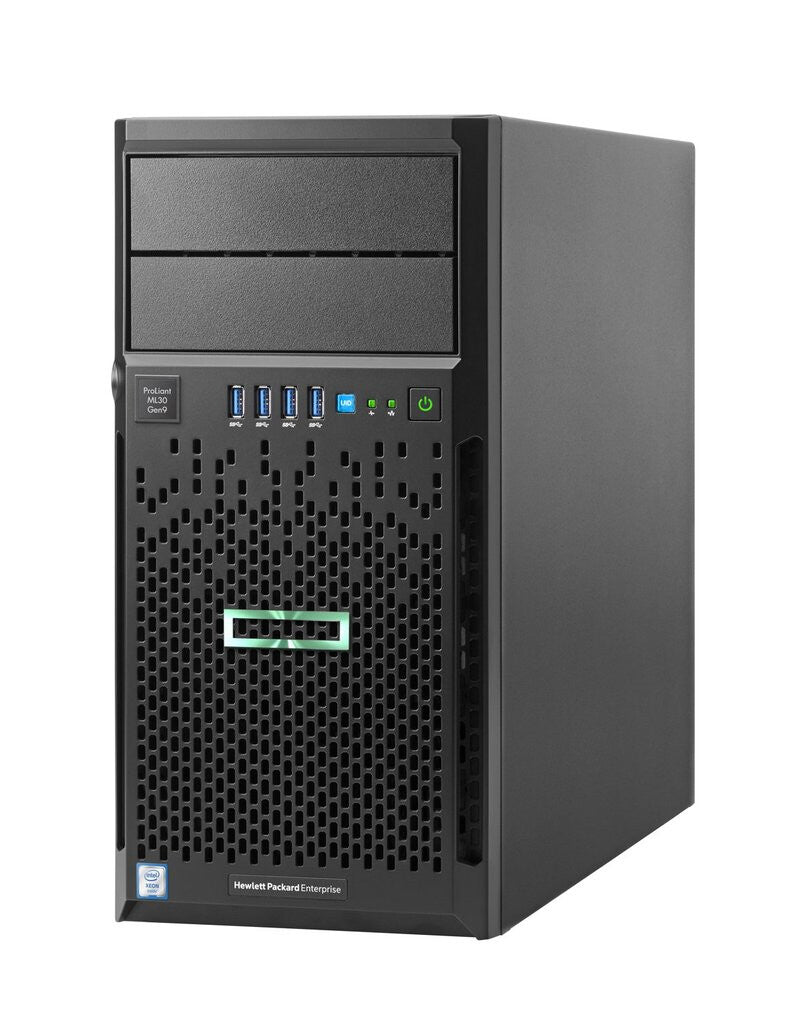

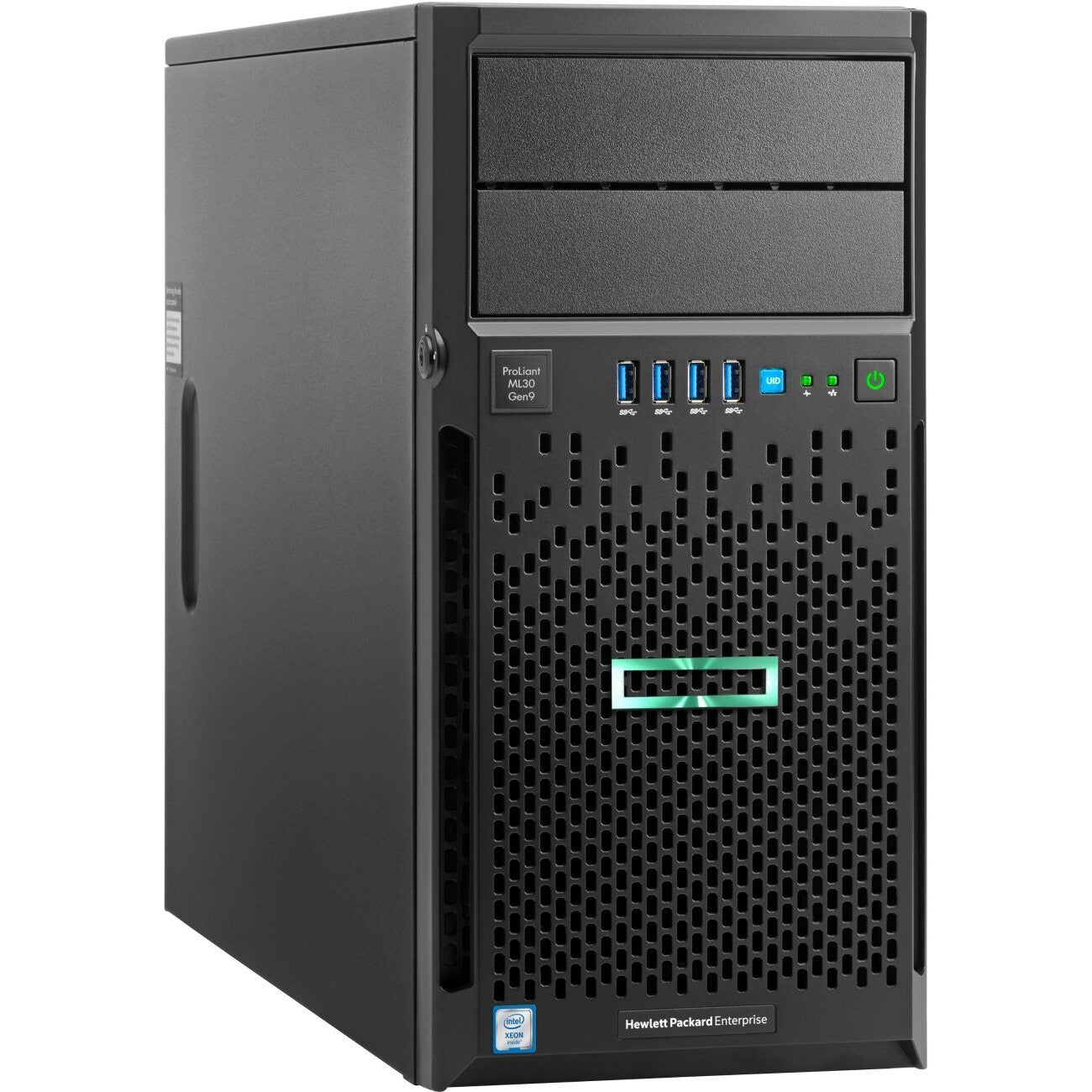

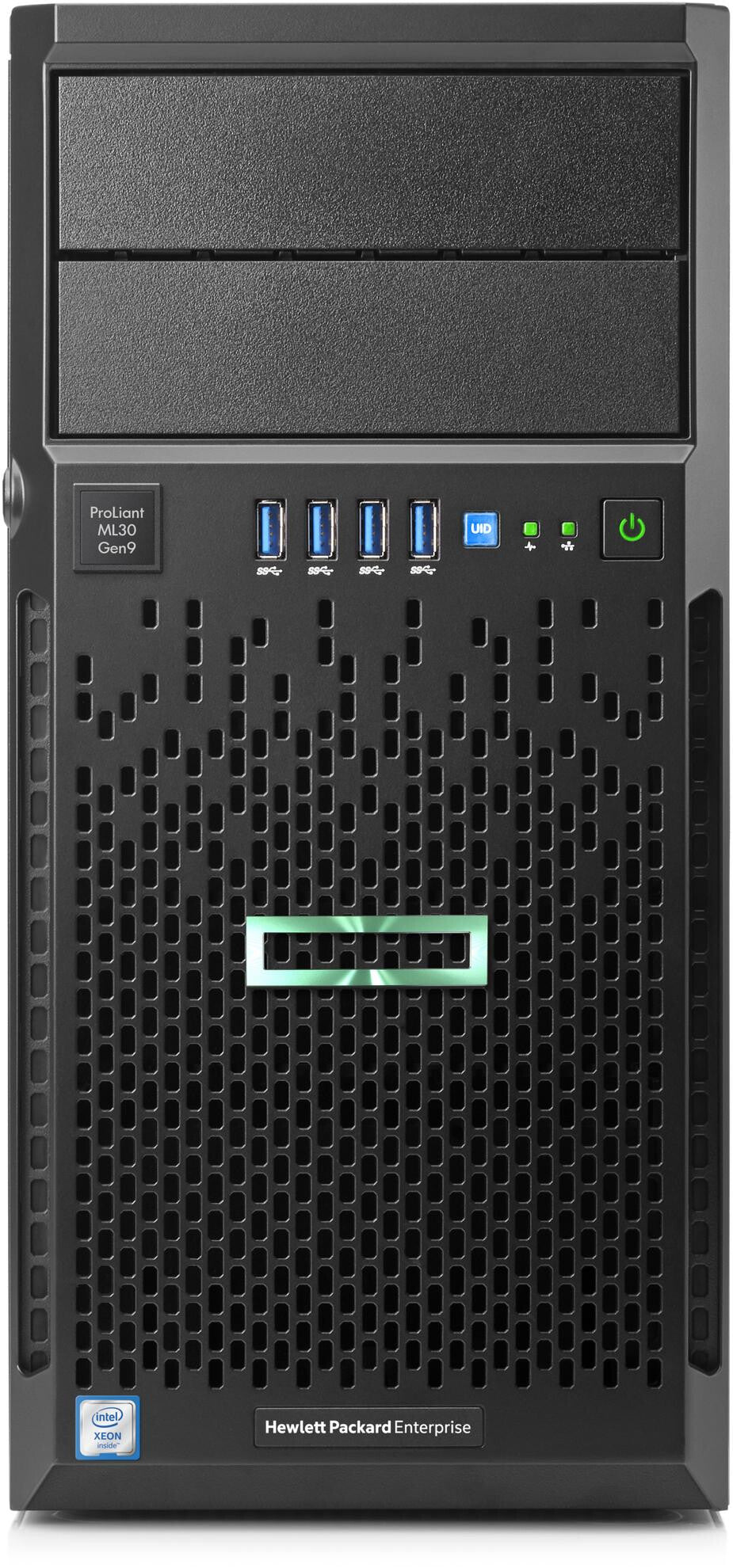

HPE ProLiant ML30 Gen9 server 0 GB Tower (4U) Intel® Xeon® E3 v6 E3-1240V6 3.7 GHz 8 GB DDR4-SDRAM 460 W
Couldn't load pickup availability
- Intel® Xeon® E3 v6 E3-1240V6 3.7 GHz
- 8 GB 2400 MHz DDR4-SDRAM 1 x 8
- Tower (4U) 460 W
Does your remote or branch office need a server that delivers the essential availability and expansion to accommodate your changing business needs? The HPE ProLiant ML30 Gen9 Server is an affordable single-socket tower server that features value performance, expansion, and growth that is ideal for small businesses and remote branch offices.
Features
Unlock Your Infrastructure’s Potential with Easy-to-Use Integrated Management and Support
- The HPE ProLiant ML30 Gen9 Server offers HPE iLO Management Engine, a complete set of embedded features, standard on all ProLiant Gen9 Server products. Includes HPE iLO, HPE Agentless Management, HPE Active Health System, HPE Intelligent Provisioning, and HPE Embedded Remote Support.
- HPE Insight Control provides advanced management capabilities across the lifecycle of your HPE ProLiant server infrastructure. HPE iLO Advanced, a key component, provides enhanced remote server functions that reduce IT travel costs, while decreasing time-to-resolution.
- HPE Insight Online with HPE Insight Remote Support provides 24x7 remote monitoring and anywhere, anytime personalized access to your IT and support status.
- HPE Smart Update reduces deployment time and update complexity by systematically updating server infrastructure in the data center. Includes HPE Smart Update Manager (HPE SUM), and Service Pack for ProLiant (SPP), and other products.
Near Continuous Data Protection
- The HPE ProLiant ML30 Gen9 Server Smart Array options provide businesses RAID mirroring and striping capability to protect critical data while the Flash-Backed Write Cache (FBWC) captures and holds data indefinitely in the event of a power loss, equipment failure, human error or virus attacks.
- HPE Smart Drives improve serviceability and prevents data loss with features such as icon-based status display and Do Not Remove LED.
- Dedicated iLO port facilitates enhanced security and faster data transmission. ECC memory protects businesses from data loss and unplanned system downtime.
Flexible Options To Meet Changing Business Needs
- The HPE ProLiant ML30 Gen9 Server provides HPE SmartDrives which offers more drive options including eight Small Form Factor (SFF) and four Large Form Factor (LFF) drive cages giving you flexibility for increased capacity for your local storage. Support up to 8 TB per slot.
- It supports 2133 MHz DDR4 memory, with up to four DIMMs (64 GB maximum) for increased performance.
- Four PCI Express (PCIe) slots, including four PCIe 3.0 slots, provide additional I/O performance.
Seamless Network Connectivity Extends Benefits of Converged Infrastructure
- The HPE ProLiant ML30 Gen9 Server offers compatibility with 24-port HPE 1810 Series Switches to enhance both connectivity and data availability.
- Common pool of resources and applications results in a higher level of simplicity and flexibility in operations.
- User-friendly interface on HPE PS1810 Series Switches allow for a consolidated view of servers and switches in the network so workloads can be prioritized.
| Processor | |
|---|---|
| Conflict-Free processor | Yes |
| Stepping | B0 |
| Thermal Monitoring Technologies | Yes |
| Processor code | SR327 |
| Maximum internal memory supported by processor | 64 GB |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithography | 14 nm |
| Processor threads | 8 |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1866,2400 MHz |
| Maximum number of PCI Express lanes | 16 |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Scalability | 1S |
| Embedded options available | No |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Memory bandwidth supported by processor (max) | 37.5 GB/s |
| ECC supported by processor | Yes |
| Bus type | DMI3 |
| System bus rate | 8 GT/s |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 72 W |
| Number of processors installed | 1 |
| Memory channels supported by processor | Dual |
| Motherboard chipset | Intel® C236 |
| Processor cache | 8 MB |
| Processor cores | 4 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 3.7 GHz |
| Processor model | E3-1240V6 |
| Processor family | Intel® Xeon® E3 v6 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 64 GB |
| Memory slots | 4x DIMM |
| ECC | Yes |
| Memory clock speed | 2400 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 4 |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 48 TB |
| Graphics | |
|---|---|
| On-board graphics card model | Matrox G200 |
| On-board graphics card | Yes |
| Network | |
|---|---|
| LAN controller | HP 332i |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Chassis type | Tower (4U) |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows ServerRed Hat Enterprise Linux (RHEL)SUSE Linux Enterprise Server (SLES)VMwareClearOS |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | Yes |
| Intel Clear Video Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 97469 |
| Intel® Quick Sync Video Technology | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Power | |
|---|---|
| Number of redundant power supplies installed | 1 |
| Power supply | 460 W |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | ML |
| Weight & dimensions | |
|---|---|
| Weight | 13.5 kg |
| Depth | 475.2 mm |
| Height | 368.2 mm |
| Width | 175 mm |
