£2,173.99

Stock Available: 0
  • Intel Xeon E E-2224 3.4 GHz
  • 16 GB 2666 MHz DDR4-SDRAM 1 x 16
  • Tower (4U) 350 W

Do you know that a reliable enterprise-class server can easily meet your budget?

The HPE ProLiant ML30 Gen10 server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premise and Hybrid Cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a lower cost. Just a small change can give you an extra edge. Hewlett Packard Enterprise builds security right into the server with HPE iLO silicon root of trust, making the HPE ProLiant ML30 Gen10 server one of the world's most secure industry-standard servers. Redundant power supply option and up to 4 LFF or 8 SFF hot-plug HDDs provide availability and flexibility. The enhanced expansion capability allows you to upgrade with SAS controllers, networking cards, or graphics cards as your business grows. You will be surprised at how much benefit you can get with HPE ProLiant ML30 Gen10 server.

What's new
- Supports Intel® Xeon® E-2100/2200 processor series with up to 6 cores and 83W, 8th/9th Core™ i3 and Pentium® G processors.
- HPE 361i 1Gb 2-Port network adapter on models with the new Intel® Xeon® E-2200, 9th Gen Core™ i3 and Pentium G processors.
- HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
- 2666 MT/s HPE DDR4 Standard Memory UDIMM offering 8 GB, 16 GB. and a maximum of 64 GB memory capacity.
- Four expansion slots for more flexible usage - two x16 and two x8 connectors.
- Dedicated HPE iLO port and serial port option kit.

Features

Powerful Yet Affordable Server for Your Daily Office Workloads
- The HPE ProLiant ML30 Gen10 server, powered by up to 6 cores in the Intel Xeon E Processor and up to 64 GB of 2666 MT/s DDR4 ECC UDIMM, delivers abundant performance for small- to mid-sized business applications.
- Up to 61.44 TB storage capacity makes HPE ProLiant ML30 Gen10 server an ideal data storage solution for your business to cope with the increasing amount of data. Onboard M.2 slot with NVMe SSD support delivers outstanding speed for boot drive.1
- The option of a dedicated HPE iLO port allows you to dedicate more bandwidth to network functions to achieve higher network performance.
- The embedded SATA HPE Smart Array S100i Controller ships standard and the redesigned HPE Smart Array Controllers allow you the flexibility to choose the 12 Gbps controller that is most suited to your environment.
- With selection of Hewlett Packard Enterprise qualified professional 3D graphics cards, HPE ProLiant ML30 Gen10 server can easily handle graphical workloads such as medium size CAD models, basic digital content creation, and medical imaging.

Variety of Enterprise-class Features to Achieve Business Growth with Lower TCO

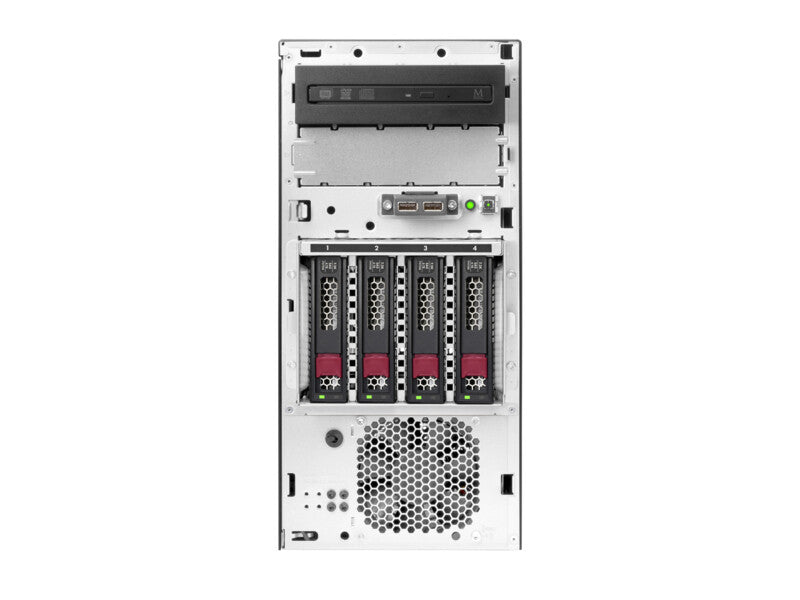

- The HPE ProLiant ML30 Gen10 server offers flexibility in different storage needs. With the choice of four Large Form Factor (LFF) non-hot-plug, hot-plug, or eight Small Form Factor (SFF) hot-plug drive options, you can find the right storage fit for your growing business.
- The selective HPE 500W Flex Slot Platinum Hot Plug Power Supply Kit enhances reliability, and lets you share spares across multiple server platforms.
- Error-Correcting Code (ECC) memory protects business from data loss and unplanned system downtime.
- The HPE ProLiant ML30 Gen10 server offers a complete set of embedded HPE Integrated Lights Out (iLO 5) for Gen10 Servers management features, which includes HPE iLO with Agentless Management, Active Health System, and intelligent provisioning.

Security Innovations
- The HPE ProLiant ML30 Gen10 server is one of the Hewlett Packard Enterprise industry-standard servers with major firmware anchored directly into the silicon security protection built-in across the server lifecycle, starting with silicon root of trust.
- Millions of lines of firmware code run before server operating system boots. With Runtime Firmware Validation, enabled by HPE iLO Advanced Premium Security Edition, the server firmware is checked every 24 hours verifying validity and credibility of essential system firmware.
- Secure recovery allows server firmware to roll back to the last, known-good state or factory settings after detection of compromised code.
- Additional security options are available with Trusted Platform Module (TPM) to prevent unauthorized access to the server and reliably store artifacts used to authenticate the server.

Industry-Leading Services and Ease of Deployment
- The HPE ProLiant ML30 Gen10 server comes with a complete set of services from HPE Pointnext, delivering confidence, reducing risk, and helping you realize agility and stability.
- Services from HPE Pointnext simplify all stages of the IT journey. Advisory and Transformation Service professionals understand customer challenges and design an enhanced solution. Professional Services enable rapid deployment of solutions and Operational Services provide ongoing support.
- Services provided under Operational Services include: HPE GreenLake Flex Capacity, HPE Datacenter Care, HPE Infrastructure Automation, HPE Campus Care, HPE Proactive Services, and multivendor coverage.
- Hewlett Packard Enterprise IT investment solutions help you transform to a digital business with IT economics that align to your business goals.

Processor
Thermal Monitoring Technologies Yes
Maximum internal memory supported by processor 128 GB
Execute Disable Bit Yes
Idle States Yes
Processor socket LGA 1151 (Socket H4)
Processor lithography 14 nm
Processor threads 4
Processor operating modes 64-bit
Processor codename Coffee Lake
Tcase 69.3 °C
Memory types supported by processor DDR4-SDRAM
Memory clock speeds supported by processor 2666 MHz
Maximum number of PCI Express lanes 16
Processor package size 37.5 x 37.5 mm
Supported instruction sets SSE4.1, SSE4.2, AVX 2.0
Scalability 1S
Embedded options available No
Tjunction 100 °C
PCI Express configurations 1x16, 2x8, 1x8+2x4
Processor cache type Smart Cache
Thermal Design Power (TDP) 71 W
Number of processors installed 1
Motherboard chipset Intel C246
Processor cache 8 MB
Processor cores 4
Processor boost frequency 4.6 GHz
Processor frequency 3.4 GHz
Processor model E-2224
Processor family Intel Xeon E
Processor manufacturer Intel
Memory
Maximum internal memory 64 GB
Memory slots 4x DIMM
ECC Yes
Memory clock speed 2666 MHz
Memory layout (slots x size) 1 x 16 GB
Internal memory type DDR4-SDRAM
Internal memory 16 GB
Storage
Optical drive type No
Hot-Plug support Yes
RAID levels 0, 1, 5, 10
RAID support Yes
Number of HDDs supported 4
HDD size 3.5"
HDD interface Serial ATA
Total storage capacity 0 GB
Maximum storage capacity 56 TB
Graphics
On-board graphics card model Not available
Network
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Ports & interfaces
VGA (D-Sub) ports quantity 1
USB 2.0 ports quantity 1
Ethernet LAN (RJ-45) ports 2
Expansion slots
PCI Express slots version 3.0
Design
Redundant fans support No
Product colour Black
Chassis type Tower (4U)
Performance
Trusted Platform Module (TPM) Yes
Trusted Platform Module (TPM) version 2.0
Remote administration iLO 5 ASIC
Software
Compatible operating systems Microsoft Windows Server 2016 & 2019Red Hat Enterprise Linux (RHEL) 7.5 & 8.0SUSE Linux Enterprise Server (SLES) 12 SP3 & 15VMware ESXi 6.5 U2 & 6.7ClearOSCentOS
Operating system installed No
Processor special features
Intel TSX-NI Yes
Intel Clear Video Technology No
Intel® Secure Key Yes
Intel® OS Guard Yes
Intel® Hyper Threading Technology (Intel® HT Technology) No
Intel® Turbo Boost Technology 2.0
Intel® AES New Instructions (Intel® AES-NI) Yes
Processor ARK ID 191036
Intel® Quick Sync Video Technology No
Intel® InTru™ 3D Technology No
Intel® Clear Video HD Technology (Intel® CVT HD) No
CPU configuration (max) 1
Enhanced Intel SpeedStep Technology Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Trusted Execution Technology Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel Software Guard Extensions (Intel SGX) Yes
Intel 64 Yes
Intel Virtualization Technology (VT-x) Yes
Power
Number of main power supplies 1
Power supply 350 W
Redundant power supply (RPS) support No
General
Product family ProLiant
Product series ML
Logistics data
Harmonized System (HS) code 84714100
Weight & dimensions
Depth 475 mm
Height 368.3 mm
Width 175 mm
