£1,642.99

Stock Available: 0
  • Intel® Xeon® E5 v4 E5-2609V4 1.7 GHz
  • 8 GB 2400 MHz DDR4-SDRAM 1 x 8
  • Tower (5U) 550 W

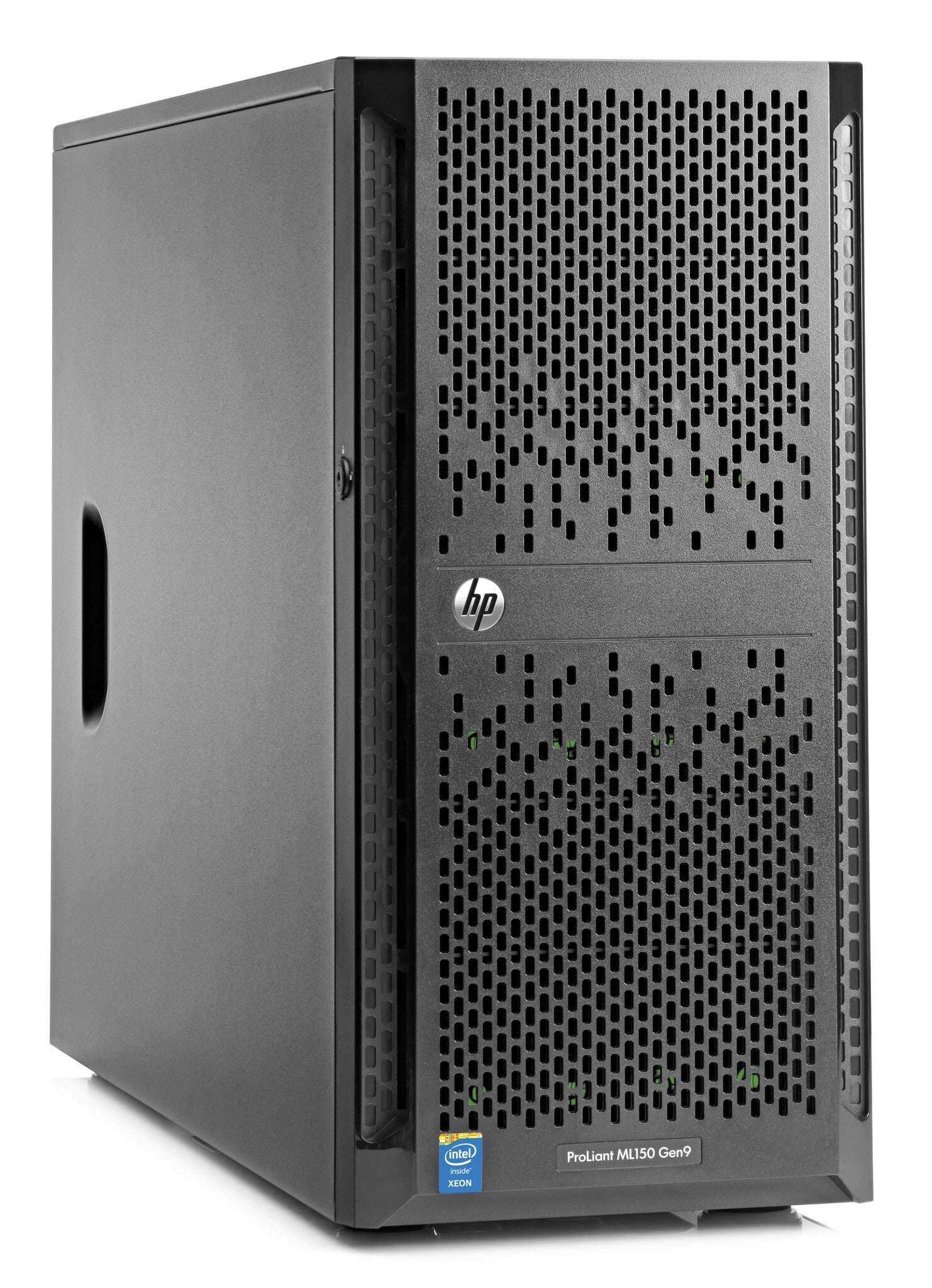

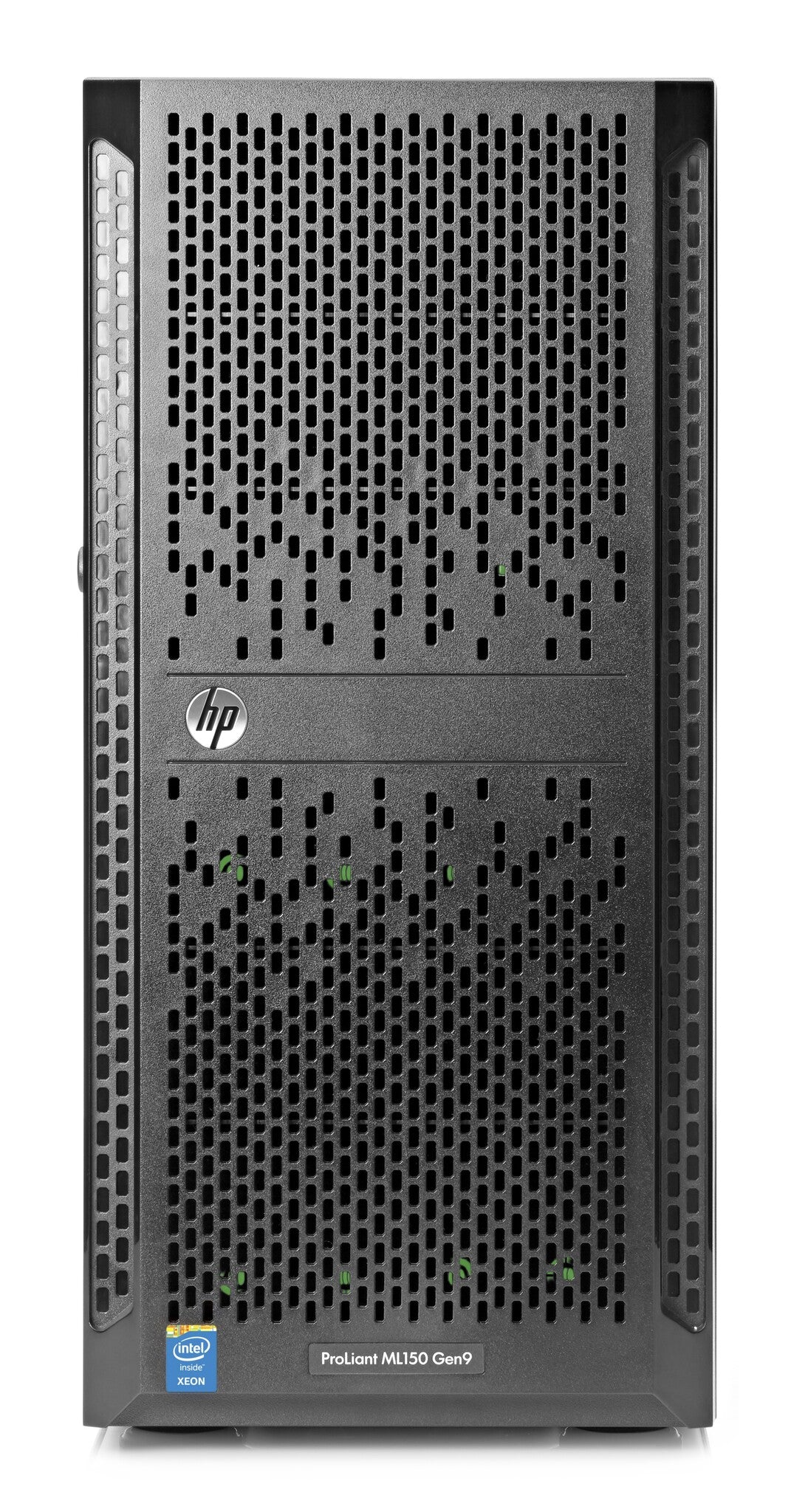

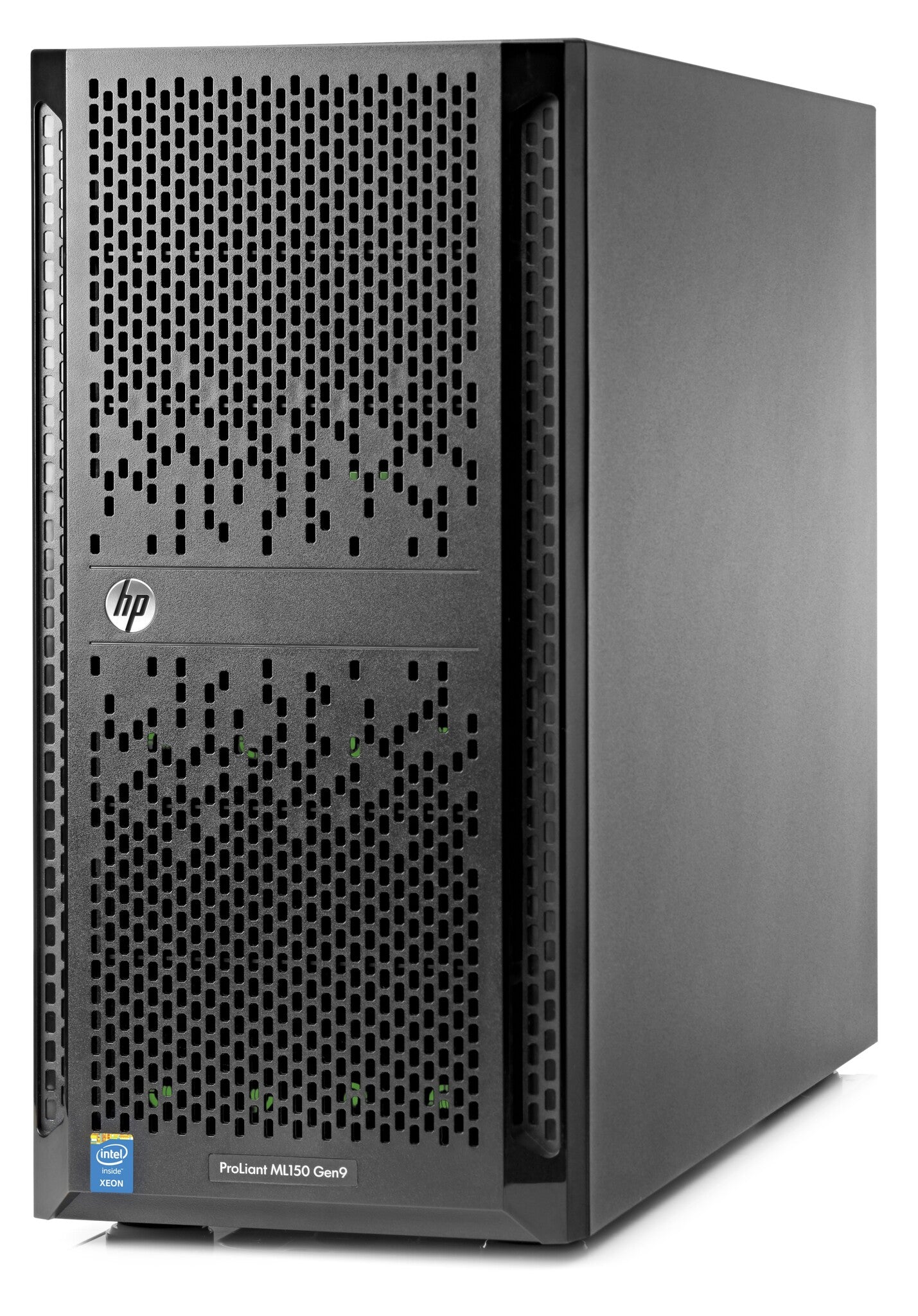

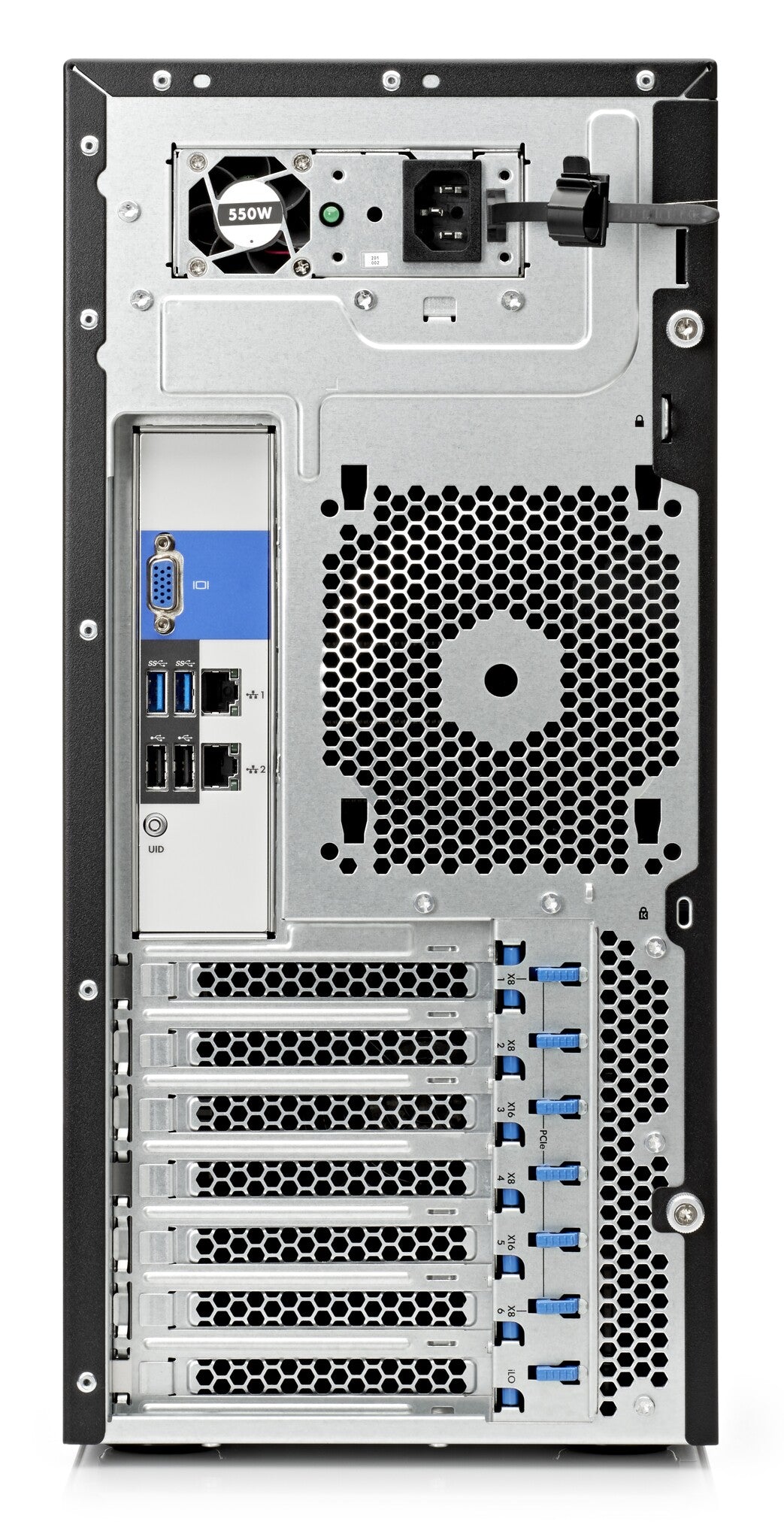

Are you searching for a tower server to meet the requirements of your small to medium-sized growing business? The HPE ProLiant ML150 Gen9 Server is a tower server that delivers exceptional value for a business with a limited budget with a 24-inch chassis depth. Providing dual processor sockets, it provides essential performance with the Intel® Xeon® E5-2600 v4 processors.

Built-in innovations that simplify server deployment and management, your business can continually reap these benefits on a daily basis, with expansion options that enable you to expand as needed, delivering increased business value. The HPE ProLiant ML150 Gen9 Server provides efficiency and productivity for both the small to medium organization that is growing.

Features

Performance to Meet Growing SMB Requirements
- The HPE ProLiant ML150 Gen9 Server has built-in intelligence, with the right balance of storage, performance, efficiency, manageability and with enough headroom for future growth.
- Supports up to two Intel® Xeon® E5-2600 v4 processors with up to 14 cores offering both improved performance and efficiency.
- Help prevent data loss and downtime with enhanced error handling while improving workload performance and power efficiency with up to (16) DIMM slots of HPE DDR4 SmartMemory.
- Embedded SATA HPE Dynamic Smart Array B140i Controller for boot and data. Choice of HPE Smart Array Controllers for increased performance, data availability and 12 Gb/s SAS technology or HPE Smart HBAs with reliable high-performance SAS connectivity capable of running HBA mode or simple RAID mode.
- Increased GPU support (two single wide and one double wide GPU card support) to boost performance in graphic and VDI applications for financial services, education, scientific research and medical imaging.

Efficiency and Expandability to Fit the Needs of Growing, Budget-Conscious Businesses
- The HPE ProLiant ML150 Gen9 Server is designed as a dual-socket tower server providing configuration flexibility and expansion options to meet a wide range of different capacities, connectivity, and design requirements.
- Flexible expansion capacity with (6) PCIe expansion slots, (8) USB ports, and power supply options.
- Compact server with a 24-inch chassis depth; newly designed and saves precious real estate space and is suitable for your growing business within a compact office environment.
- Offering expandability with greater capacity with up to (10) Large Form Factor (LFF) disk drives or (16) Small Form Factor (SFF) disk drive options and increased I/O expansion.
- Improved ambient temperature standard with ASHRAE A3 1 helps customer reduce cooling expense.

Infrastructure Management for Essential Server Administration
- The HPE ProLiant ML150 Gen9 Server continues to provide a simplified server deployment with tiered management. Businesses continue to reap benefits on a daily basis, while expansion options allow them to grow as needed with HPE Integrated Lights-Out (iLO).
- Configure with the Unified Extensible Firmware Interface (UEFI) boot mode, provision both locally and remotely with either the Intelligent Provisioning or Scripting Toolkits.
- Online personalized dashboard for Converged Infrastructure (CI) for health monitoring and support management from within HPE Insight Online.
- Optimize firmware and driver updates and reduce downtime with Smart Update, consisting of SUM (Smart Update Manager) and SPP (Service Pack for ProLiant).

Enhanced Serviceability Offerings
- The HPE ProLiant ML150 Gen9 Server delivers a new style IT that delivers simplicity and agility needed to manage business investments.
- Proven HPE ProLiant reliability, exceptional worldwide service 24x7, unparalleled remote management tools that reduce IT travel costs, while increasing time-to-resolution.
- Worldwide availability, service and support with a complete range of service offerings from installation to extended support.

Processor
Conflict-Free processor Yes
Stepping R0
Thermal Monitoring Technologies Yes
Processor code SR2P1
Maximum internal memory supported by processor 1.54 TB
Execute Disable Bit Yes
Idle States Yes
Processor socket LGA 2011-v3
Processor lithography 14 nm
Processor threads 8
Processor operating modes 64-bit
Processor codename Broadwell
Tcase 74 °C
Memory types supported by processor DDR4-SDRAM
Memory clock speeds supported by processor 1600,1866 MHz
Maximum number of PCI Express lanes 40
Processor package size 45 x 52.5 mm
Supported instruction sets AVX 2.0
Scalability 2S
Embedded options available Yes
Maximum number of SMP processors 2
PCI Express configurations 1x4, 1x8, 1x16
Number of QPI links 2
Memory bandwidth supported by processor (max) 59.7 GB/s
ECC supported by processor Yes
Physical Address Extension (PAE) Yes
Processor series Intel Xeon E5-2600 v4
Bus type QPI
System bus rate 6.4 GT/s
Processor cache type Smart Cache
Thermal Design Power (TDP) 85 W
Number of processors installed 1
Memory channels supported by processor Quad
Motherboard chipset Intel C610
Processor cache 20 MB
Processor cores 8
Processor frequency 1.7 GHz
Processor model E5-2609V4
Processor family Intel® Xeon® E5 v4
Processor manufacturer Intel
Memory
Maximum internal memory 512 GB
Memory slots 16x DIMM
ECC Yes
Memory clock speed 2400 MHz
Memory layout (slots x size) 1 x 8 GB
Internal memory type DDR4-SDRAM
Internal memory 8 GB
Storage
Optical drive type No
RAID levels 0, 1, 5, 10
RAID support Yes
Number of HDDs supported 4
HDD size 3.5"
HDD interface Serial ATA
Total storage capacity 0 GB
Maximum storage capacity 64 TB
Graphics
On-board graphics card model Not available
On-board graphics card Yes
Network
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Ports & interfaces
VGA (D-Sub) ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 5
USB 2.0 ports quantity 3
Ethernet LAN (RJ-45) ports 2
Expansion slots
PCI Express slots version 3.0
Design
Chassis type Tower (5U)
Software
Compatible operating systems Microsoft Windows ServerRed Hat Enterprise Linux (RHEL)SUSE Linux Enterprise Server (SLES)VMwareOracle Solaris
Operating system installed No
Processor special features
Intel TSX-NI Yes
Intel Enhanced Halt State Yes
Intel® Secure Key Yes
Intel® OS Guard Yes
Intel Secure Key Technology version 1.00
Intel TSX-NI version 1.00
Intel® Hyper Threading Technology (Intel® HT Technology) No
Intel® Turbo Boost Technology No
Intel® AES New Instructions (Intel® AES-NI) Yes
Processor ARK ID 92990
Intel® Identity Protection Technology (Intel® IPT) No
Intel Flex Memory Access No
Intel Demand Based Switching Yes
Intel Identity Protection Technology version 0.00
CPU configuration (max) 2
Enhanced Intel SpeedStep Technology Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Trusted Execution Technology Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel 64 Yes
Intel Virtualization Technology (VT-x) Yes
Power
Number of main power supplies 1
Power supply 550 W
Redundant power supply (RPS) support No
General
Product family ProLiant
Product series ML
Weight & dimensions
Depth 620 mm
Height 432.6 mm
Width 200 mm
