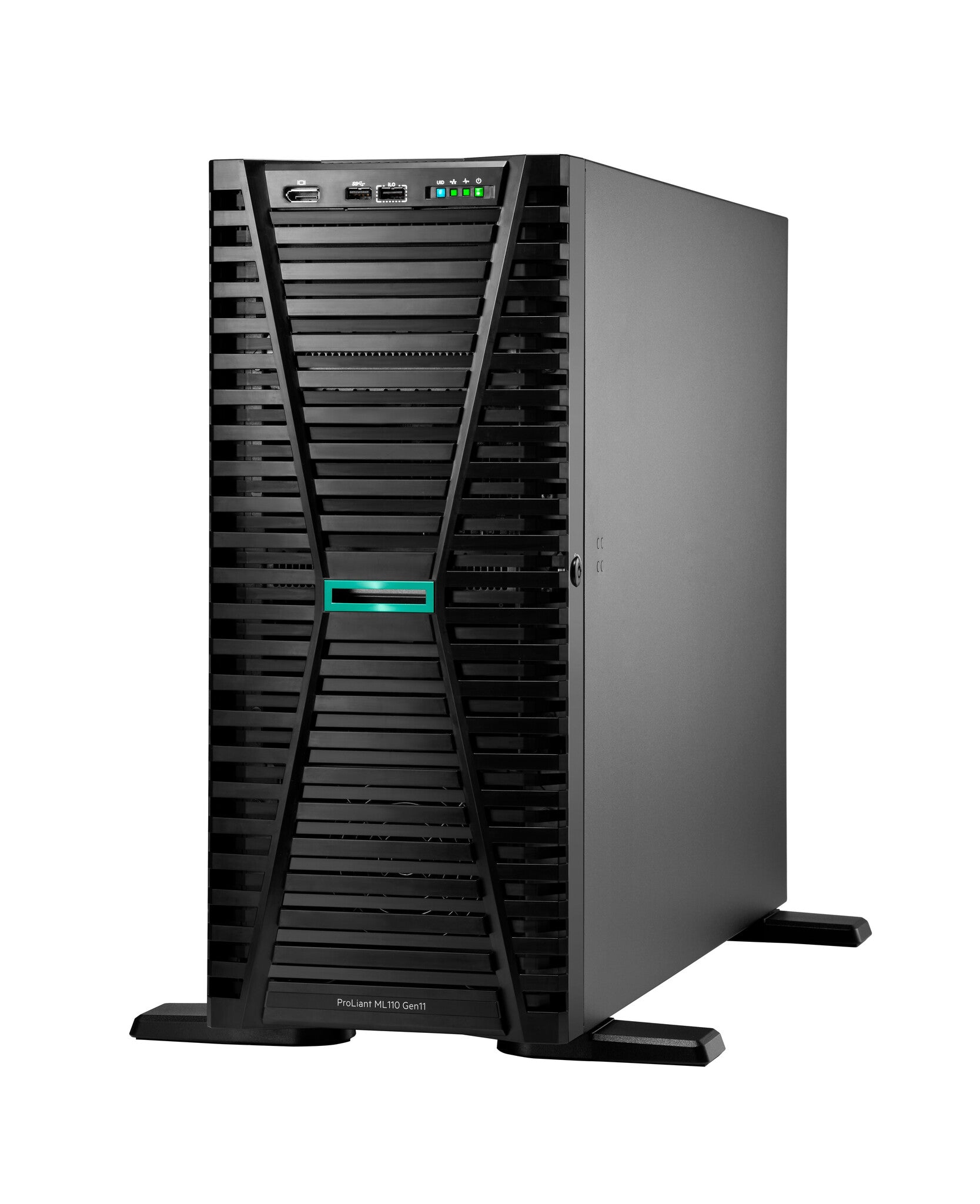

HPE ProLiant ML110 Gen11 4510 12-core 1P 64GB-R MR408i-o 8SFF 2x480GB SSD 2x1000W RPS EU Server
Couldn't load pickup availability
- Intel Xeon Silver 4510 2.4 GHz
- 64 GB 5600 MHz DDR5-SDRAM 2 x 32
- 960 GB
- Tower (4.5U) 1000 W
Are you searching for an affordable tower server with enterprise-class reliability and performance to meet the requirements of your growing business? The HPE ProLiant ML110 Gen11 server is an enhanced single processor tower with performance, expansion, and security at an affordable price. It supports the 4th and 5th Gen Intel Xeon Scalable processor, HPE DDR5 SmartMemory with a maximum capacity of 1536 GB, 4 x16 PCIe Gen5 slots, 1 x16 OCP3 slot, eight large form factor (LFF) or 16 small form factor (SFF) disk drives. It can easily be converted to a rack using 5.5U of rack space. The HPE ProLiant ML110 Gen11 server also offers optional redundant fan and redundant power supply to satisfy automatic fail-over needs, making this the ideal server for small- to mid-sized businesses, and remote and branch offices.
What is new supporting point:
Support NVIDIA RTX 4000 Ada Graphics Accelerator and L4 24GB PCIe Accelerator
Powered by 4th and 5th Gen Intel Xeon Scalable Processors that support up to 32 cores, 185W TDP.
Increased memory bandwidth to 5600 MT/s[1] , performance and lower power requirements with up to 1.5 TB DDR5 memory capacity with 16 DIMM slots.
Advanced data transfer rates from the PCIe Gen5 serial expansion bus, support up to 4 standard PCIe Gen5 x16 slots and 1 OCP 3.0 x16 slots.
Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
Supports hot-pluggable, high-availability, RAID1 protected M.2 NVMe boot option.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor model | 4510 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 4.1 GHz |
| Processor cores | 12 |
| Processor cache | 30 MB |
| Number of processors installed | 1 |
| Processor cache type | L3 |
| Memory | |
|---|---|
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory clock speed | 5600 MHz |
| Memory slots | 16x DIMM |
| Maximum internal memory | 1 TB |
| Storage | |
|---|---|
| Total storage capacity | 960 GB |
| Number of HDDs installed | 2 |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| RAID support | Yes |
| Supported RAID controllers | HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller |
| Optical drive type | No |
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Broadcom BCM5720 |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Expansion slots | Default with 2 x16 PCIe 5.0 Slots and 1 x16 OCP3 slot. |
| Expansion slots | |
|---|---|
| PCI Express x16 slots | 2 |
| Design | |
|---|---|
| Chassis type | Tower (4.5U) |
| Performance | |
|---|---|
| Management platform | Included: HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) Optional: HPE iLO Advanced, HPE OneView Advanced (require licenses) and HPE Compute Ops Management. Refer to the iLO 6 User Guide |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Power | |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply type | 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit |
| Power supply | 1000 W |
| Number of redundant power supplies installed | 1000 |
| Number of main power supplies | 2 |
| General | |
|---|---|
| Product series | ML |
| Product family | ProLiant |
| Other features | |
|---|---|
| Number of processors supported | 1 |
| Security features | UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. TPM (Trusted Platform Module) 2.0 support. Front bezel key-lock feature, Intrusion cable (Included), Padlock slot and Kensington Lock slot support. |
| Storage drive type | 2x HPE 480GB SATA 6G Read Intensive SFF BC Multi Vendor SSD |
| Standard fans | 2x Standard Fans |
