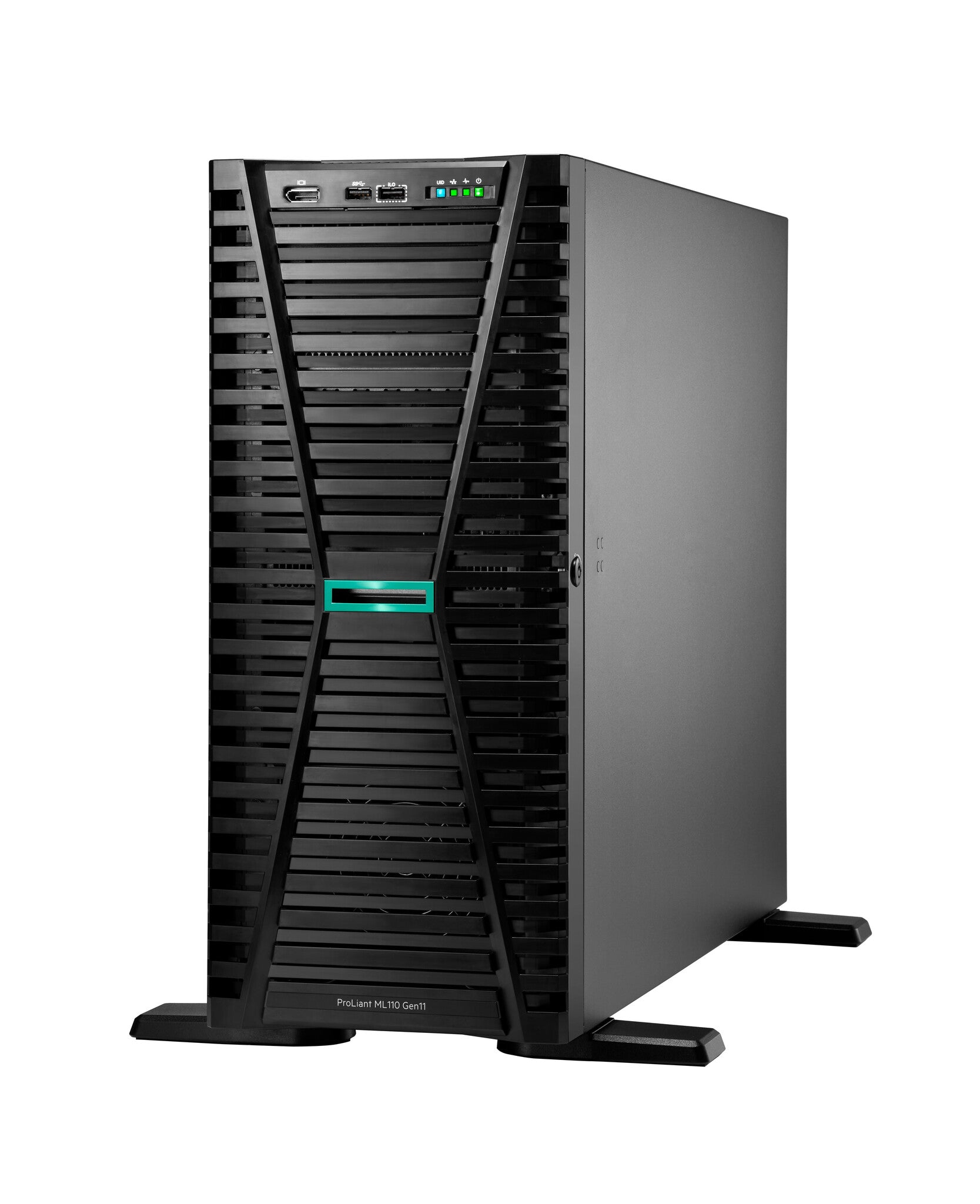

HPE ProLiant ML110 Gen11 3508U 2.1GHz 8-core 1P 32GB-R VROC 4LFF 2x2TB HDD 2x1000W RPS EU Server
Couldn't load pickup availability
- Intel Xeon Bronze 3508U 2.1 GHz
- 32 GB DDR5-SDRAM 1 x 32
- 4 TB
- Tower (4.5U) 1000 W
Are you searching for an affordable tower server with enterprise-class reliability and performance to meet the requirements of your growing business? The HPE ProLiant ML110 Gen11 server is an enhanced single processor tower with performance, expansion, and security at an affordable price. It supports the 4th and 5th Gen Intel Xeon Scalable processor, HPE DDR5 SmartMemory with a maximum capacity of 1536 GB, 4 x16 PCIe Gen5 slots, 1 x16 OCP3 slot, eight large form factor (LFF) or 16 small form factor (SFF) disk drives. It can easily be converted to a rack using 5.5U of rack space. The HPE ProLiant ML110 Gen11 server also offers optional redundant fan and redundant power supply to satisfy automatic fail-over needs, making this the ideal server for small- to mid-sized businesses, and remote and branch offices.
What is new supporting point:
Supports hot-pluggable, high-availability, RAID1 protected M.2 NVMe boot option.
Support NVIDIA RTX 4000 Ada Graphics Accelerator and L4 24GB PCIe Accelerator
Powered by 4th and 5th Gen Intel Xeon Scalable Processors that support up to 32 cores, 185W TDP.
Increased memory bandwidth to 5600 MT/s[1] , performance and lower power requirements with up to 1.5 TB DDR5 memory capacity with 16 DIMM slots.
Advanced data transfer rates from the PCIe Gen5 serial expansion bus, support up to 4 standard PCIe Gen5 x16 slots and 1 OCP 3.0 x16 slots.
Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
| Processor | |
|---|---|
| Number of processors installed | 1 |
| Motherboard chipset | Intel C741 |
| Processor cache | 22.5 MB |
| Processor cores | 8 |
| Processor boost frequency | 2.2 GHz |
| Processor frequency | 2.1 GHz |
| Processor model | 3508U |
| Processor family | Intel Xeon Bronze |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 1.5 TB |
| Memory slots | 16x DIMM |
| ECC | Yes |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Supported RAID controllers | Embedded Intel VROC SATA/NVMe |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| SSD interface | SATA III |
| Supported HDD sizes | 3.5" |
| Number of HDDs supported | 4 |
| HDD size | 3.5" |
| HDD interface | SATA III |
| HDD capacity | 2 TB |
| Number of HDDs installed | 2 |
| Total storage capacity | 4 TB |
| Maximum storage capacity | 192 TB |
| Network | |
|---|---|
| LAN controller | Broadcom BCM5720 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
|---|---|
| PCI Express x16 slots | 2 |
| Design | |
|---|---|
| Product colour | Black |
| Chassis type | Tower (4.5U) |
| Performance | |
|---|---|
| BIOS type | UEFI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Power | |
|---|---|
| Number of main power supplies | 2 |
| Number of redundant power supplies installed | 1 |
| Power supply | 1000 W |
| Redundant power supply (RPS) support | Yes |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 9144 m |
| Operating altitude | 0 - 3050 m |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | ML |
| Weight & dimensions | |
|---|---|
| Weight | 20.4 kg |
| Depth | 587 mm |
| Height | 462 mm |
| Width | 195 mm |
