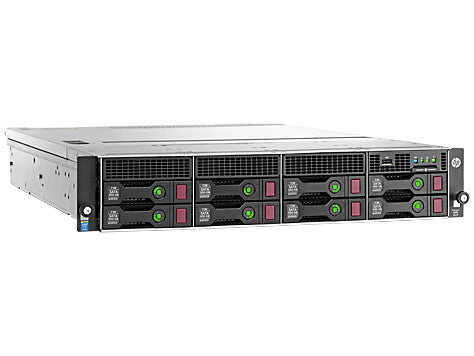

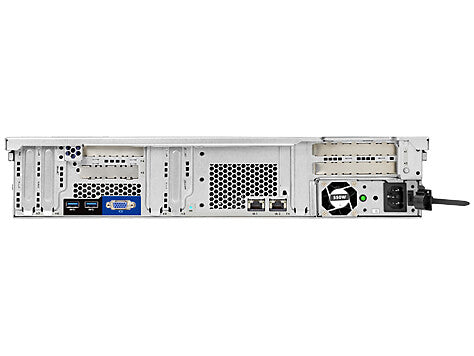

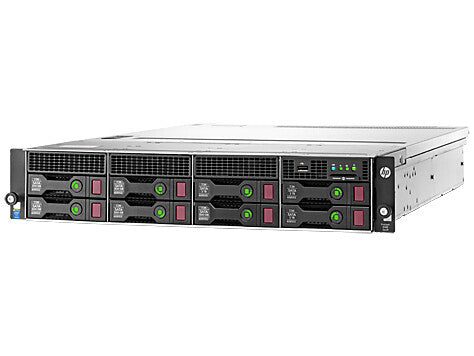

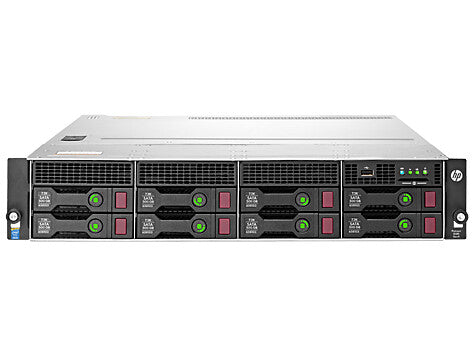

HPE ProLiant DL80 Gen9 E5-2609v4 8GB-R H240 8LFF 550W PS Base server 0 GB Rack (2U) Intel® Xeon® E5 v4 1.7 GHz DDR4-SDRAM
Couldn't load pickup availability
- Intel® Xeon® E5 v4 E5-2609V4 1.7 GHz
- 8 GB 2400 MHz DDR4-SDRAM 1 x 8
- Rack (2U) 550 W
Do you need an affordable storage server for capacity intensive applications? The HP ProLiant DL80 Gen9 Server is designed with affordable storage, networking and processor scalability, and manageability in a 2U server for cost conscious service provider and SMBs. Apart from basic IT infrastructure workloads this server is ideal for running storage capacity intensive applications like cold storage, back-up due to compelling cost/GB that it offers.
Features
Affordable Storage and IO Expandability for Service Providers and SMBs
- The HP ProLiant DL80 Gen9 Server provides ample storage capacity with up to twelve (12) Large Form Factor (LFF) HP SmartDrives, delivering optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.
- Up to six (6) PCIe 3.0 riser slots to support one single-wide GPU or networking cards offering increased IO bandwidth and seamless expandability.
- Comes standard with 2x1GbE and choice of HP FlexibleLOM to provide you flexibility of networking bandwidth and fabric so you can adapt to changing business needs.
Just Enough Performance for Basic IT Infrastructure Workloads
- The HP ProLiant DL80 Gen9 Server supports up to two (2) Intel® Xeon® processor E5-2600 v3 processors offering improved performance and efficiency.
- HP SmartMemory has the built-in intelligence to improve performance, reduce downtime and energy costs resulting in up to 14% 1 better throughput performance and up to 37% lower power consumption with DDR4 memory.
- Embedded SATA HP Dynamic Smart Array B140i Controller for boot and data. Choice of HP Smart Array Controllers with increased performance, data availability with 12 Gb/s SAS technology or HP Smart HBAs with reliable high performance SAS connectivity capable of running HBA mode or simple RAID mode.
Agile Infrastructure Management for Accelerating IT Service Delivery
- With HP ProLiant DL80 Gen9 Server, HP OneView provides converged management for automation simplicity across servers, storage and networking.
- Online personalized dashboard for converged infrastructure health monitoring and support management with HP Insight Online.
- Configure in Unified Extensible Firmware Interface (UEFI) boot mode, provision local and remote with Intelligent Provisioning and Scripting Toolkits or HP RESTful Interface Tool.
- Embedded management to deploy, monitor and support your server remotely, out of band with HP iLO.
- Optimize firmware and driver updates and reduce downtime with HP Smart Update, consisting of HP SUM and SPP.
Energy Efficiency by Design
- 80 PLUS gold certified entry-level redundant HP Power Supplies provide up to 92% efficiency which combined with HP power management features leads to reduction of power consumption and expense.
- Improved ambient temperature standard with ASHRAE A3 2 helps customers reduce cooling expense.
| Processor | |
|---|---|
| Conflict-Free processor | Yes |
| Stepping | R0 |
| Thermal Monitoring Technologies | Yes |
| Processor code | SR2P1 |
| Maximum internal memory supported by processor | 1.54 TB |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 14 nm |
| Processor threads | 8 |
| Processor operating modes | 64-bit |
| Processor codename | Broadwell |
| Tcase | 74 °C |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866 MHz |
| Maximum number of PCI Express lanes | 40 |
| Processor package size | 45 x 52.5 mm |
| Supported instruction sets | AVX 2.0 |
| Scalability | 2S |
| Embedded options available | Yes |
| PCI Express configurations | 1x4, 1x8, 1x16 |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 59.7 GB/s |
| ECC supported by processor | Yes |
| Physical Address Extension (PAE) | Yes |
| Processor series | Intel Xeon E5-2600 v4 |
| Bus type | QPI |
| System bus rate | 6.4 GT/s |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 85 W |
| Number of processors installed | 1 |
| Memory channels supported by processor | Quad |
| Motherboard chipset | Intel C610 |
| Processor cache | 20 MB |
| Processor cores | 8 |
| Processor frequency | 1.7 GHz |
| Processor model | E5-2609V4 |
| Processor family | Intel® Xeon® E5 v4 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 256 GB |
| Memory slots | 8x DIMM |
| ECC | Yes |
| Memory clock speed | 2400 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| RAID levels | 0, 1, 5 |
| RAID support | Yes |
| Number of HDDs supported | 8 |
| HDD size | 3.5" |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 32 TB |
| Graphics | |
|---|---|
| On-board graphics card model | Not available |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Chassis type | Rack (2U) |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows ServerRed Hat Enterprise Linux (RHEL)SUSE Linux Enterprise Server (SLES)Oracle SolarisVMware |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 92990 |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel Flex Memory Access | No |
| Intel Demand Based Switching | Yes |
| Intel Identity Protection Technology version | 0.00 |
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Power supply | 550 W |
| Redundant power supply (RPS) support | No |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Depth | 634.3 mm |
| Height | 87.6 mm |
| Width | 434.7 mm |
| Other features | |
|---|---|
| Graphics card | G200eH2 |
| Graphics card family | Matrox |
