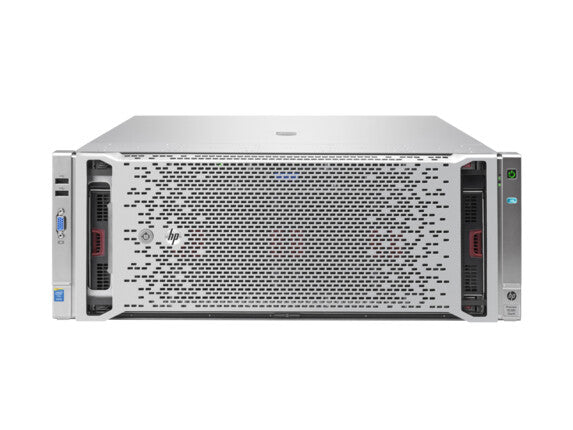

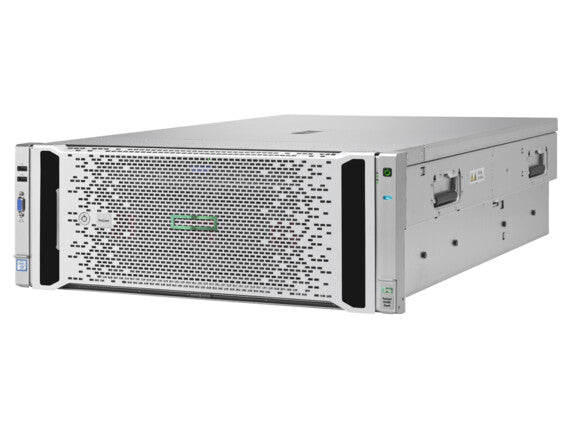

HPE ProLiant DL580 server 0 GB Rack (4U) Intel® Xeon® E7 v3 E7-4850V3 2.2 GHz 128 GB DDR4-SDRAM 4800 W
Couldn't load pickup availability
- Intel® Xeon® E7 v3 E7-4850V3 2.2 GHz
- 128 GB DDR4-SDRAM 8 x 16
- Rack (4U) 4800 W
Does your business demand fast insights, support for increased number of users and uncompromised availability?
The HP ProLiant DL580 Gen9 Server is the HP four socket (4S) enterprise standard x86 server offering commanding performance, rock-solid reliability and availability, and compelling consolidation and virtualization efficiencies.
Supporting Intel® Xeon® E7-4800/8800 v3 processors, the DL580 Gen9 Server offers enhanced processor performance, up to 6 TBs of memory, greater IO bandwidth (9 PCIe Gen 3.0 slots), and 12 Gb/s of SAS speeds. The DL580 Gen9 Server has security and data protection features for system resiliency that your business can depend on. All, making it ideal for mission-critical enterprise, business intelligence, and database applications.
Whether needed for highly virtualized or cloud based deployments, with intelligence and simplicity of automated management with HP OneView and HP iLO 4 your business can achieve agile and lower cost infrastructure management.
| Processor | |
|---|---|
| Conflict-Free processor | Yes |
| Stepping | E0 |
| Thermal Monitoring Technologies | Yes |
| Processor code | SR221 |
| Maximum internal memory supported by processor | 1.53 TB |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor socket | LGA 2011 (Socket R) |
| Processor lithography | 22 nm |
| Processor threads | 28 |
| Processor operating modes | 64-bit |
| Processor codename | Haswell |
| Tcase | 70 °C |
| Memory types supported by processor | DDR4-SDRAM, DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1800,1066 MHz |
| Maximum number of PCI Express lanes | 32 |
| Processor package size | 52 x 45 mm |
| Supported instruction sets | AVX 2.0 |
| Scalability | S4S |
| Embedded options available | No |
| PCI Express configurations | x4, x8, x16 |
| Number of QPI links | 3 |
| Memory bandwidth supported by processor (max) | 102 GB/s |
| ECC supported by processor | Yes |
| Physical Address Extension (PAE) | Yes |
| Processor series | Intel Xeon E7-4800 v3 |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 8 GT/s |
| Processor cache type | Last Level Cache |
| Thermal Design Power (TDP) | 115 W |
| Memory channels supported by processor | Quad |
| Processor cache | 35 MB |
| Processor cores | 14 |
| Processor boost frequency | 2.8 GHz |
| Processor frequency | 2.2 GHz |
| Processor model | E7-4850V3 |
| Processor family | Intel® Xeon® E7 v3 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory slots | 48x DIMM |
| Memory layout (slots x size) | 8 x 16 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 128 GB |
| Storage | |
|---|---|
| Supported storage drive interfaces | SAS |
| Optical drive type | No |
| Total storage capacity | 0 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Chassis type | Rack (4U) |
| Processor special features | |
|---|---|
| Intel TSX-NI | Yes |
| Intel Clear Video Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Insider™ | No |
| Intel Dual Display Capable Technology | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel® Smart Cache | No |
| Intel HD Graphics | No |
| Intel Instruction Replay Technology | No |
| Intel Instruction Replay Technology version | 0.00 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 84679 |
| Intel® Quick Sync Video Technology | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel Flex Memory Access | No |
| Intel Demand Based Switching | No |
| CPU configuration (max) | 4 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Power | |
|---|---|
| Number of main power supplies | 4 |
| Power supply | 4800 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Weight | 52.8 kg |
| Depth | 736 mm |
| Height | 175 mm |
| Width | 444 mm |
