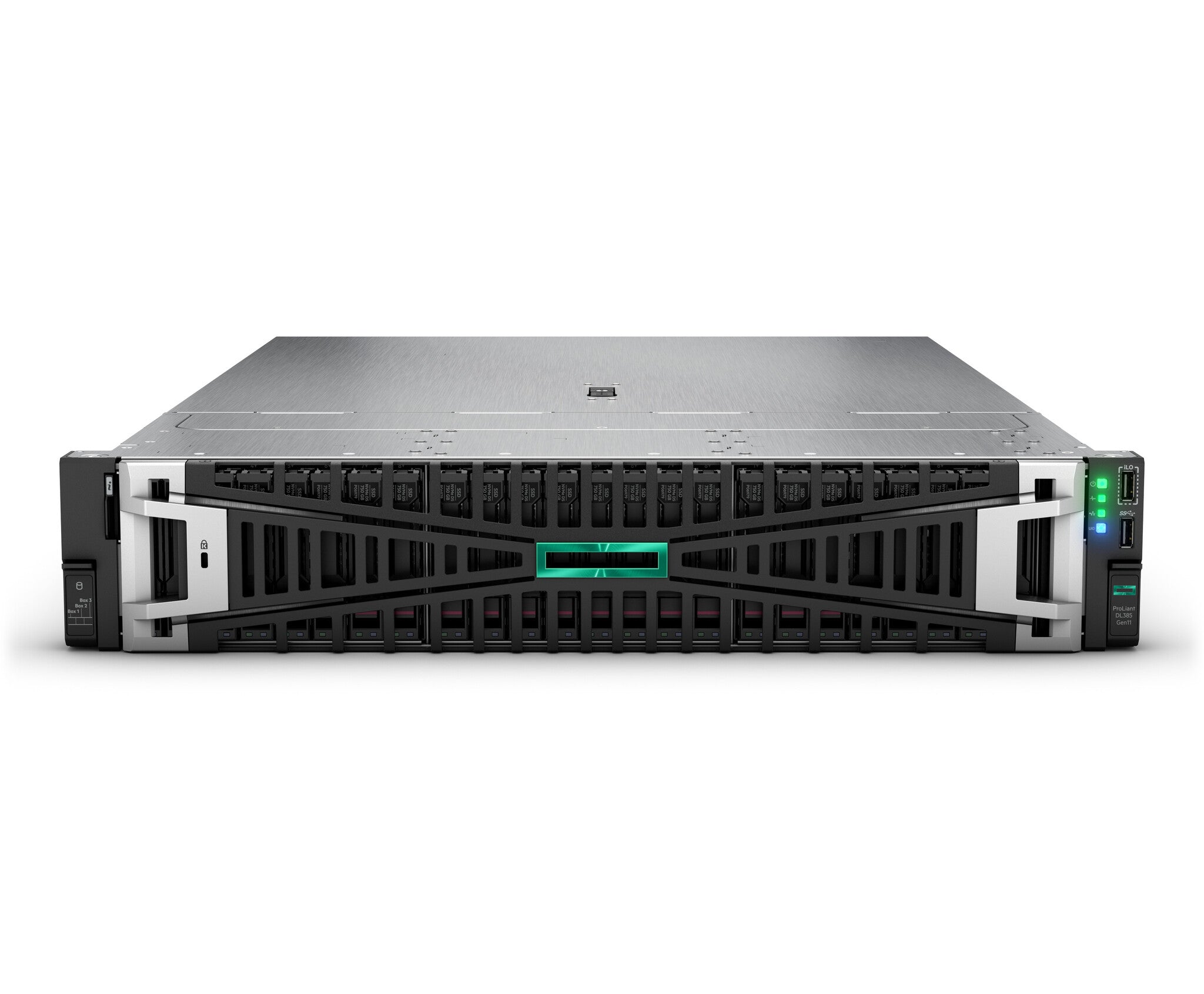

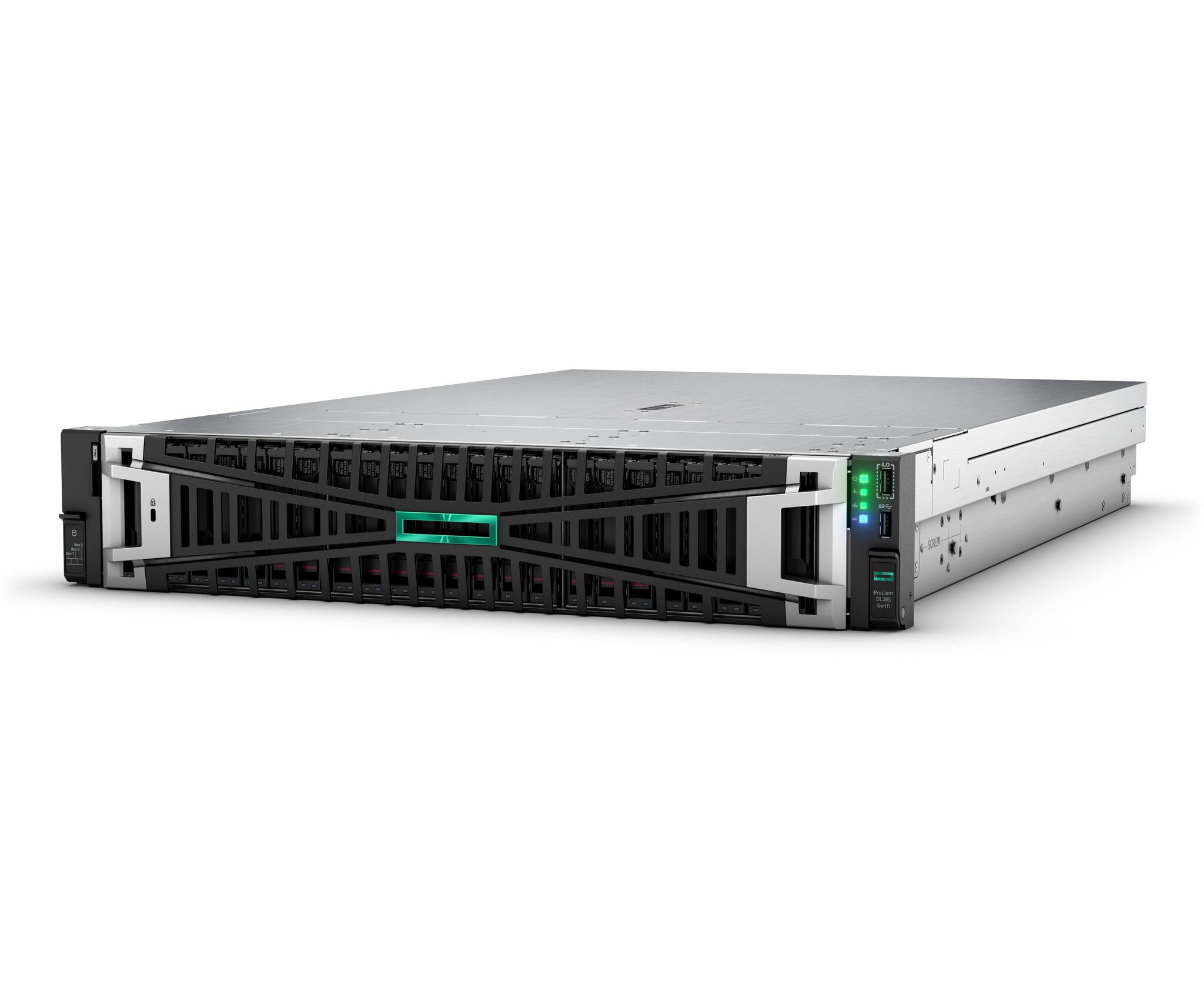

HPE ProLiant DL385 Gen11 9224 2.5GHz 24-core 1P 32GB-R 8SFF 1000W PS EU Server
Couldn't load pickup availability
- AMD EPYC 9224 2.5 GHz
- 32 GB 4800 MHz DDR5-SDRAM 1 x 32
- Rack (2U) 1000 W
Are you looking for an accelerator-optimized performance solution to run your AI or Big Data analytics workloads? The HPE ProLiant DL385 Gen11 server is a 2U 2P solution that delivers exceptional compute performance, upgraded high-speed data transfer rate and memory depth at 2P compute capability. Powered by 4th & 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with up to 160 cores, increased memory bandwidth and capacity, high-speed PCIe Gen5 I/O, enhanced GPU support, and EDSFF storage, the HPE ProLiant DL385 Gen11 server is a superb accelerator-optimized 2U 2P solution. Enhanced security features with the silicon root of trust from HPE are built into the firmware, creating a digital fingerprint for the AMD Secure Processor to validate safe operation prior to boot. HPE ProLiant DL385 Gen11 server is an excellent choice for compute and data storage demanding workloads requiring increased core count, and storage and I/O scalability.
What is new supporting point:
Powered by the 4th & 5th Generation AMD EPYC™ 9004 & 9005 Series Processors with 5nm technology that supports up to 160 cores at 400W, 1152 MB L3 Cache, and 24 DIMMs for DDR5 memory up to 6400 MT/s.
12 DIMM channels per processor for up to 6 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and two OCP slots.
Includes HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly from anywhere.
Supports hot-pluggable, high-availability RAID M.2 boot options.
PCIe Gen5 EDSFF support and up to 8x single-wide and 4x double-wide GPU support.
| Processor | |
|---|---|
| Maximum number of SMP processors | 2 |
| Number of processors installed | 1 |
| Motherboard chipset | AMD SoC |
| Processor cache | 64 MB |
| Processor cores | 24 |
| Processor boost frequency | 3.7 GHz |
| Processor frequency | 2.5 GHz |
| Processor model | 9224 |
| Processor family | AMD EPYC |
| Processor manufacturer | AMD |
| Memory | |
|---|---|
| Maximum internal memory | 6.14 TB |
| Memory slots | 24x DIMM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Hot-Plug support | Yes |
| Supported RAID controllers | None |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| RAID support | Yes |
| Number of SSDs supported | 8 |
| Supported SSD sizes | 2.5" |
| SSD interface | PCI Express 4.0 |
| Supported HDD sizes | 2.5" |
| Number of HDDs supported | 8 |
| HDD interface | SATA, Serial Attached SCSI (SAS) |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 261.12 TB |
| Graphics | |
|---|---|
| Maximum graphics card memory | 16 MB |
| On-board graphics card | Yes |
| Network | |
|---|---|
| LAN controller | Broadcom 57416 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Remote administration | iLO 6 ASIC |
| Software | |
|---|---|
| Compatible operating systems | Windows Server 2019Windows Server 2022Red Hat Enterprise Linux (RHEL) 8.6Red Hat Enterprise Linux (RHEL) 9.0SUSE Linux Enterprise Server (SLES) 15 SP4VMware ESXi 7.0 U3VMware ESXi 8.0 |
| Operating system installed | No |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Number of redundant power supplies installed | 1 |
| Number of redundant power supplies supported | 2 |
| Power supply | 1000 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Depth | 917.7 mm |
| Height | 87.5 mm |
| Width | 434.7 mm |
