HPE ProLiant DL380 Gen9 server 0 GB Rack (2U) Intel Xeon E5 v3 E5-2609V3 1.9 GHz 8 GB DDR4-SDRAM 500 W
Couldn't load pickup availability
- Intel Xeon E5 v3 E5-2609V3 1.9 GHz
- 8 GB 2133 MHz DDR4-SDRAM 1 x 8
- Rack (2U) 500 W

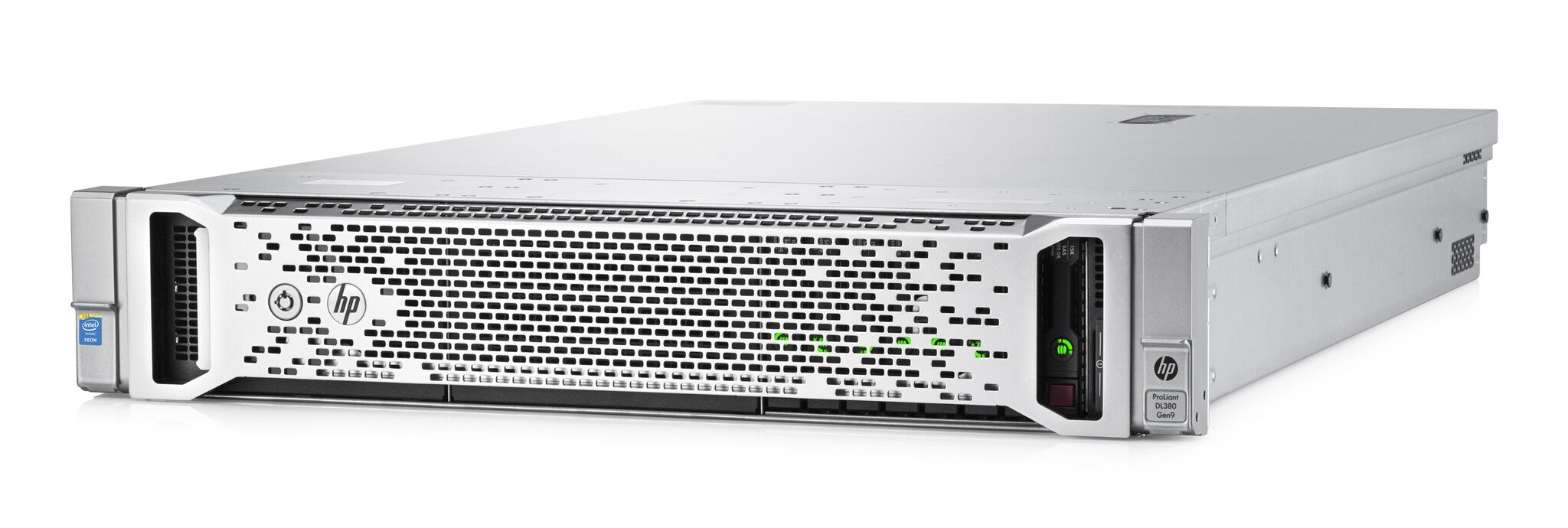

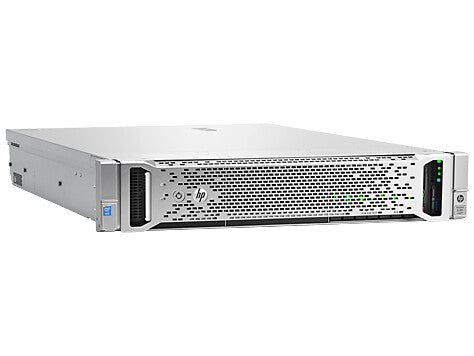

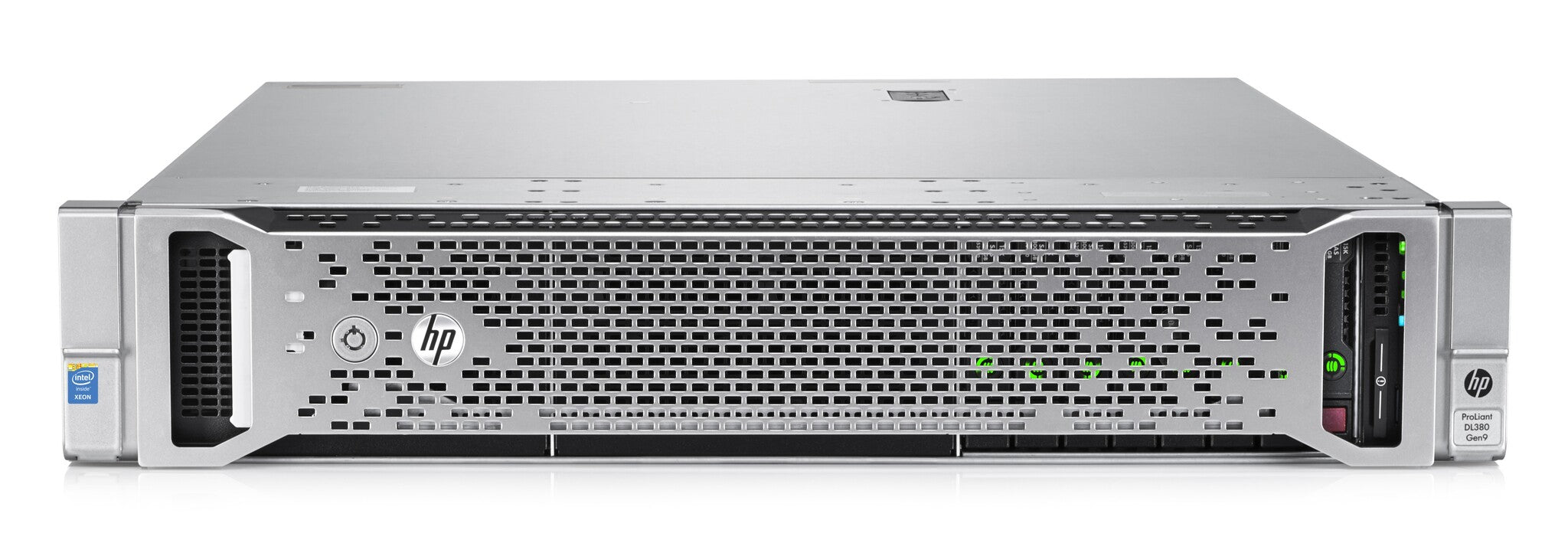

What is your server bottleneck...storage, processing, expansion? The world’s best-selling server just got better. The HP ProLiant DL380 Gen9 Server delivers the latest performance and expandability in the HP 2P rack portfolio.
Reliability, serviceability and near continuous availability, backed by a comprehensive warranty, making it ideal for any server environment. Deploy the data center standard. Designed to reduce costs and complexity, leveraging Intel’s latest E5-2600 v3 processors with up to 70% performance gain, plus the latest HP DDR4 SmartMemory offering up to 14% [3] performance increase.
Additional support for 12 Gb/s SAS, 10GbE NIC with a broad range of graphics and compute options. Manage the DL380 Gen9 Server in any IT environments by automating the most essential server lifecycle management tasks: deploy, update, monitor, and maintain with ease.
Run everything from the most basic to mission critical applications, and can be deployed with confidence.
Features
Flexible Design Makes Your Investment "Future Proof" So It Can Grow as Your Business Needs Expand

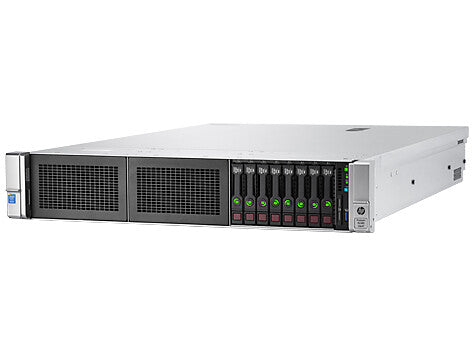

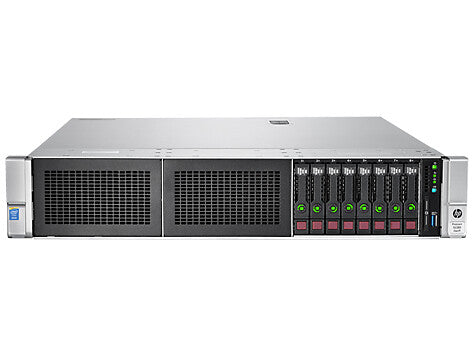

- The HP ProLiant DL380 Gen9 Server has a flexible redesigned chassis, including new HP Universal Media Bay configuration options with 8 to 24 Small Form Factor (SFF) and 4 or 12 Large Form Factor (LFF) drive options; with additional rear drive support for expandability and investment protection.
- The redesigned HP Flexible Smart Array and HP Smart SAS HBA Controllers allow you the flexibility to choose the optimal 12 Gb/s controller most suited to your environment. In conjunction with the embedded SATA HP Dynamic Smart Array B140i Controller for boot, data and media needs.
- You have a choice of embedded 4x1GbE, HP FlexibleLOM or PCIe standup 1GbE or 10GbE Adapters provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
World-class Performance and Industry-leading Energy Efficiency
- The HP ProLiant DL380 Gen9 Server supports industry standard Intel E5-2600v3 processors with up to 18 cores, 12G SAS and HP DDR4 Smart Memory.
- High efficiency redundant HP Flexible Slot Power Supplies provide up to 94% efficiency (Platinum Plus) and support for the HP Power Discovery Services offering.
- ENERGY STAR® qualified server configurations illustrate a continued commitment to helping customers conserve energy and save money.
- Improved ambient temperature standard with ASHRAE A3 and A4 4 helps you reduce cooling costs.
- Enhanced performance with active and passive, double-wide GPU support for workload acceleration.
Agile Infrastructure Management for Accelerating IT Service Delivery
- With HP DL380 Server, HP OneView provides converged management for automation simplicity across servers, storage and networking.
- Online personalized dashboard for converged infrastructure health monitoring and support management with HP Insight Online.
- Configure in Unified Extensible Firmware Interface (UEFI) boot mode, provision local and remote with Intelligent Provisioning and Scripting Toolkits.
- Embedded management to deploy, monitor and support your server remotely, out of band with HP iLO.
- Optimize firmware and driver updates and reduce downtime with HP Smart Update, consisting of HP SUM and HP SPP.
| Processor | |
|---|---|
| Conflict-Free processor | No |
| Stepping | M1 |
| Thermal Monitoring Technologies | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 22 nm |
| Processor threads | 6 |
| Processor operating modes | 64-bit |
| Processor codename | Haswell |
| Tcase | 70.9 °C |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Maximum number of PCI Express lanes | 40 |
| Processor package size | 52.5 x 45 mm |
| Supported instruction sets | AVX 2.0 |
| Scalability | 2S |
| Embedded options available | Yes |
| Maximum number of SMP processors | 2 |
| PCI Express configurations | x4, x8, x16 |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 51 GB/s |
| ECC supported by processor | Yes |
| Physical Address Extension (PAE) | Yes |
| Processor series | Intel Xeon E5-2600 v3 |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 6.4 GT/s |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 85 W |
| Number of processors installed | 1 |
| Memory channels supported by processor | Quad |
| Motherboard chipset | Intel C610 |
| Processor cache | 15 MB |
| Processor cores | 6 |
| Processor frequency | 1.9 GHz |
| Processor model | E5-2609V3 |
| Processor family | Intel Xeon E5 v3 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 384 GB |
| Memory slots | 24x DIMM |
| ECC | Yes |
| Memory clock speed | 2133 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| Number of HDDs supported | 8 |
| HDD size | 2.5" |
| HDD interface | Serial ATA |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 52 TB |
| Network | |
|---|---|
| LAN controller | HP 331i |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 4 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Chassis type | Rack (2U) |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows ServerCanonical UbuntuRed Hat Enterprise Linux (RHEL)SUSE Linux Enterprise Server (SLES)Oracle SolarisVMwareCitrix XenServer |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | No |
| Intel Clear Video Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Insider™ | No |
| Intel Dual Display Capable Technology | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel® Smart Cache | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 81897 |
| Intel® Quick Sync Video Technology | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel Flex Memory Access | No |
| Intel Demand Based Switching | Yes |
| Intel Identity Protection Technology version | 0.00 |
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Power | |
|---|---|
| Number of redundant power supplies installed | 1 |
| Number of redundant power supplies supported | 2 |
| Power supply | 500 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Weight | 14.8 kg |
| Depth | 730.2 mm |
| Height | 87.3 mm |
| Width | 445.4 mm |
| Other features | |
|---|---|
| Graphics card | G200eH2 |
| Graphics card family | Matrox |
