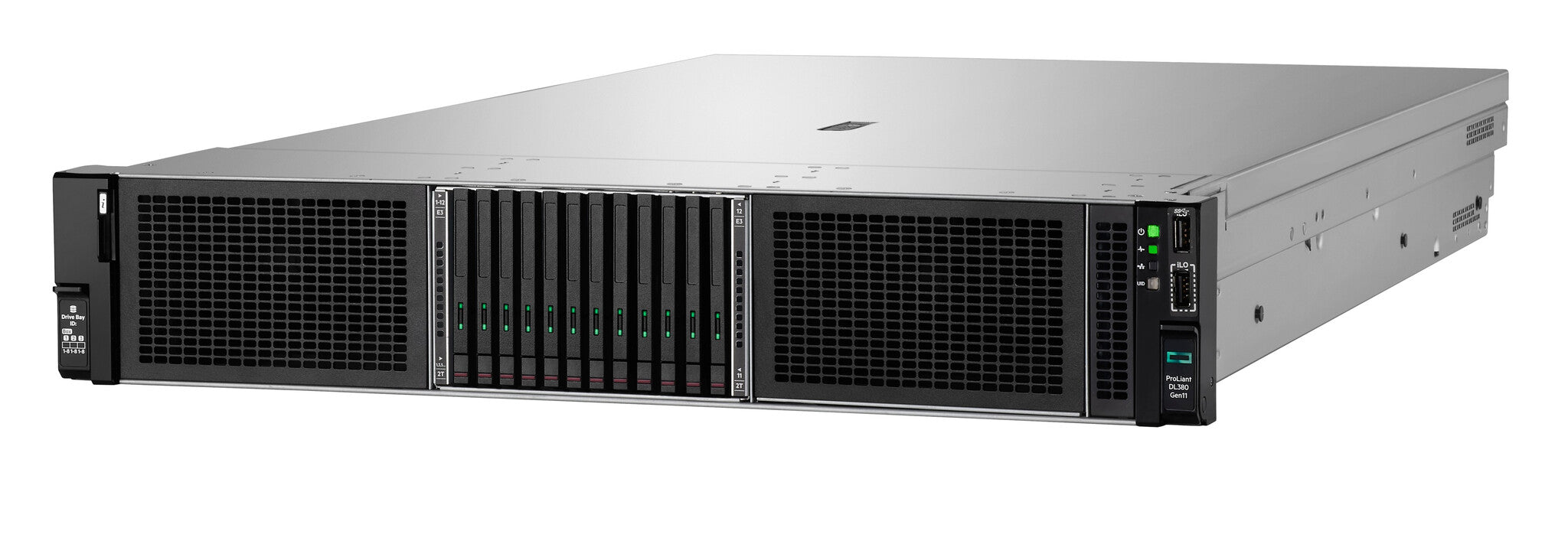

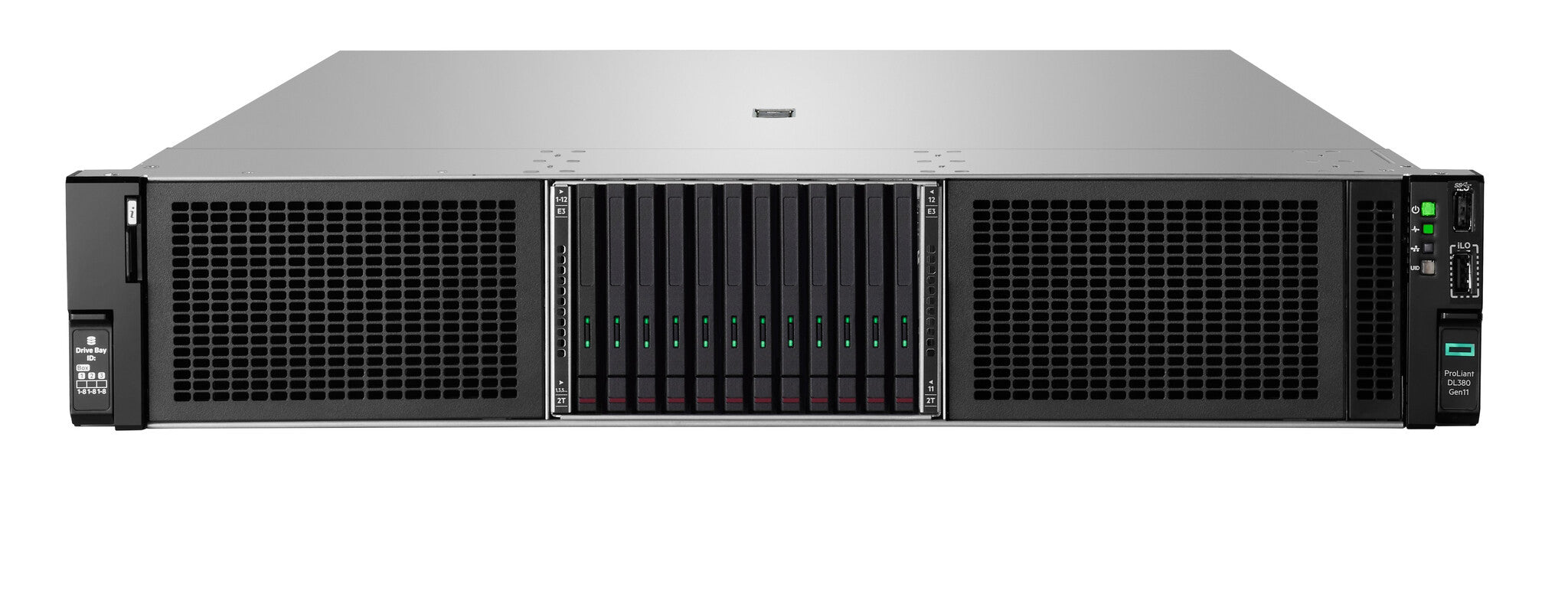

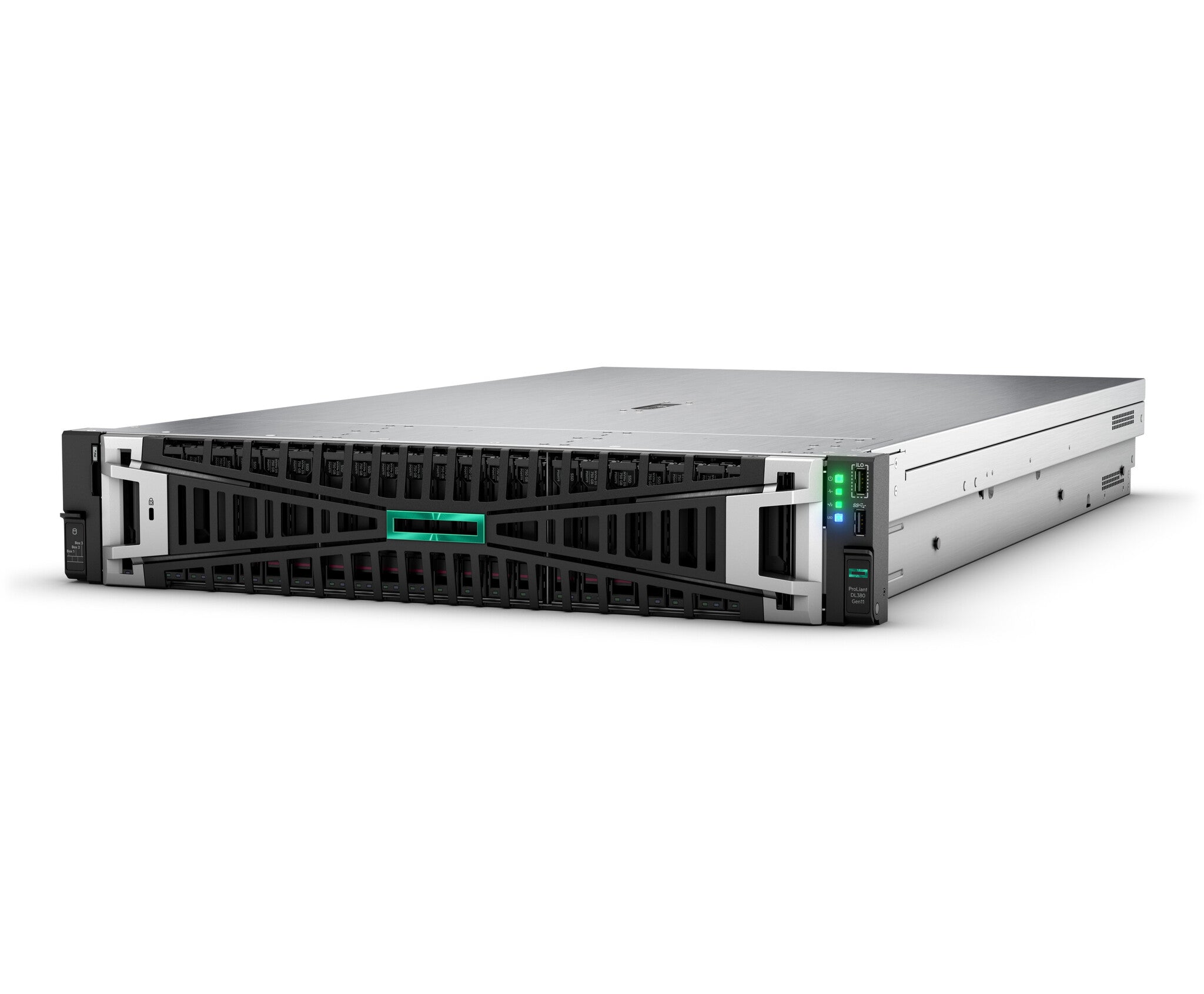

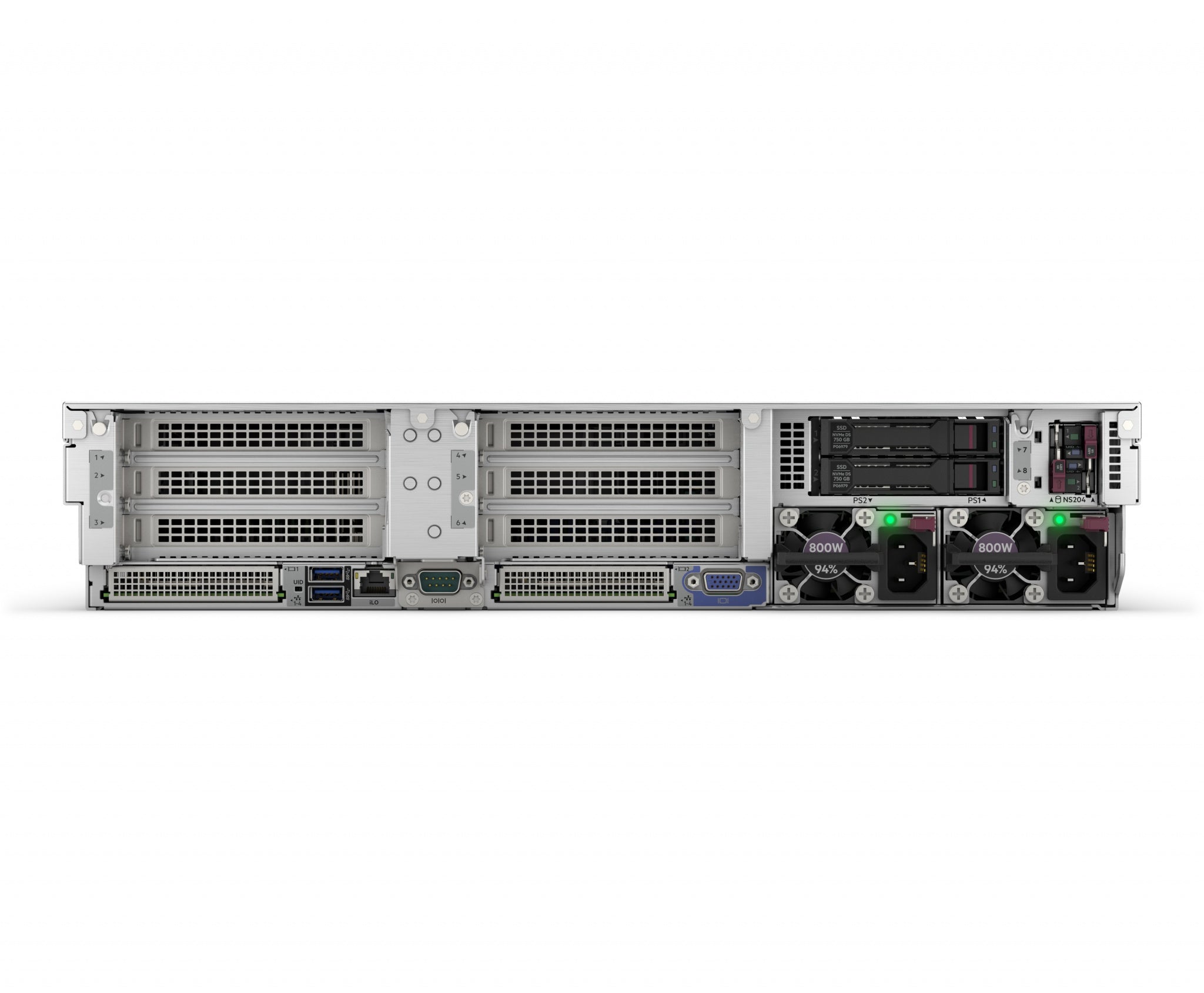

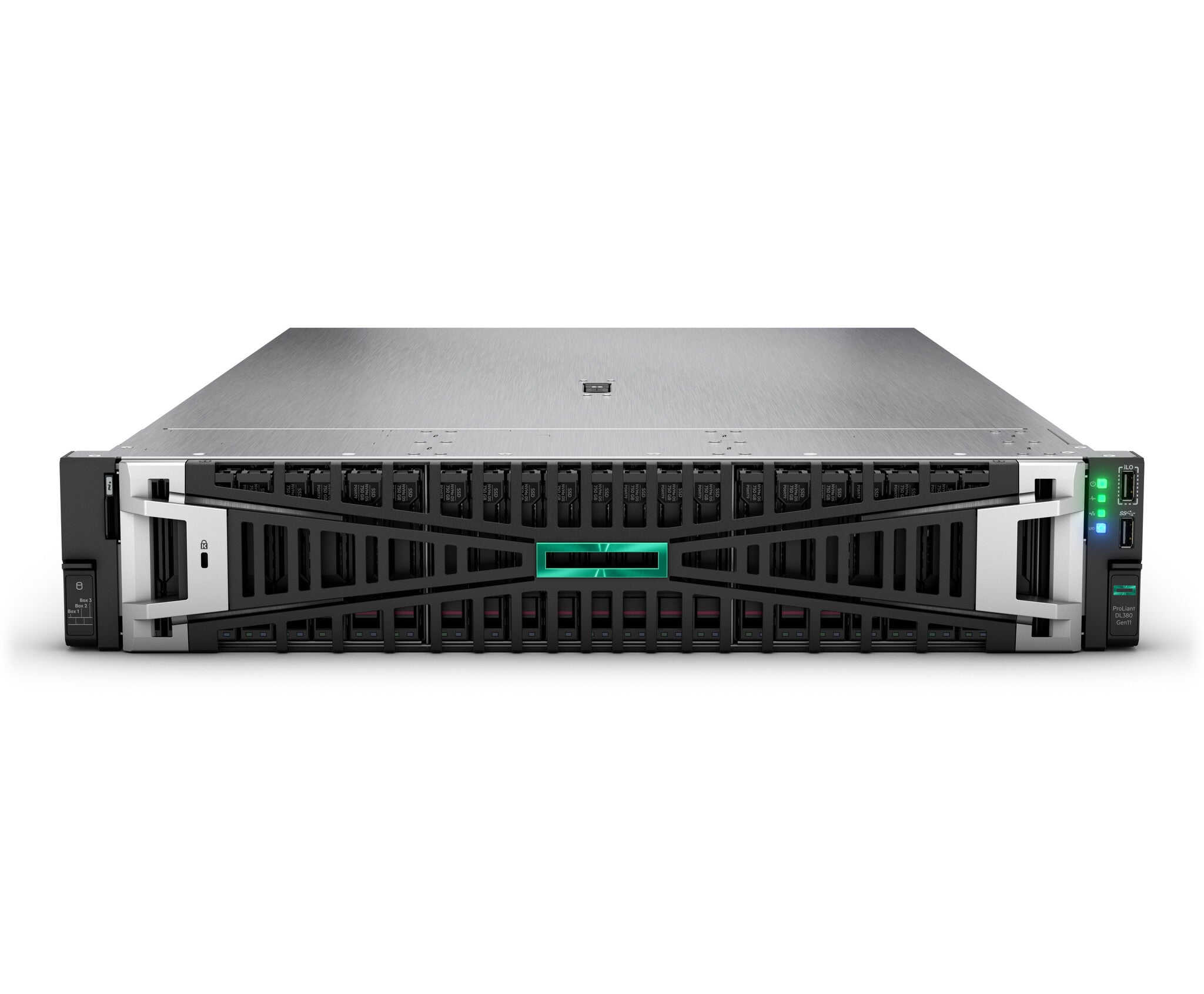

HPE ProLiant DL380 Gen11 6426Y 2.5GHz 16-core 1P 32GB-R MR408i-o NC 8SFF 800W PS Server
Couldn't load pickup availability
- Intel® Xeon® Gold 6426Y 2.5 GHz
- 32 GB 4800 MHz DDR5-SDRAM 1 x 32
- Rack (2U) 800 W
Are you looking for a dual-socket scalable server solution to power data analytics or hybrid cloud workloads? The HPE ProLiant DL380 Gen11 server is a scalable 2U 2P solution that delivers exceptional compute performance, memory density with scalability and high-speed data transfer rate to run your most demanding applications. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 64 cores, 8 TB of memory, and 20 EDSFF drive as well as increased memory bandwidth and high-speed PCIe Gen5 I/O, the HPE ProLiant DL380 Gen11 server is a perfect solution for software-defined storage, video transcoding, and virtualized apps. The HPE ProLiant DL380 Gen11 server is engineered to optimize IT with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.
What is new supporting point:
Powered by the 4th and 5th Gen Intel Xeon Scalable Processors with next-generation technology that support up to 64 cores at 350W and 16 DIMMs for DDR5 memory at speeds up to 5600 MHz.
Support for up to 8 TB total DDR5 memory with 16 DIMM channels per processor delivers increased performance, lower power requirements, and High Bandwidth Memory (HBM) support.
Support for PCIe Gen5, resulting in improved bandwidth, advanced data transfer rates, and higher network speeds from the PCIe Gen5 serial expansion bus.
Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
Supports hot-pluggable, high-availability RAID M.2 boot options.
Supports up to 8 single wide (SW) or 3 double wide (DW) GPUs to accelerate graphic intense workloads.
| Processor | |
|---|---|
| Maximum number of SMP processors | 2 |
| Number of processors installed | 1 |
| Motherboard chipset | Intel C741 |
| Processor cache | 37.5 MB |
| Processor cores | 16 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 2.5 GHz |
| Processor model | 6426Y |
| Processor family | Intel® Xeon® Gold |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 8.19 TB |
| Memory slots | 32x DIMM |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Hot-Plug support | Yes |
| Supported RAID controllers | None |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| RAID support | Yes |
| Supported SSD sizes | 2.5" |
| SSD interface | PCI Express 4.0 |
| Supported HDD sizes | 2.5" |
| Number of HDDs supported | 8 |
| HDD interface | SATA, Serial Attached SCSI (SAS) |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 91.2 TB |
| Graphics | |
|---|---|
| Maximum graphics card memory | 16 MB |
| On-board graphics card | Yes |
| Network | |
|---|---|
| LAN controller | Broadcom 57416 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Remote administration | iLO 6 ASIC |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows ServerVMware ESXiRed Hat Enterprise Linux (RHEL)SUSE Linux Enterprise Server (SLES)Canonical UbuntuOracle Linux and Oracle VMCitrix |
| Operating system installed | No |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Number of redundant power supplies installed | 1 |
| Number of redundant power supplies supported | 2 |
| Power supply | 800 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Depth | 727 mm |
| Height | 87.5 mm |
| Width | 448 mm |
