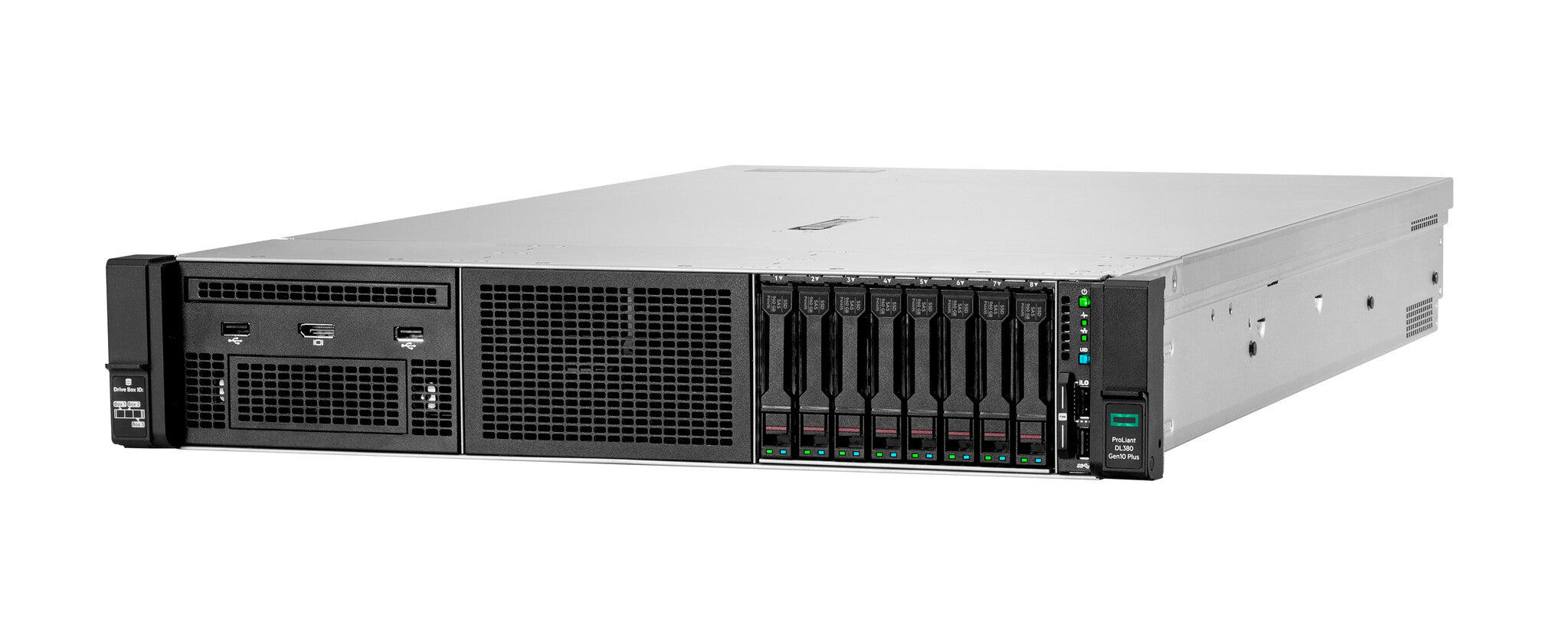

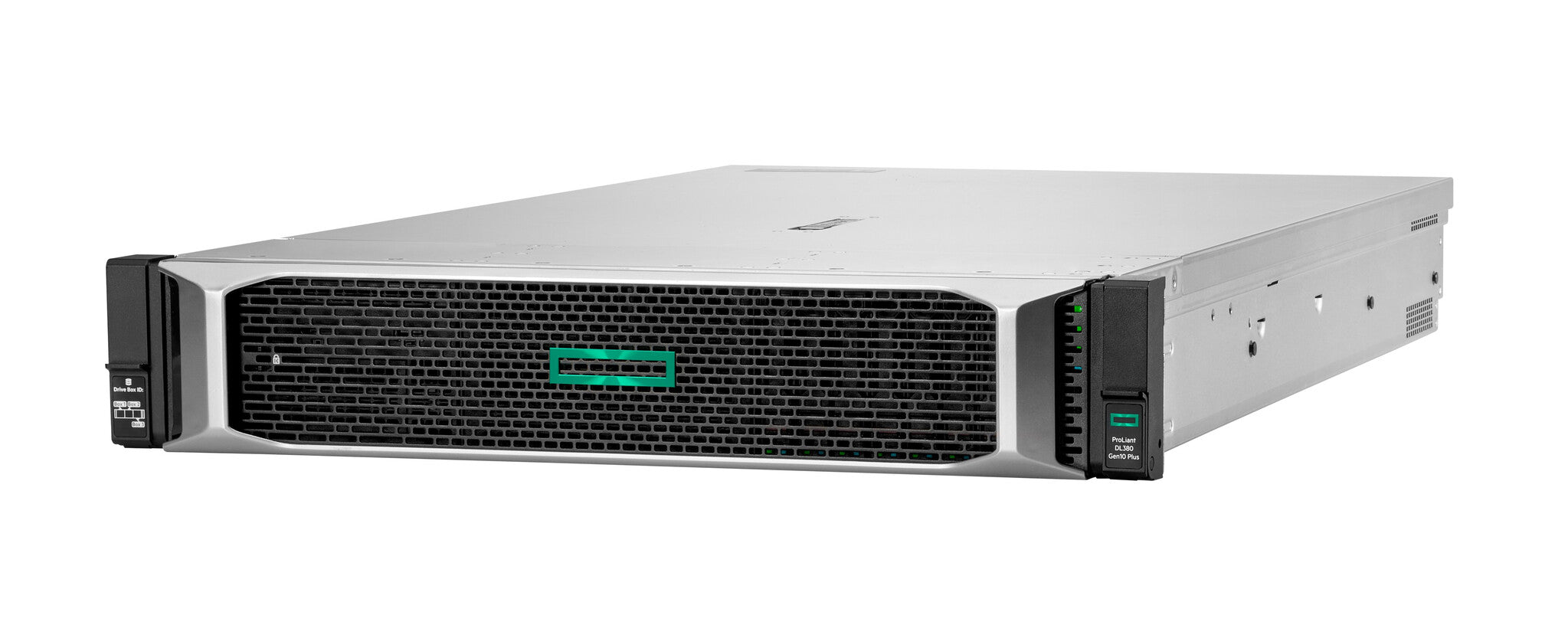

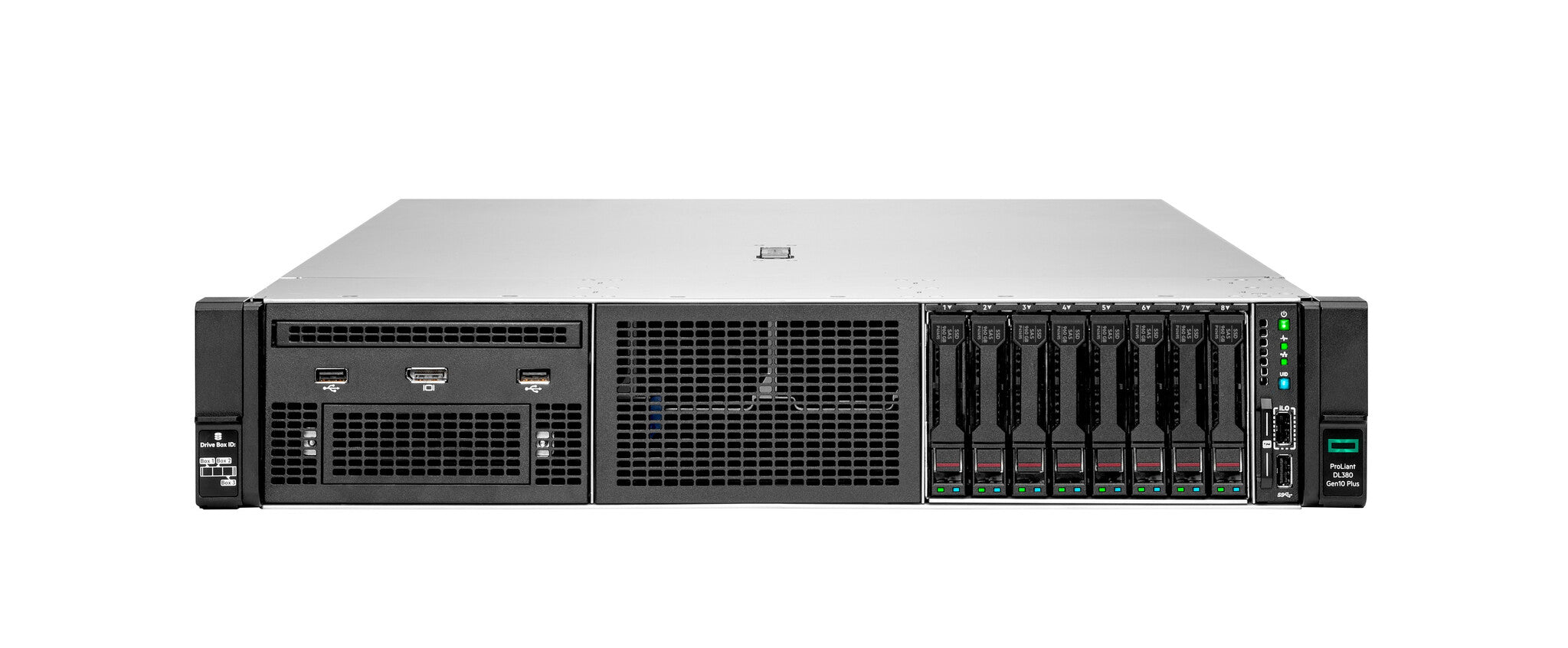

HPE ProLiant DL380 Gen10 Plus 4309Y 2.8GHz 8-core 1P 32GB-R S100i NC 8SFF 800W PS Server
Couldn't load pickup availability
- Intel Xeon Silver 4309Y 2.8 GHz
- 32 GB 3200 MHz DDR4-SDRAM 1 x 32
- Rack (2U) 800 W
Do your servers need increased performance in storage, compute, or expansion? The HPE ProLiant DL380 Gen10 Plus server is adaptable for diverse workloads and environments, providing you with the right balance of expandability and scalability. Designed for supreme versatility and resiliency, this 2U/2P platform is capable for deployment in multiple environments, built on 3rd Generation Intel Xeon Scalable Processors, and backed by a comprehensive warranty. Equipped with PCIe Gen4 capabilities, the HPE ProLiant DL380 Gen10 Plus server offers improved data transfer rates and higher networking speeds.
What is new supporting point:
Supports 3rd Generation Intel Xeon Scalable Processors.
Support for industry-standard OCP 3.0 Network Adapters.
Support for Trimodal (NVMe/SAS/SATA) HPE Smart Array controllers.
Support for PCIe Gen4, resulting in improved bandwidth and throughput.
| Processor | |
|---|---|
| Number of processors installed | 1 |
| Processor cache | 12 MB |
| Processor cores | 8 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 2.8 GHz |
| Processor model | 4309Y |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 1.54 TB |
| Memory slots | 24x DIMM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Hot-swap | Yes |
| Supported RAID controllers | None |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| SSD interface | PCI Express 4.0 |
| Number of HDDs supported | 8 |
| Total storage capacity | 0 GB |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Product colour | Silver |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
|---|---|
| Compatible operating systems | Windows Server 2022: Essentials, Standard, DatacenterWindows Server 2019: Essentials, Standard, DatacenterWindows Server 2016: Essentials, Standard, DatacenterWindows Server 2012 R2: Essentials, Standard, DatacenterMicrosoft Hyper-V Server: 2012 R2, 2016 & 2019VMware vSphere 6.0 U3, 6.5 U2 through U.3 & 6.7 U1 through U3, 7.0 Notes: 6.5 U3, 6.7 U3 & 7.0 minimums for Xeon “R”, Gold 6256, Gold 6250L & Gold 6250 processors.ClearOS: 7.6; ClearVM: 2.0Red Hat Enterprise Linux (RHEL) 7.6 w/ Kbase, 8.0SUSE Linux Enterprise Server (SLES) 12 SP3, 15 (includes Xen) |
| Operating system installed | No |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Power supply | 800 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Weight | 14.8 kg |
| Depth | 445.4 mm |
| Height | 87.3 mm |
| Width | 87.5 mm |
