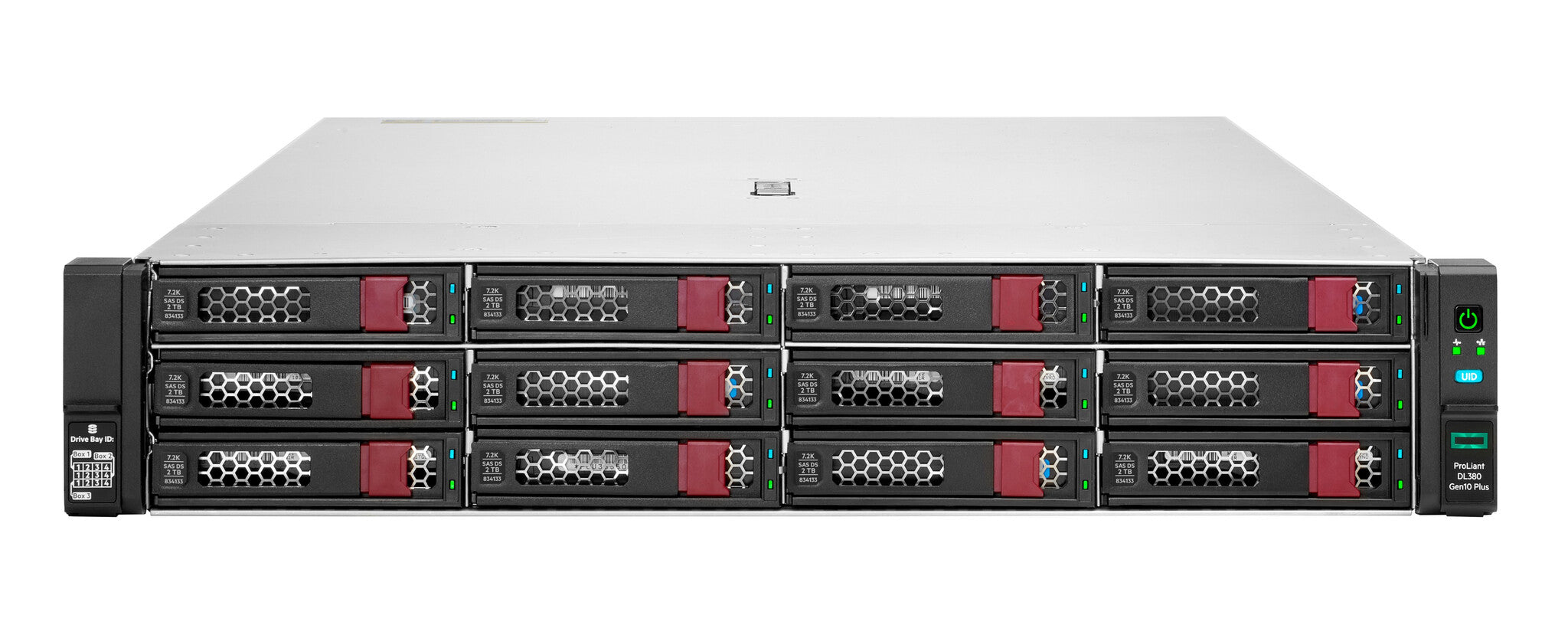

HPE ProLiant DL380 Gen10 Plus 12LFF NC Configure-to-order Server
Couldn't load pickup availability
- Rack (2U) 6 fan(s) Intel C621A LGA 4189
- Number of processors supported: 2
- Number of DIMM slots: 32
- Number of storage drives supported: 12
- Hot-swap HDD bays
- Ethernet LAN Ethernet LAN (RJ-45) ports: 4
Do your servers need increased performance in storage, compute, or expansion? The HPE ProLiant DL380 Gen10 Plus server is adaptable for diverse workloads and environments, providing you with the right balance of expandability and scalability. Designed for supreme versatility and resiliency, this 2U/2P platform is capable for deployment in multiple environments, built on 3rd Generation Intel Xeon Scalable Processors, and backed by a comprehensive warranty. Equipped with PCIe Gen4 capabilities, the HPE ProLiant DL380 Gen10 Plus server offers improved data transfer rates and higher networking speeds.
What is new supporting point:
Supports 3rd Generation Intel Xeon Scalable Processors.
Support for PCIe Gen4, resulting in improved bandwidth and throughput.
Support for industry-standard OCP 3.0 Network Adapters.
Support for Trimodal (NVMe/SAS/SATA) HPE Smart Array controllers.
| Processor | |
|---|---|
| Number of processors supported | 2 |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor family | Intel® Xeon® Scalable |
| Processor manufacturer | Intel |
| Processor socket | LGA 4189 |
| Motherboard chipset | Intel C621A |
| Built-in processor | No |
| Memory | |
|---|---|
| Supported RDIMM clock speeds | 3200 MHz |
| Maximum RDIMM memory | 2.05 TB |
| Supported memory types | DDR4-SDRAM |
| Number of DIMM slots | 32 |
| Storage | |
|---|---|
| Supported storage drive interfaces | Serial ATA |
| Supported storage drive types | HDD |
| Storage drive sizes supported | 3.5" |
| Hot-swap HDD bays | Yes |
| Number of storage drives supported | 12 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Features | |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Optical drive type | No |
| Design | |
|---|---|
| Number of fans | 6 fan(s) |
| Chassis type | Rack (2U) |
| Power | |
|---|---|
| Power supply | 0 W |
| Weight & dimensions | |
|---|---|
| Width | 445.4 mm |
| Depth | 710 mm |
| Height | 87.5 mm |
