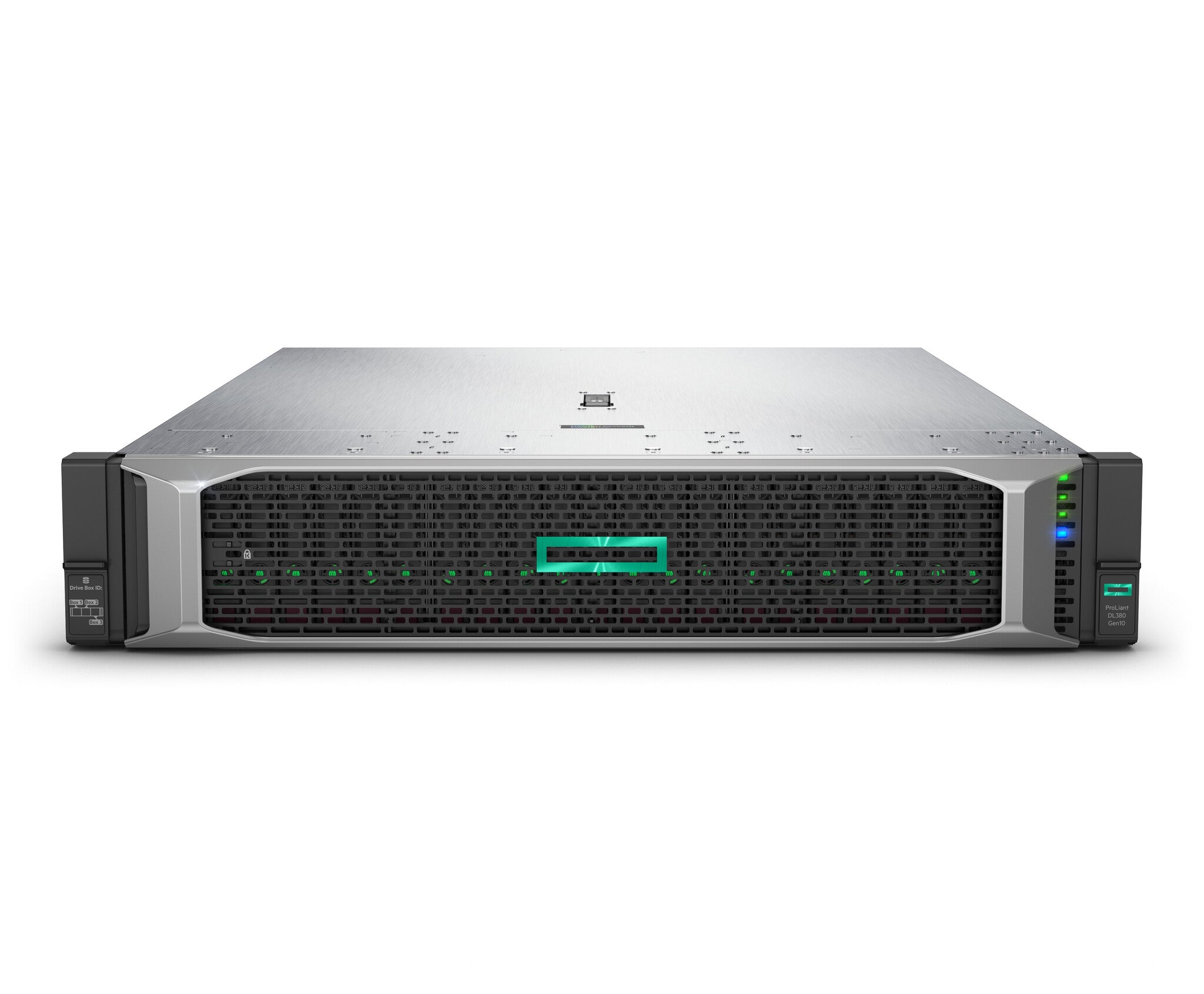

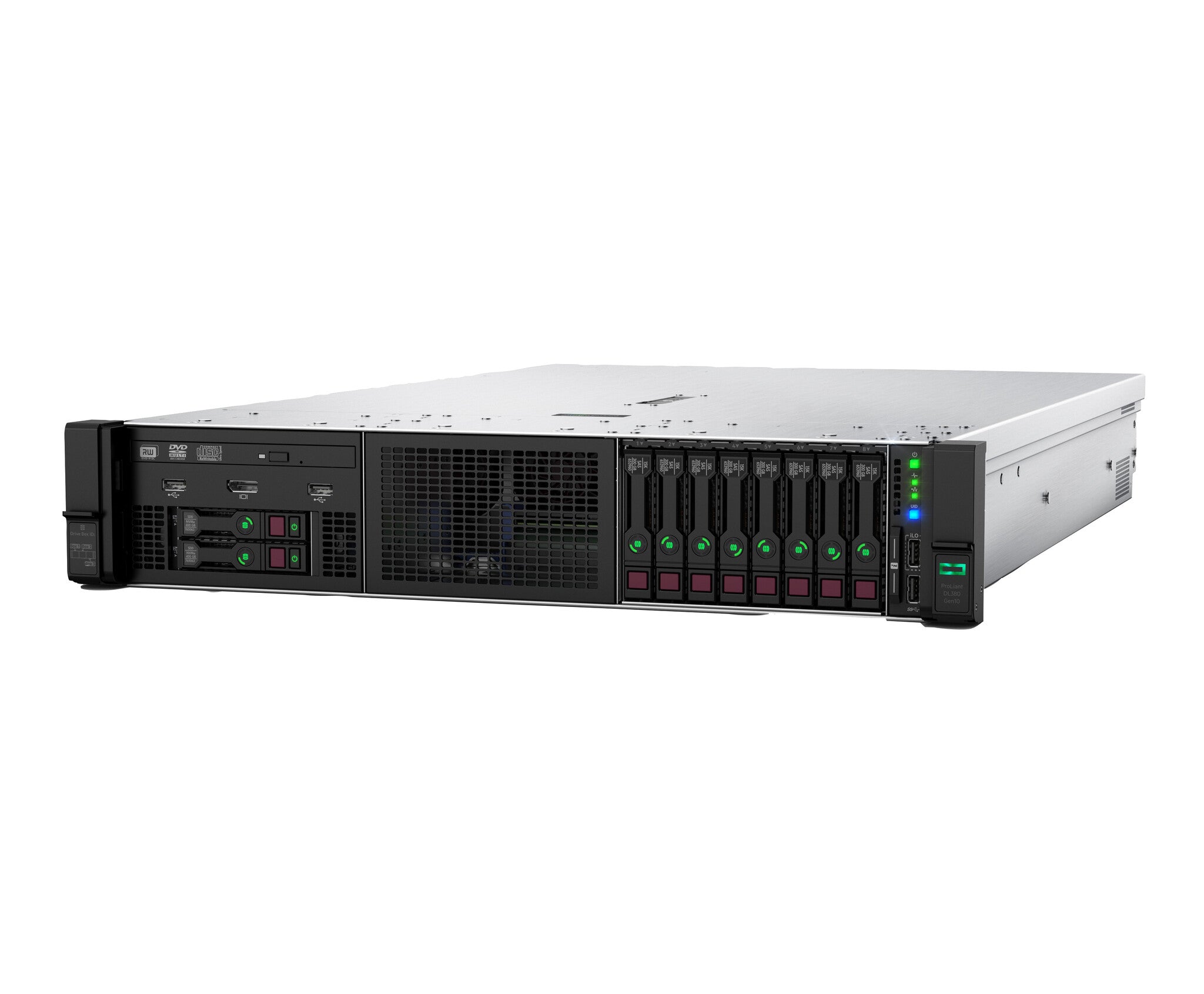

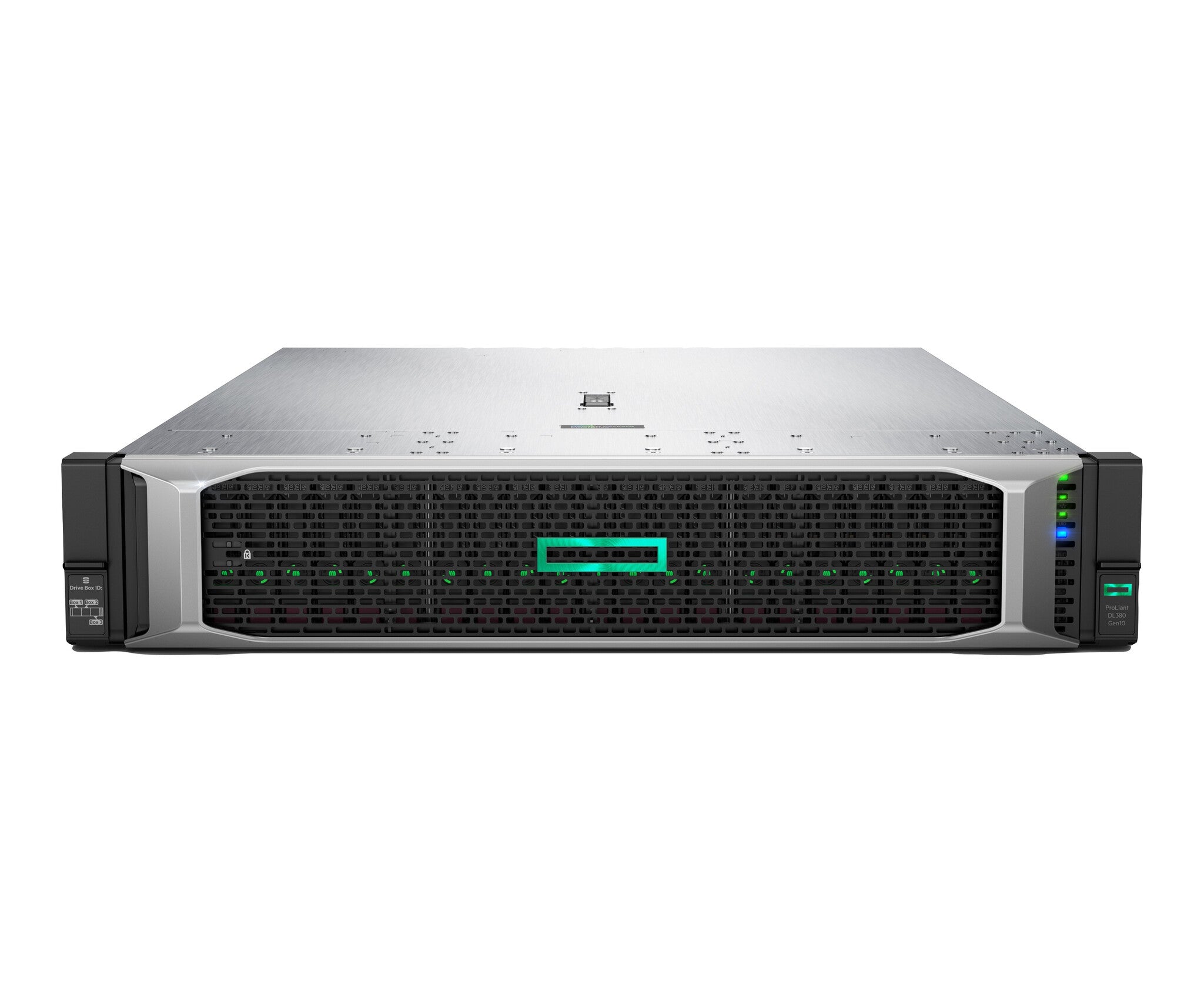

HPE ProLiant DL380 Gen10 6234 3.3GHz 8-core 1P 32GB-R S100i NC 8SFF 800W PS Server
Couldn't load pickup availability
- Intel® Xeon® Gold 6234 3.3 GHz
- 32 GB 2933 MHz DDR4-SDRAM 1 x 32
- Rack (2U) 800 W
Where is your server bottlenecked...storage, compute, expansion? The HPE ProLiant DL380 Gen10 server delivers the latest in security, performance and expandability, backed by a comprehensive warranty. Standardize on the industry's most trusted compute platform. The HPE ProLiant DL380 Gen10 server is securely designed to reduce costs and complexity, featuring the First and Second Generation Intel Xeon Processor Scalable Family with up to a 60% performance gain [1] and 27% increase in cores [2], plus the HPE 2933 MT/s DDR4 SmartMemory supporting 3.0 TB. It supports 12 Gb/s SAS, and up to 20 NVMe drive plus a broad range of compute options. Intel Optane™ persistent memory 100 series for HPE offers unprecedented levels of performance for databases and analytic workloads. Run everything from the most basic to mission-critical applications and deploy with confidence.
What is new supporting point:
Increased Single-Width GPU Density with up to 7 NVIDIA Tesla T4 16GB Computational Accelerators or 7 Xilinx Alveo U50 Accelerators supported in a standard-depth 2U rack form factor
Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
Intel Optane™ persistent memory 100 series for HPE offers the flexibility to deploy as dense memory or fast storage and enables per-socket memory capacity of up to 3.0 TB. [3]
iLO 5 security enhancements: Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor. HPE InfoSight provides cloud-based analytics to predict and prevent issues proactively.
Defend applications and data before your server is built with the new HPE Trusted Supply Chain offering.
Supporting additional second generation Intel Xeon Scalable processor family offerings.
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 1.02 TB |
| Execute Disable Bit | Yes |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| Processor codename | Cascade Lake |
| Tcase | 79 °C |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2933 MHz |
| Maximum number of PCI Express lanes | 48 |
| Processor package size | 76.0 x 56.5 mm |
| Supported instruction sets | SSE4.2, AVX, AVX 2.0, AVX-512 |
| Scalability | 4S |
| Embedded options available | No |
| Maximum number of SMP processors | 2 |
| Thermal Design Power (TDP) | 130 W |
| Number of processors installed | 1 |
| Motherboard chipset | Intel® C621 |
| Processor cache | 24.75 MB |
| Processor cores | 8 |
| Processor boost frequency | 4 GHz |
| Processor frequency | 3.3 GHz |
| Processor model | 6234 |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor family | Intel® Xeon® Gold |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 1.54 TB |
| Memory slots | 24x DIMM |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Hot-Plug support | Yes |
| Supported RAID controllers | None |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| SSD interface | PCI Express 4.0 |
| Number of HDDs supported | 8 |
| HDD size | 2.5" |
| HDD interface | Serial ATA |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 60 TB |
| Graphics | |
|---|---|
| Maximum graphics card memory | 16 MB |
| On-board graphics card model | Not available |
| On-board graphics card | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Black, Metallic |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Remote administration | iLO 5 ASIC |
| Software | |
|---|---|
| Compatible operating systems | Windows Server 2019: Essentials, Standard, DatacenterWindows Server 2016: Essentials, Standard, DatacenterWindows Server 2012 R2: Essentials, Standard, DatacenterMicrosoft Hyper-V Server: 2012 R2, 2016 & 2019VMware vSphere 6.0 U3, 6.5 U2 & 6.7 U1ClearVM: 7.6 & 8.0Red Hat Enterprise Linux (RHEL) 7.6 w/ KbaseSUSE Linux Enterprise Server (SLES) 12 SP4 & 15 SP1 (incl. Xen) |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 193954 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Power supply | 800 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Weight | 14.8 kg |
| Depth | 730.3 mm |
| Height | 87.4 mm |
| Width | 445.5 mm |
