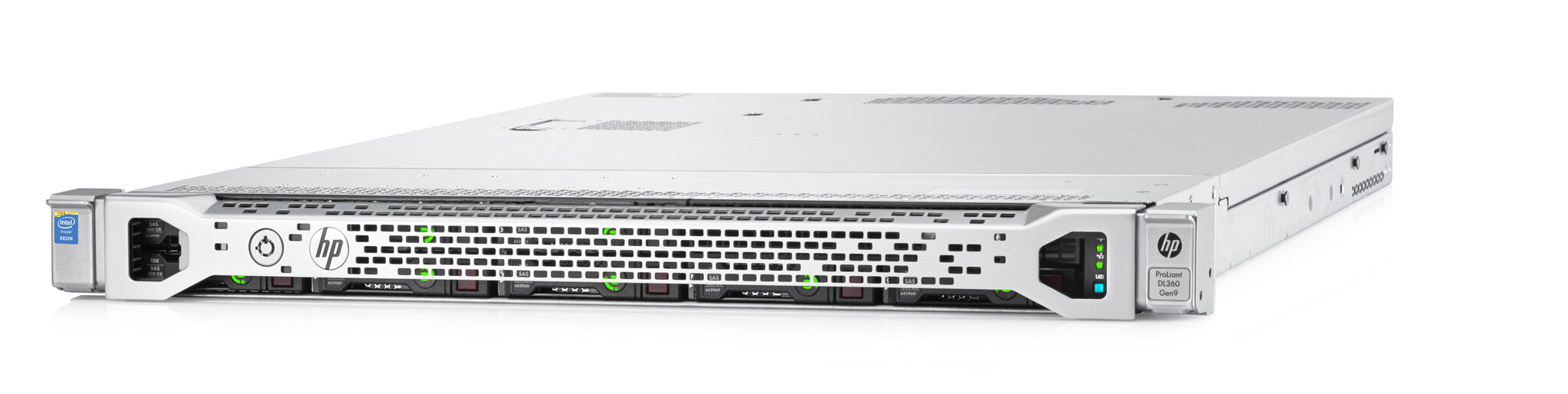

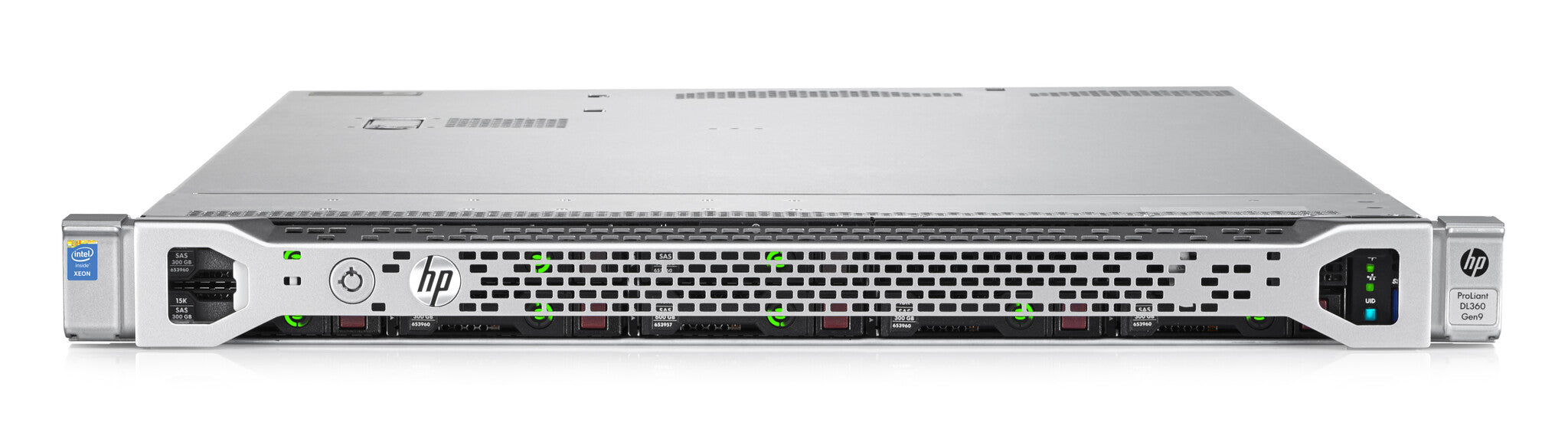

HPE ProLiant DL360 Gen9 server 0 GB Rack (1U) Intel Xeon E5 v3 E5-2603V3 1.6 GHz 8 GB DDR4-SDRAM 500 W
Couldn't load pickup availability
- Intel Xeon E5 v3 E5-2603V3 1.6 GHz
- 8 GB 2133 MHz DDR4-SDRAM 1 x 8
- Rack (1U) 500 W
Does your data center need a performance driven dense 1U server that you can confidentially deploy for virtualization, data base, or high-performance computing? The HP ProLiant DL360 Gen9 Server delivers a 1U chassis with up to two processors delivering an optimal unit that combines high-performance, low energy consumption, improved uptime, and increased density. Utilizing the Intel® Xeon® E5 2600v3 processors that deliver up to a 70% 1 performance gain and 36% 1 in efficiency over the Gen8 family.
The server combined with HP DDR4 SmartMemory support up to 768 GB while delivering up to a 14% 2 performance improvements over previous generations. Manage your DL360 Gen9 Server in any IT environment by automating the most essential server lifecycle management tasks: deploy, update, monitor and maintain with ease.
The HP ProLiant DL360 Gen9 Server is dedicated to meet the most demanding dynamic computing workloads.
Features
Dense and Flexible High-Performance Compute Power
- The HP ProLiant DL360 Gen9 Server has up to 24 HP DDR4 SmartMemory DIMM slots, with built-in intelligence to improve performance, reduce downtime and energy costs resulting in up to 14% better throughput performance.
- You have a choice of Embedded 4x1GbE, HP FlexibleLOM, PCIe standup 1GbE or 10GbE adapters which provides flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
- Achieve greater capacity with flexible drive configuration options with up to ten Small Form Factor (SFF) and four Large Form Factor (LFF) HP SmartDrives, delivering optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics.
- HP offers worldwide "configure-to-order" capabilities including custom images, racking and deployments.
Industry-Leading Energy Efficiency for a Quicker Return on Your Investment
- The HP ProLiant DL360 Gen9 Server supports improved ambient temperature ASHRAE A3 and A4 3 standards helping to reduce your cooling expenses.
- Next generation high-efficiency, redundant HP Flexible Slot Power Supplies provide up to 94% efficiency (Platinum Plus) and support for the HP Power Discovery Services.
- ENERGY STAR® qualified server configurations illustrate a continued commitment to helping customers conserve energy and save money.
Agile Infrastructure Management for Accelerating IT Service Delivery
- With HP ProLiant DL360 Server, HP OneView 4 provides converged management for automation simplicity across servers, storage and networking.
- Online personalized dashboard for Converged Infrastructure health monitoring and support management with HP Insight Online.
- Embedded management to deploy, monitor and support your DL360 Gen9 Server remotely, out of band with HP iLO.
- Configure in Unified Extensible Firmware Interface (UEFI) boot mode, provision local and remote with Intelligent Provisioning and Scripting Toolkits.
- Optimize firmware and driver updates and reduce downtime with HP Smart Update, consisting of HP SUM and SPP.
Industry Leading Serviceability
- The HP ProLiant DL360 Gen9 Server comes with a complete set of HP Technology Services, delivering confidence, reducing risk and helping customers realize agility and stability. HP provides consulting to transform your infrastructure; services to deploy, migrate and support your new ProLiant Servers.
- HP provides consulting advice to transform and modernize your infrastructure; services to deploy, migrate and support your new ProLiant servers and education to help you succeed quickly.
- Worldwide availability, service and support for customers who have multiple data centers in multiple countries.
| Processor | |
|---|---|
| Conflict-Free processor | No |
| Stepping | R2 |
| Thermal Monitoring Technologies | Yes |
| Maximum internal memory supported by processor | 768 GB |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 22 nm |
| Processor threads | 6 |
| Processor operating modes | 64-bit |
| Processor codename | Haswell |
| Tcase | 72.8 °C |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600 MHz |
| Maximum number of PCI Express lanes | 40 |
| Processor package size | 52.5 x 45 mm |
| Supported instruction sets | AVX 2.0 |
| Scalability | 2S |
| Embedded options available | No |
| Maximum number of SMP processors | 2 |
| PCI Express configurations | x4, x8, x16 |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 51 GB/s |
| ECC supported by processor | Yes |
| Processor series | Intel Xeon E5-2600 v3 |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 6.4 GT/s |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 85 W |
| Number of processors installed | 1 |
| Memory channels supported by processor | Quad |
| Motherboard chipset | Intel C610 |
| Processor cache | 15 MB |
| Processor cores | 6 |
| Processor frequency | 1.6 GHz |
| Processor model | E5-2603V3 |
| Processor family | Intel Xeon E5 v3 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 384 GB |
| Memory slots | 24x DIMM |
| Memory clock speed | 2133 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| RAID support | Yes |
| Number of HDDs supported | 8 |
| HDD size | 2.5" |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 38.4 TB |
| Network | |
|---|---|
| LAN controller | HP 331i |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Serial ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 4 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Chassis type | Rack (1U) |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows ServerRed Hat Enterprise Linux (RHEL)SUSE Linux Enterprise Server (SLES)Canonical UbuntuOracle LinuxCentOSVMwareCitrix XenServerOracle SolarisWind River Linux |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | No |
| Intel Clear Video Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Insider™ | No |
| Intel Dual Display Capable Technology | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 83349 |
| Intel® Quick Sync Video Technology | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel Flex Memory Access | No |
| Intel Demand Based Switching | Yes |
| Intel Identity Protection Technology version | 0.00 |
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Power supply | 500 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Weight | 12.2 kg |
| Depth | 698.5 mm |
| Height | 43.2 mm |
| Width | 434.7 mm |
| Other features | |
|---|---|
| Graphics card | G200 |
| Graphics card family | Matrox |
