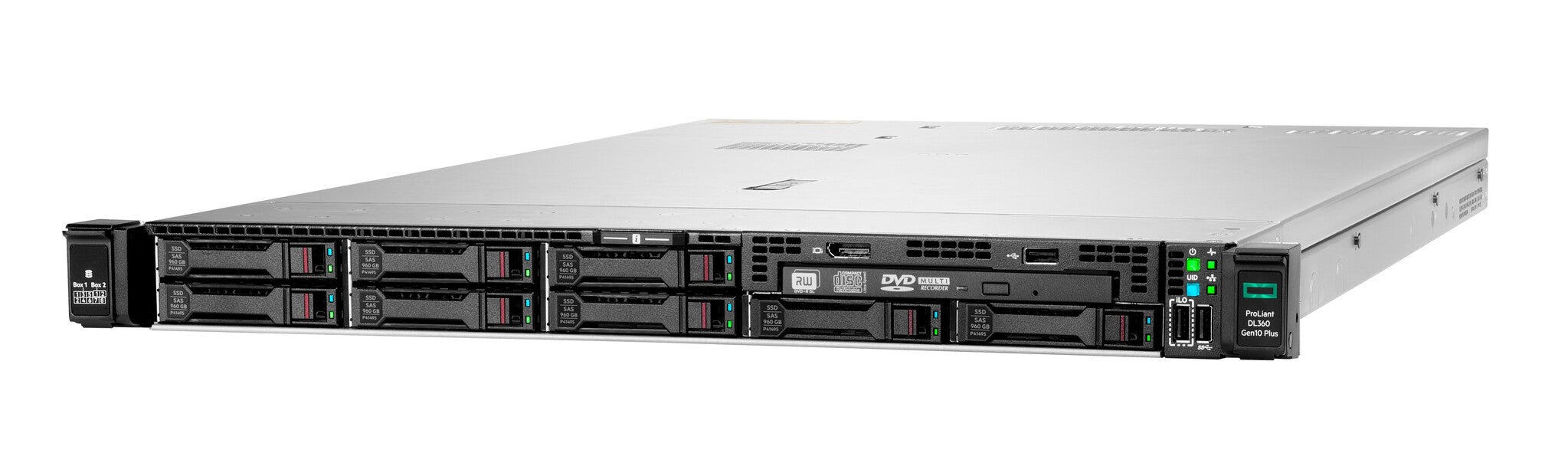

HPE ProLiant DL360 Gen10 Plus 4310 2.1GHz 12-core 1P 32GB-R MR416i-a NC 8SFF 800W PS Server
Couldn't load pickup availability
- Intel Xeon Silver 4310 2.1 GHz
- 32 GB 3200 MHz DDR4-SDRAM 1 x 32
- Rack (1U) 800 W
Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized. Powered by 3rd Generation Intel Xeon Scalable Processors, delivering up to 40 cores, 3200 MT/s memory, and introducing PCIe Gen4 and Intel Software Guard Extension (SGX) support to the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server delivers premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.
What is new supporting point:
Support for industry-standard OCP 3.0 Network Adapters, enhancing customer choice.
Slot-less HW RAID protected M.2 boot solution, providing peace-of-mind O/S deployment while saving invaluable slots and storage bays.
Choice of storage backplanes and cages, offering diverse bay counts, protocols, and bandwidth that enable customers to design their server storage for their precise needs.
Enhanced storage capabilities with Tri-mode controllers supporting NVMe/SAS/SATA drives, allowing customers to select the ideal media type and mix for their exact application.
64 PCIe Gen4 lanes, resulting in more devices, improved bandwidth and augmented balanced I/O capabilities.
Supports 3rd Generation Intel Xeon Scalable Processors for enhanced compute performance.
| Processor | |
|---|---|
| Maximum number of SMP processors | 2 |
| Processor cache type | L3 |
| Number of processors installed | 1 |
| Motherboard chipset | Intel C621A |
| Processor cache | 18 MB |
| Processor cores | 12 |
| Processor boost frequency | 3.3 GHz |
| Processor frequency | 2.1 GHz |
| Processor model | 4310 |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory slots | 32x DIMM |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Supported RAID controllers | HPE MR416i-a Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G Controller |
| RAID support | Yes |
| SSD interface | PCI Express 4.0 |
| Supported HDD sizes | 2.5" |
| Number of HDDs supported | 8 |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 153.6 TB |
| Network | |
|---|---|
| LAN controller | Broadcom BCM57416 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| Expansion slots | 2 PCIe Gen4: 1 x16 FH, 1 x16 LP |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
|---|---|
| PCI Express x16 slots | 2 |
| Design | |
|---|---|
| Redundant fans support | Yes |
| Rack mounting | Yes |
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| Management platform | Included - HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) Optional - HPE iLO Advanced, and HPE OneView Advanced |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Remote administration | iLO 5 ASIC |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 7.9, Red Hat Enterprise Linux 8.2, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 15 SP2, VMware vSphere 6.7 (ESXi) Update 3 |
| Operating system installed | No |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Power supply | 800 W |
| Power supply type | 1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Weight | 13 kg |
| Depth | 707 mm |
| Height | 42.9 mm |
| Width | 434.6 mm |
| Other features | |
|---|---|
| Standard fans | 7x High Performance fans |
| Storage drive type | None ship standard, 8 SFF supported |
| Security features | UEFI Secure Boot and Secure Start support Intel Software Guard Extensions (SGX) support Immutable Silicon Root of Trust Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits |
| Number of processors supported | 1 |
