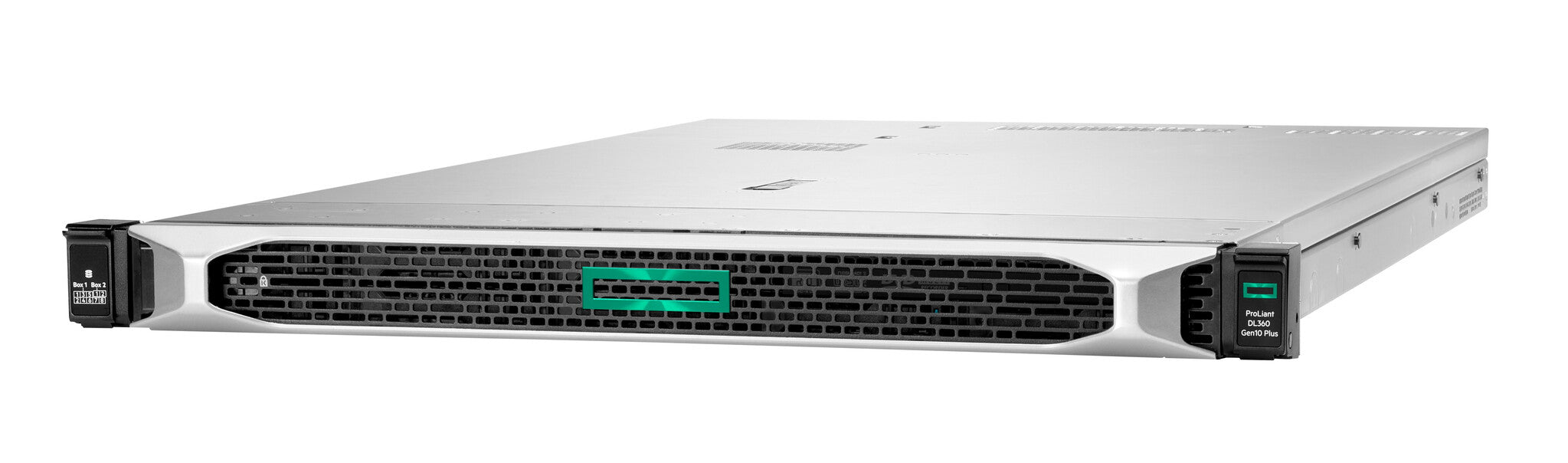

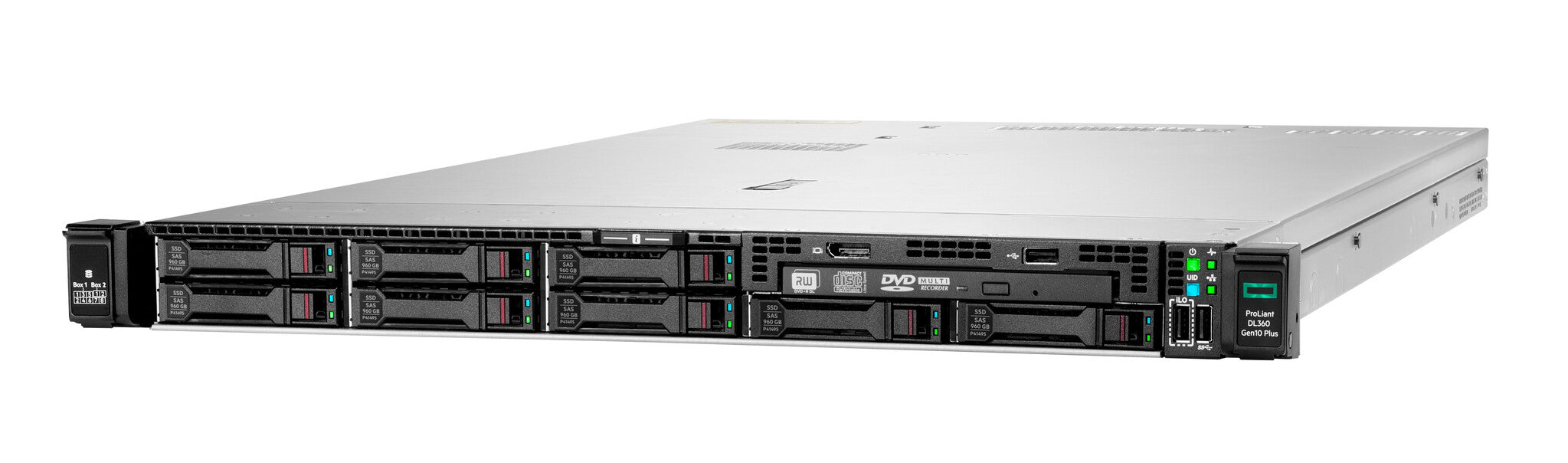

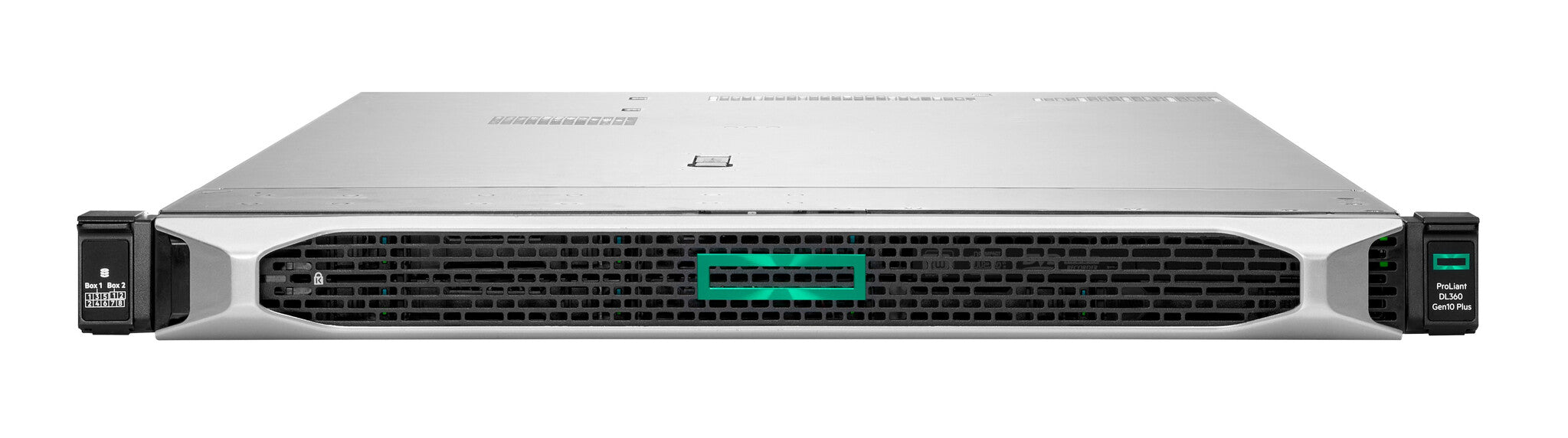

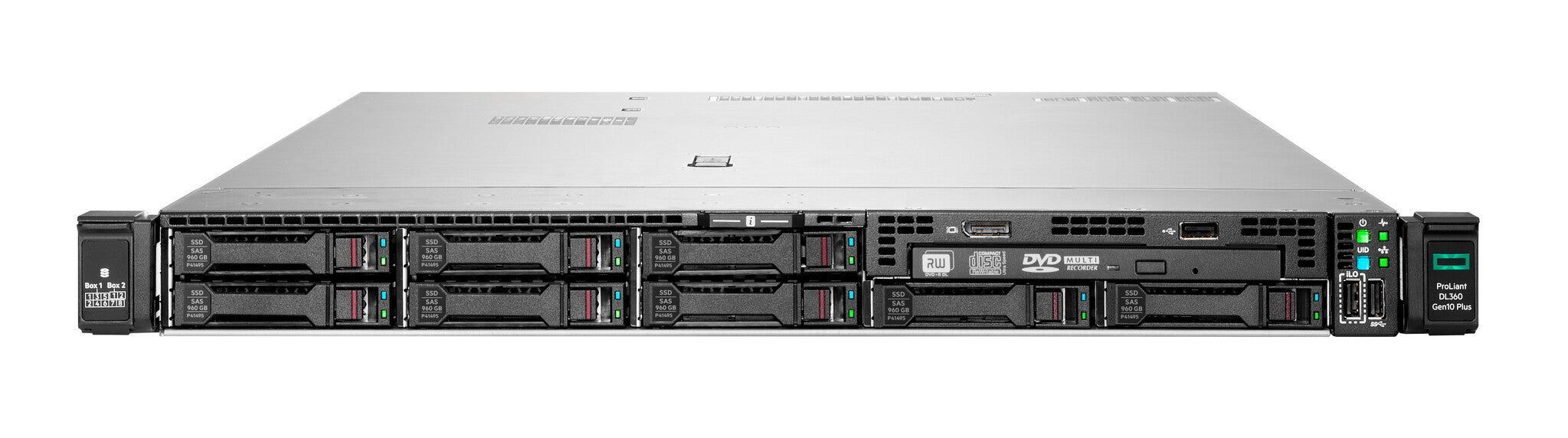

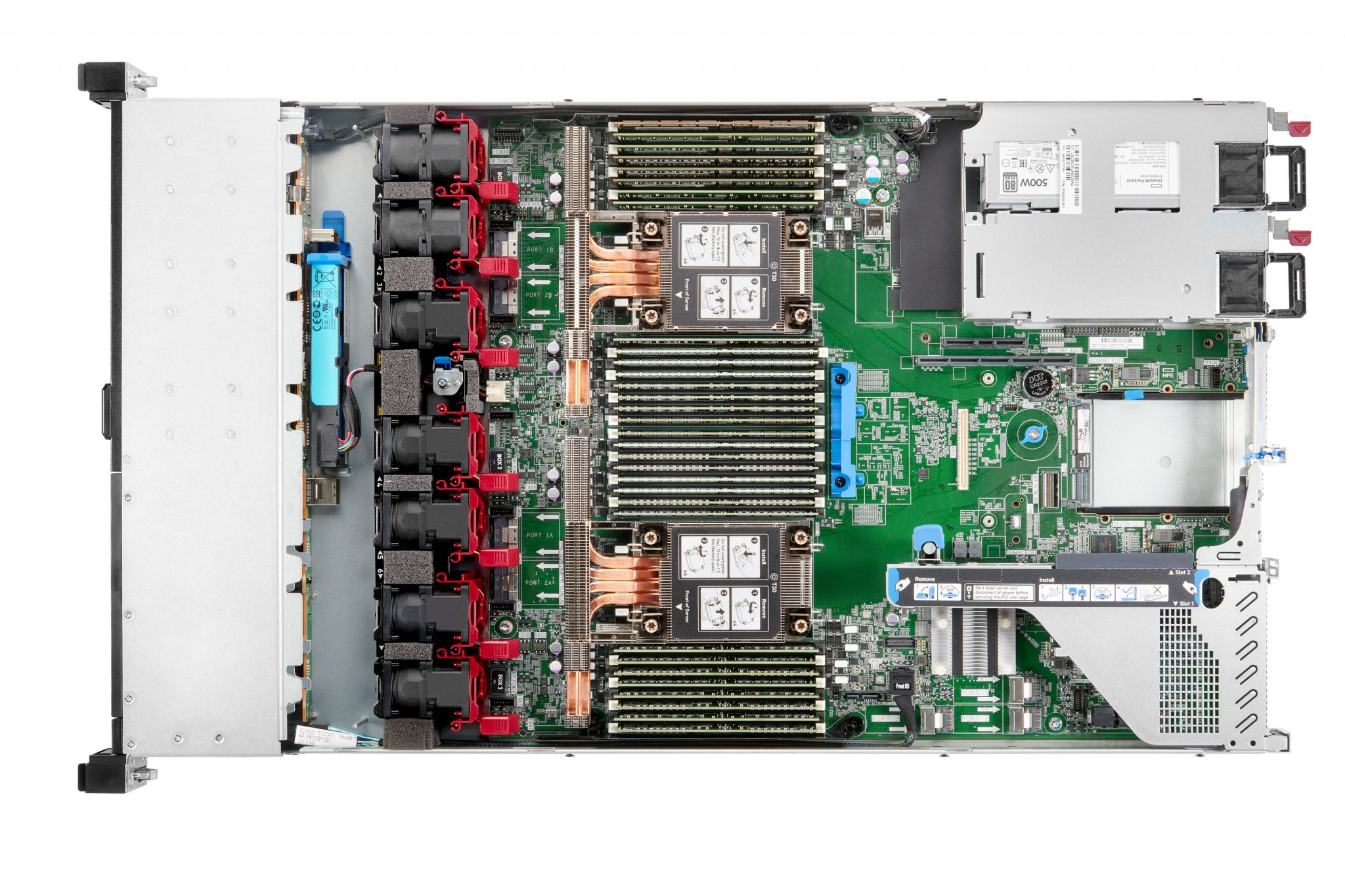

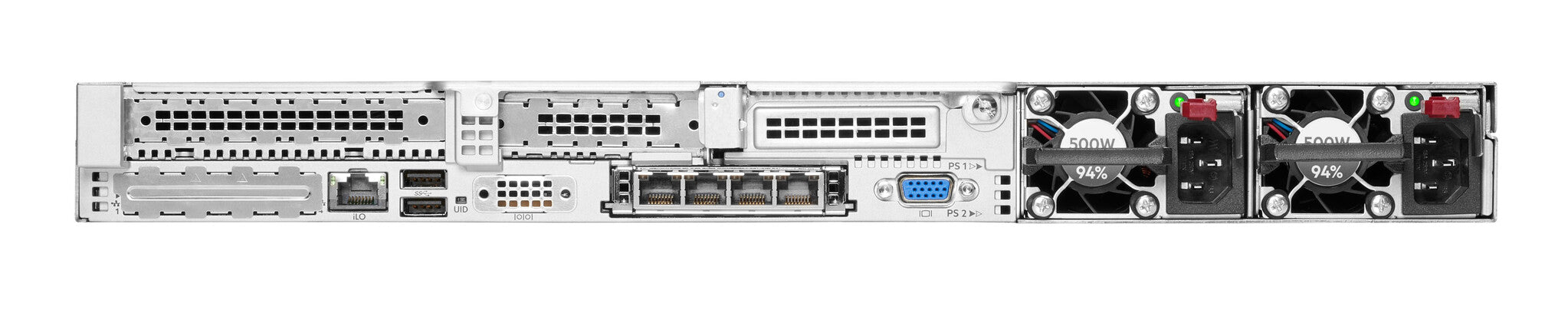

HPE ProLiant DL360 Gen10 Plus 4310 2.1GHz 12-core 1P 32GB-R MR416i-a NC 8SFF 800W PS EU Server
Couldn't load pickup availability
- Intel Xeon Silver 4310 2.1 GHz
- 32 GB 3200 MHz DDR4-SDRAM 1 x 32
- Rack (2U) 800 W
Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized. Powered by 3rd Generation Intel Xeon Scalable Processors, delivering up to 40 cores, 3200 MT/s memory, and introducing PCIe Gen4 and Intel Software Guard Extension (SGX) support to the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server delivers premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.
What is new supporting point:
Support for industry-standard OCP 3.0 Network Adapters, enhancing customer choice.
Slot-less HW RAID protected M.2 boot solution, providing peace-of-mind O/S deployment while saving invaluable slots and storage bays.
Choice of storage backplanes and cages, offering diverse bay counts, protocols, and bandwidth that enable customers to design their server storage for their precise needs.
64 PCIe Gen4 lanes, resulting in more devices, improved bandwidth and augmented balanced I/O capabilities.
Enhanced storage capabilities with Tri-mode controllers supporting NVMe/SAS/SATA drives, allowing customers to select the ideal media type and mix for their exact application.
Supports 3rd Generation Intel Xeon Scalable Processors for enhanced compute performance.
| Processor | |
|---|---|
| Maximum number of SMP processors | 2 |
| Number of processors installed | 1 |
| Motherboard chipset | Intel® C621 |
| Processor cache | 18 MB |
| Processor cores | 12 |
| Processor boost frequency | 3.3 GHz |
| Processor frequency | 2.1 GHz |
| Processor model | 4310 |
| Processor generation | 3rd Generation Intel® Xeon® Scalable |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 2.05 TB |
| Memory slots | 32x DIMM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Hot-Plug support | Yes |
| Supported RAID controllers | None |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| RAID support | Yes |
| SSD interface | PCI Express 4.0 |
| Supported HDD sizes | 2.5" |
| Number of HDDs supported | 8 |
| HDD interface | SATA, Serial Attached SCSI (SAS) |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 24 TB |
| Graphics | |
|---|---|
| Maximum graphics card memory | 16 MB |
| On-board graphics card | Yes |
| Network | |
|---|---|
| LAN controller | Broadcom 57416 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Remote administration | iLO 5 ASIC |
| Software | |
|---|---|
| Compatible operating systems | Windows Server 2016: Essentials, Standard, DatacenterWindows Server 2019: Essentials, Standard, DatacenterWindows Server 2022: Essentials, Standard, DatacenterMicrosoft Hyper-V Server: 2016, 2019 & 2022VMware vSphere: 6.7 U3 w /P03, 7.0 U2Red Hat Enterprise Linux (RHEL): 7.9, 8.2 (64 bit, includes KVM)SUSE Linux Enterprise Server (SLES): 12 SP5, 15 SP2 (64 bit, includes KVM & Xen) Canonical Ubuntu: 20.04 LTS (64 bit)Oracle Linux: 7.9, 8.2Citrix: Hypervisor: 8.2 LTSR |
| Operating system installed | No |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Power supply | 800 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Depth | 434.6 mm |
| Height | 42.9 mm |
| Width | 434.6 mm |
