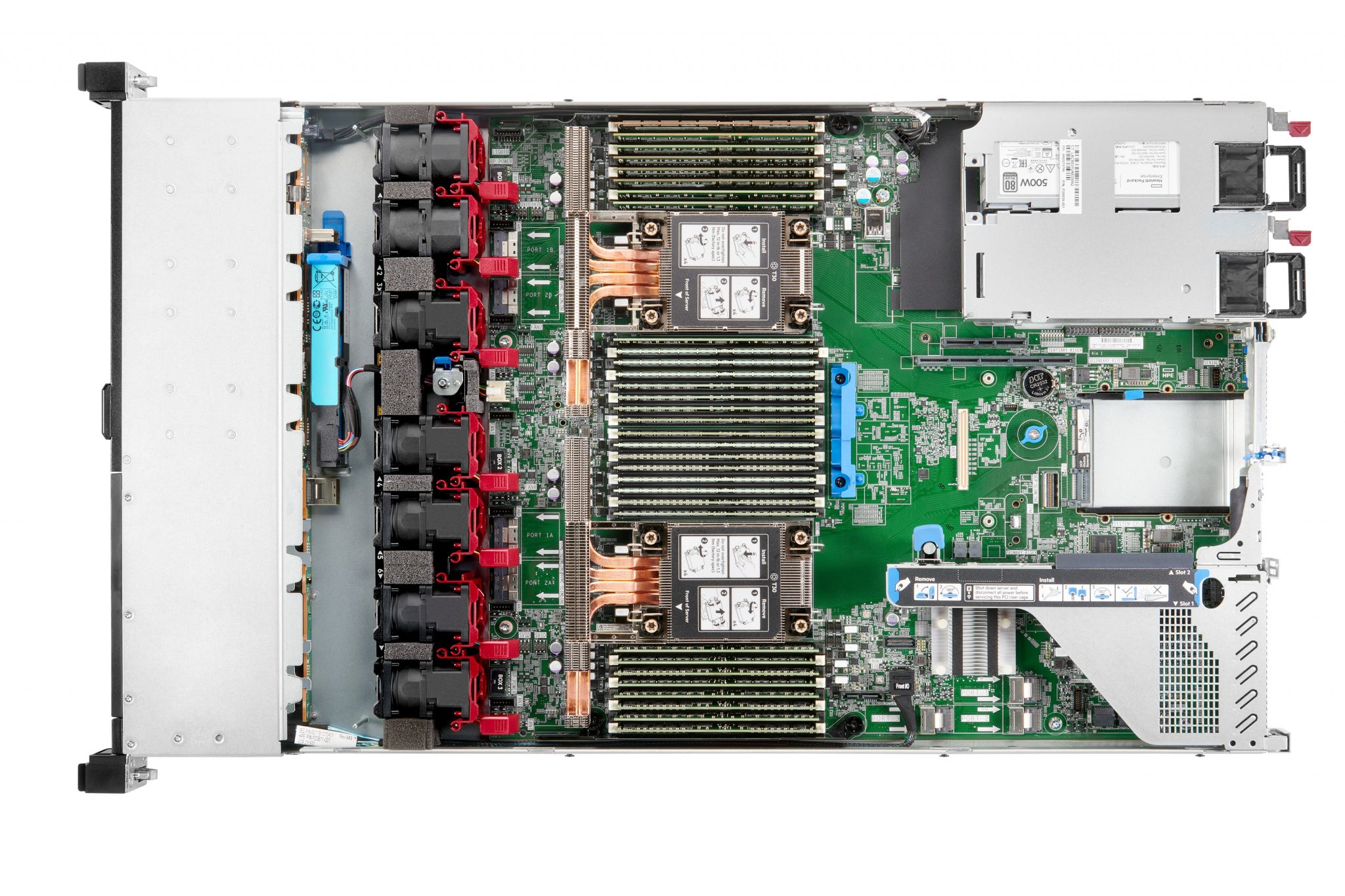

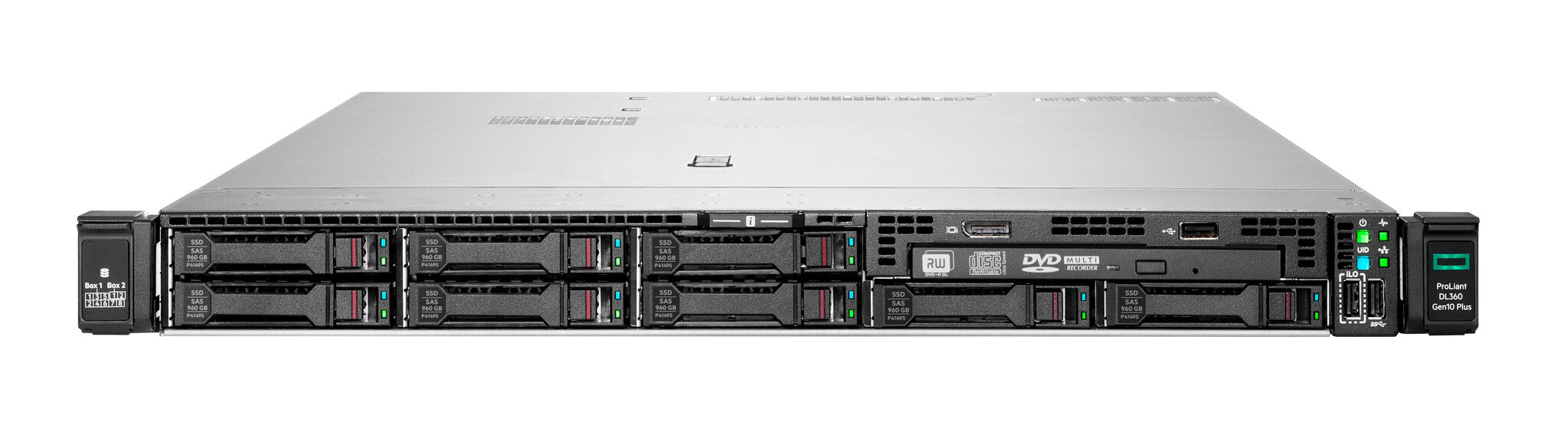

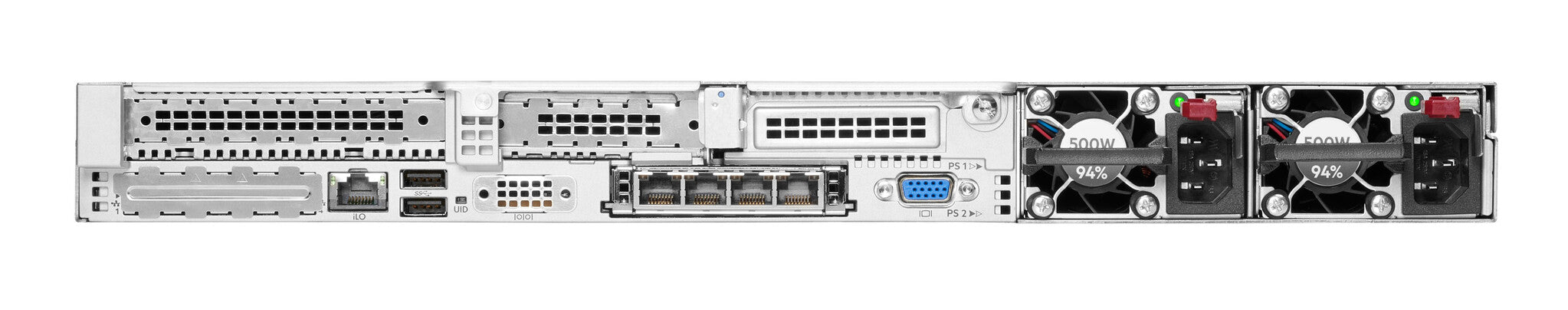

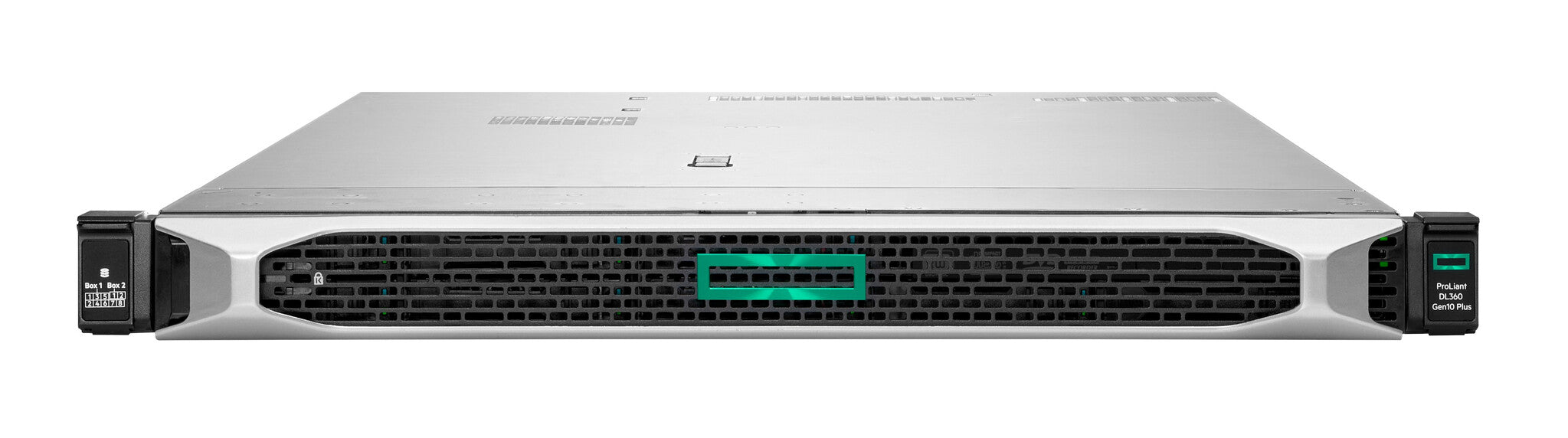

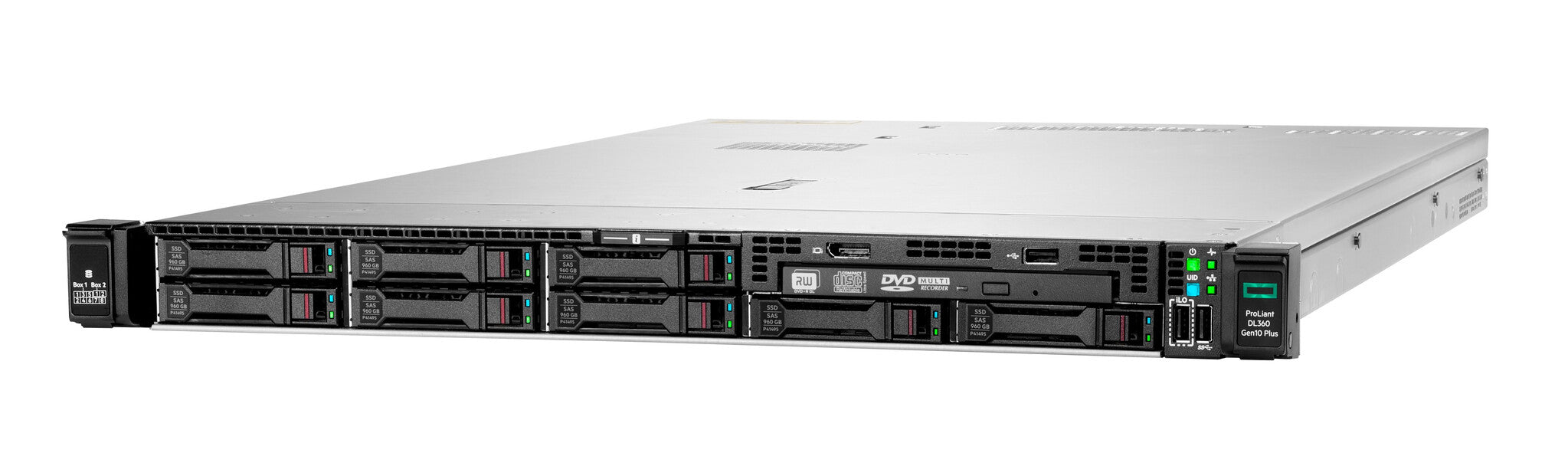

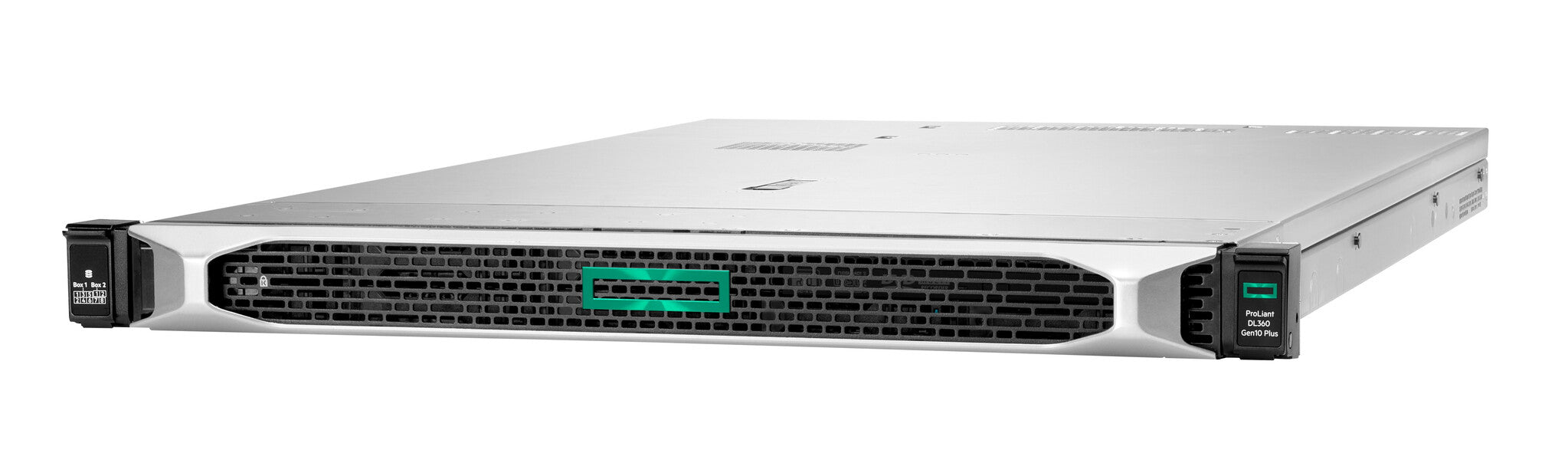

HPE ProLiant DL360 Gen10 Plus 4309Y 2.8GHz 8-core 1P 32GB-R MR416i-a NC 8SFF 800W PS Server
Couldn't load pickup availability
- Intel Xeon Silver 4309Y 2.8 GHz
- 32 GB 3200 MHz DDR4-SDRAM 1 x 32
- Rack (2U) 800 W
Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized. Powered by 3rd Generation Intel Xeon Scalable Processors, delivering up to 40 cores, 3200 MT/s memory, and introducing PCIe Gen4 and Intel Software Guard Extension (SGX) support to the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server delivers premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.
What is new supporting point:
Choice of storage backplanes and cages, offering diverse bay counts, protocols, and bandwidth that enable customers to design their server storage for their precise needs.
Support for industry-standard OCP 3.0 Network Adapters, enhancing customer choice.
Slot-less HW RAID protected M.2 boot solution, providing peace-of-mind O/S deployment while saving invaluable slots and storage bays.
Enhanced storage capabilities with Tri-mode controllers supporting NVMe/SAS/SATA drives, allowing customers to select the ideal media type and mix for their exact application.
64 PCIe Gen4 lanes, resulting in more devices, improved bandwidth and augmented balanced I/O capabilities.
Supports 3rd Generation Intel Xeon Scalable Processors for enhanced compute performance.
| Processor | |
|---|---|
| Number of processors installed | 1 |
| Processor cache | 12 MB |
| Processor cores | 8 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 2.8 GHz |
| Processor model | 4309Y |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 2 TB |
| Memory slots | 32x DIMM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Supported RAID controllers | None |
| RAID levels | 0, 1, 5, 10 |
| RAID support | Yes |
| SSD interface | PCI Express 4.0 |
| Number of HDDs supported | 8 |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 153 TB |
| Network | |
|---|---|
| LAN controller | Broadcom 57416 |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Silver |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Software | |
|---|---|
| Compatible operating systems | Windows Server 2016: Essentials, Standard, DatacenterWindows Server 2019: Essentials, Standard, DatacenterWindows Server 2022: Essentials, Standard, DatacenterMicrosoft Hyper-V Server: 2016, 2019 & 2022VMware vSphere: 6.7 U3 w /P03, 7.0 U2Red Hat Enterprise Linux (RHEL): 7.9, 8.2 (64 bit, includes KVM)SUSE Linux Enterprise Server (SLES): 12 SP5, 15 SP2 (64 bit, includes KVM & Xen)Canonical Ubuntu: 20.04 LTS (64 bit)Oracle Linux: 7.9, 8.2Citrix: Hypervisor: 8.2 LTSR |
| Power | |
|---|---|
| Power supply input voltage | 200 - 240 V |
| Number of main power supplies | 1 |
| Number of redundant power supplies installed | 1 |
| Power supply | 800 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Weight | 13.3 kg |
| Depth | 434.6 mm |
| Height | 42.9 mm |
| Width | 434.6 mm |
