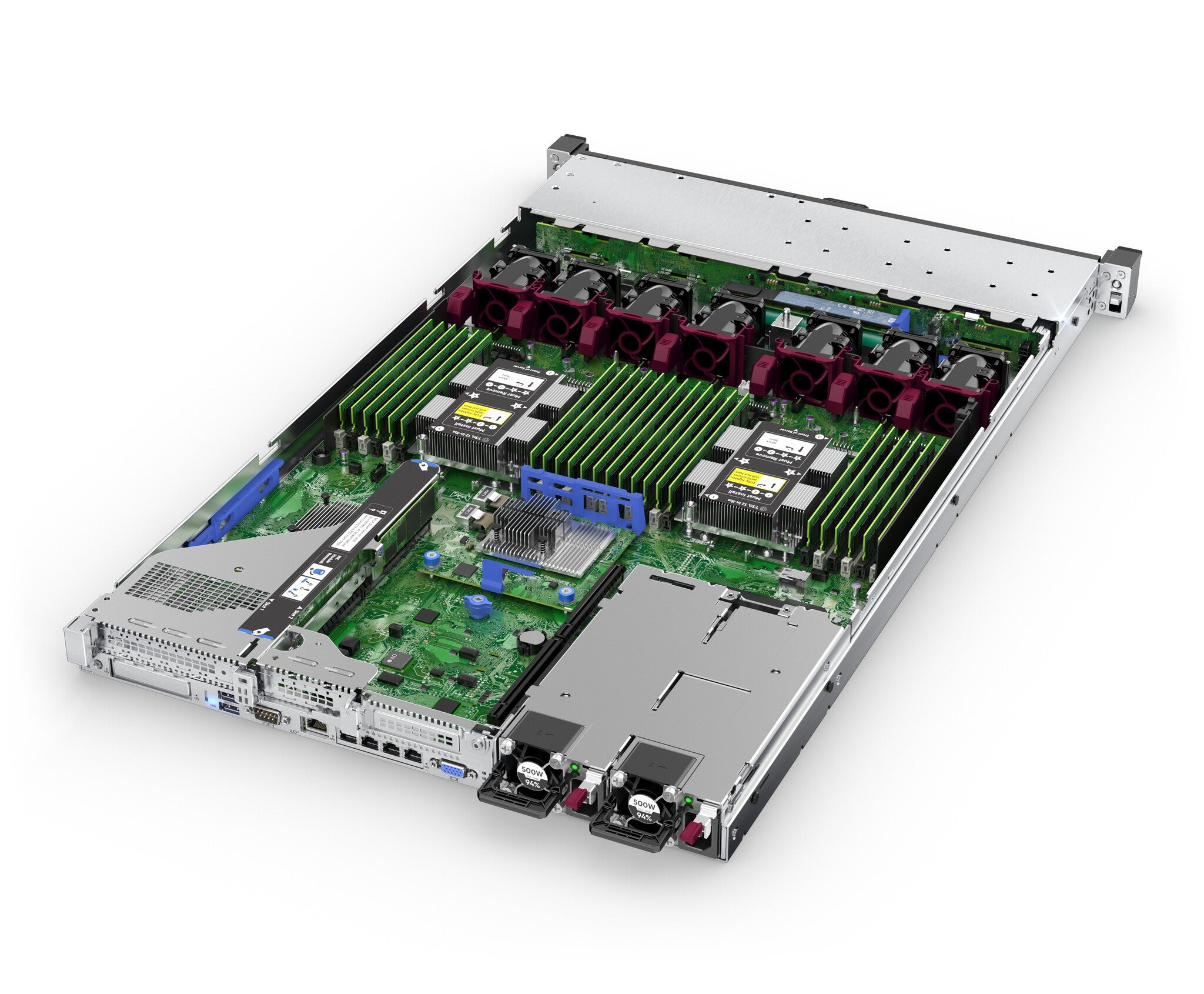

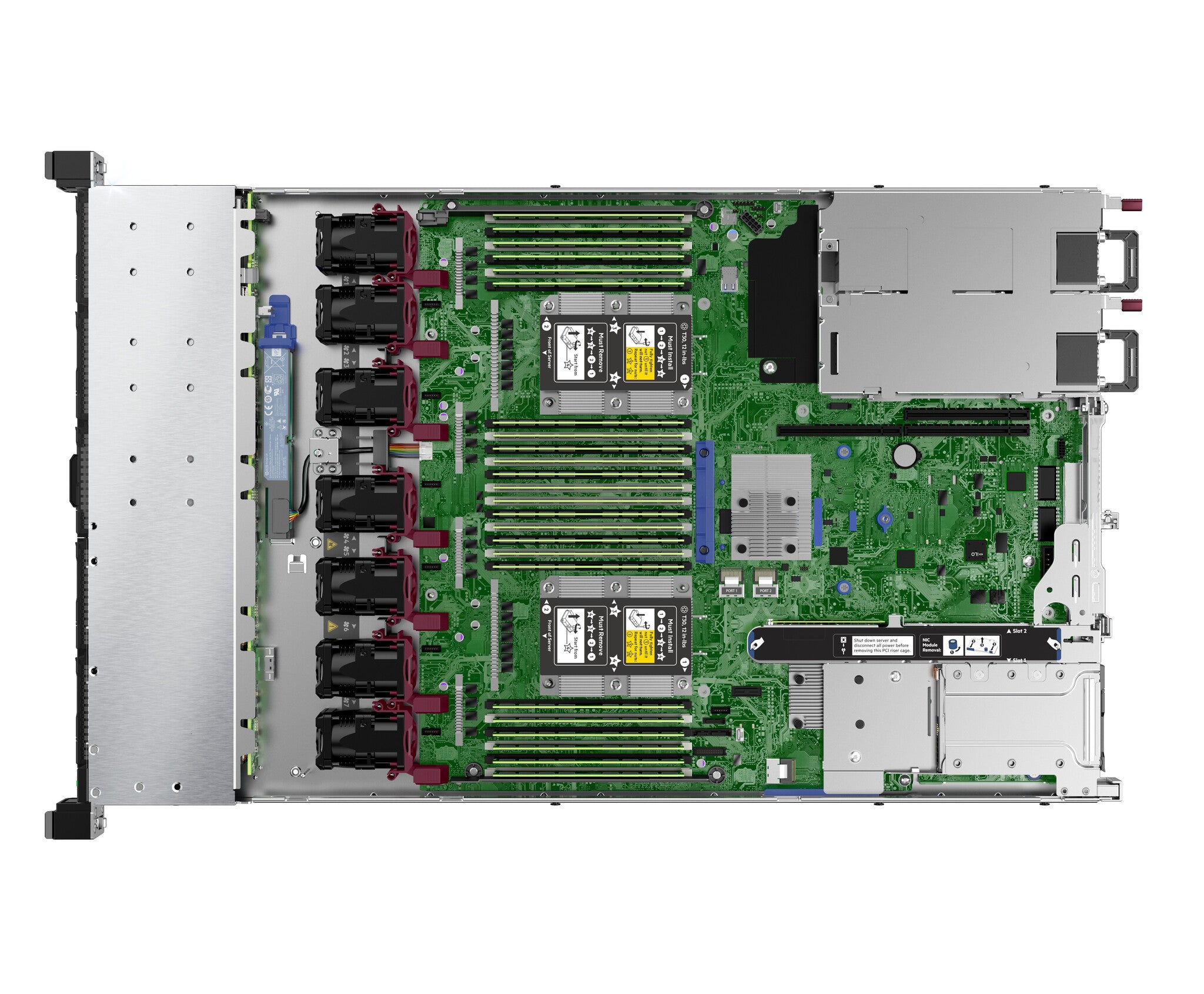

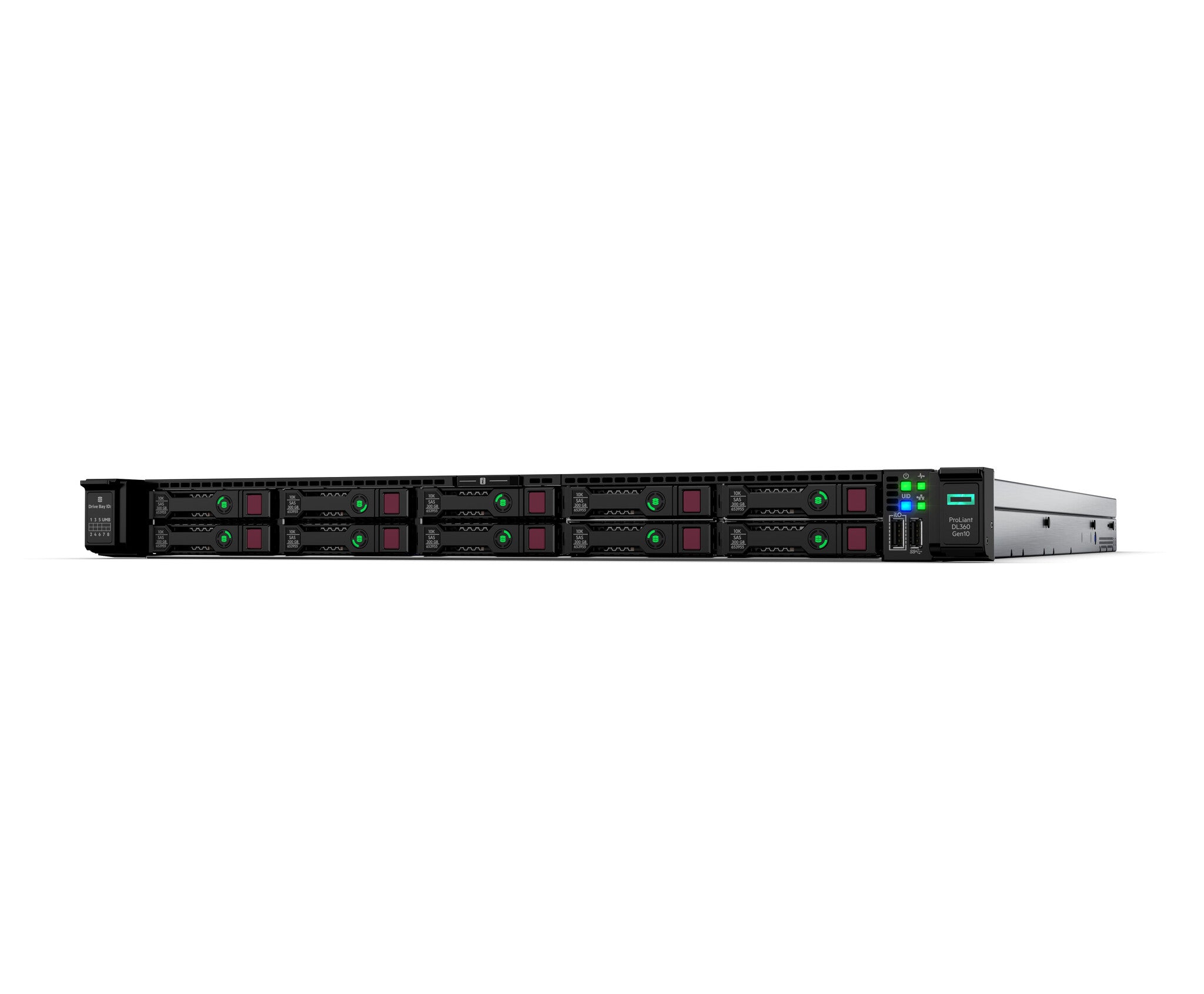

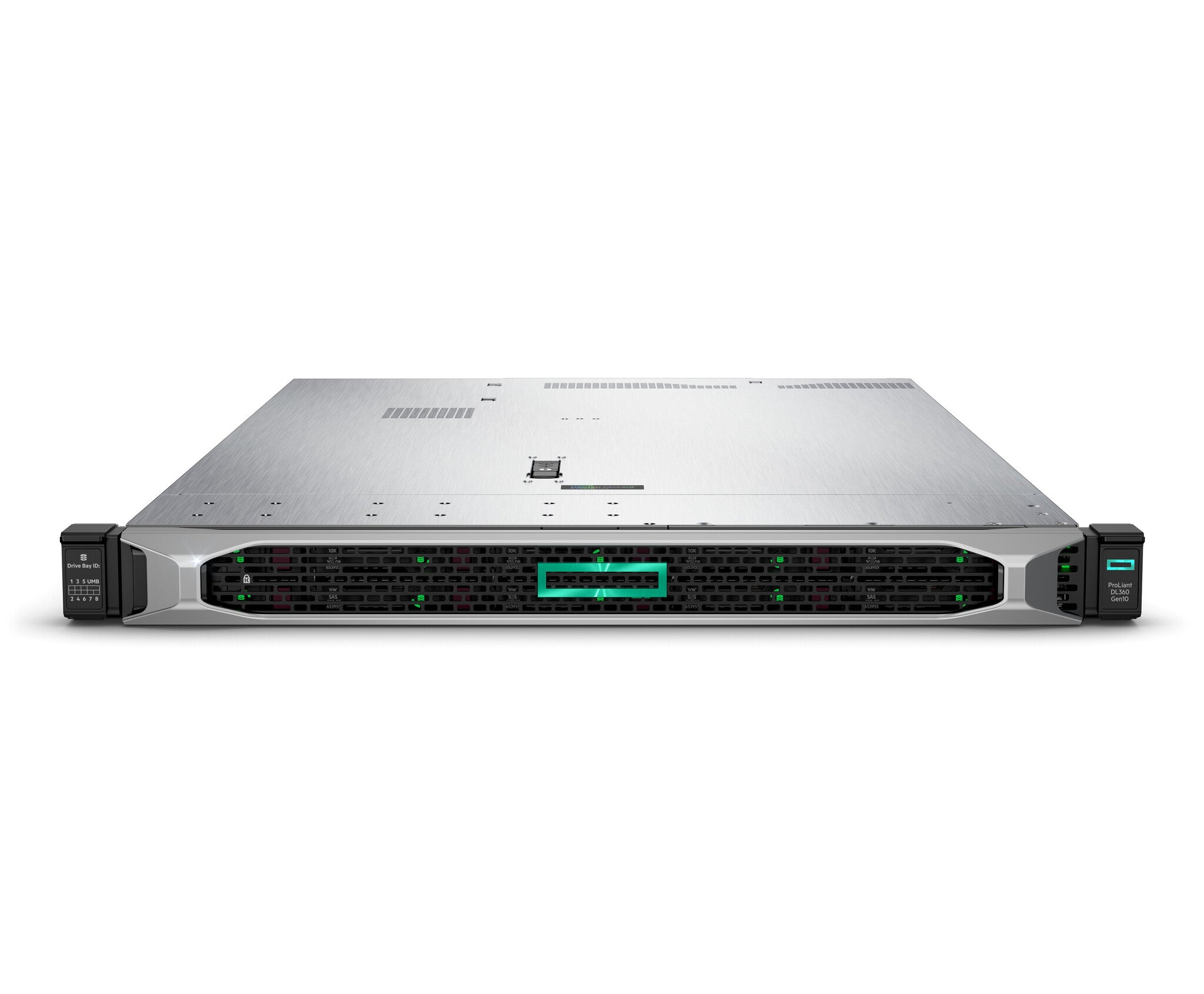

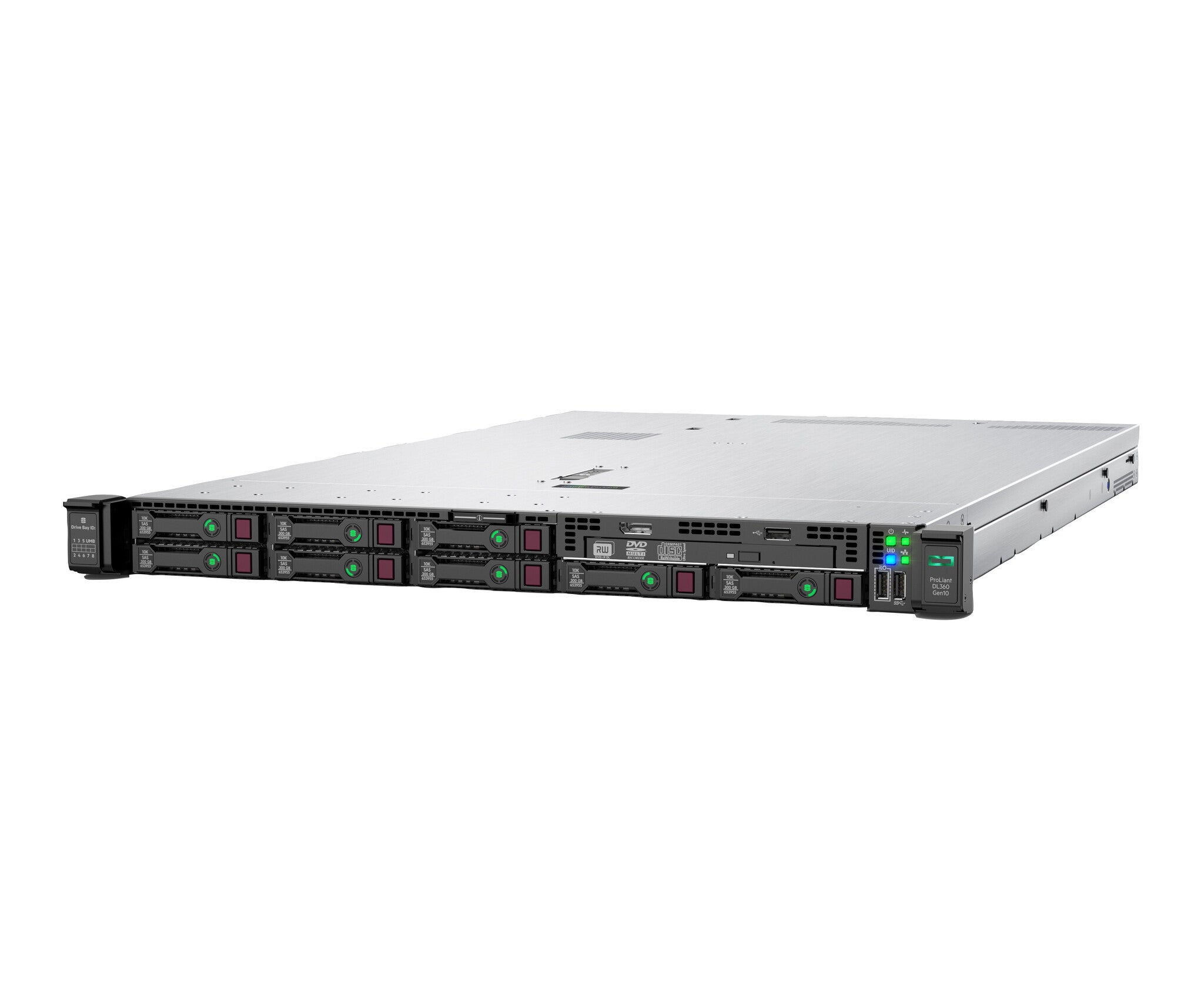

HPE ProLiant DL360 Gen10 4214R 2.4GHz 12-core 1P 32GB-R P408i-a NC 8SFF 500W PS Server
Couldn't load pickup availability
- Intel Xeon Silver 4214R 2.4 GHz
- 32 GB 2933 MHz DDR4-SDRAM 1 x 32
- Rack (2U) 500 W
Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel Xeon Scalable processor with up to a 60% performance gain [1] and 27% increase in cores [2], along with 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB [2] with an increase in performance of up to 82% [3]. With the added performance that Intel Optane™ persistent memory 100 series for HPE [6], HPE NVDIMMs [7] and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). Deploy this 2P secure platform for diverse workloads in space constrained environments.
What is new supporting point:
Support for additional second generation Intel Xeon Scalable processors with improved price/performance.
Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Intel Optane™ persistent memory 100 series for HPE offers the flexibility to deploy as dense memory or fast storage and enables per-socket memory capacity of up to 3.0 TB. [5]
HPE 800 Watt Flex Slot Titanium hot-plug power supply available for EMEA
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 1.02 TB |
| Execute Disable Bit | Yes |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Processor threads | 24 |
| Processor operating modes | 64-bit |
| Processor codename | Cascade Lake |
| Tcase | 79 °C |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Maximum number of PCI Express lanes | 48 |
| Processor package size | 76.0 x 56.5 mm |
| Supported instruction sets | SSE4.2, AVX, AVX 2.0, AVX-512 |
| Scalability | 2S |
| Embedded options available | Yes |
| Maximum number of SMP processors | 2 |
| Thermal Design Power (TDP) | 100 W |
| Number of processors installed | 1 |
| Motherboard chipset | Intel® C621 |
| Processor cache | 16.5 MB |
| Processor cores | 12 |
| Processor boost frequency | 3.5 GHz |
| Processor frequency | 2.4 GHz |
| Processor model | 4214R |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 1.54 TB |
| Memory slots | 24x DIMM |
| ECC | Yes |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Hot-Plug support | Yes |
| Supported RAID controllers | None |
| RAID levels | 0, 1, 1 ADM, 5, 6, 10 ADM, 10, 50, 60 |
| RAID support | Yes |
| SSD interface | PCI Express 4.0 |
| Supported HDD sizes | 2.5" |
| Number of HDDs supported | 8 |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 26.4 TB |
| Graphics | |
|---|---|
| Maximum graphics card memory | 16 MB |
| On-board graphics card | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Ethernet LAN (RJ-45) ports | 4 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Remote administration | iLO 5 ASIC |
| Software | |
|---|---|
| Compatible operating systems | Windows Server 2019: Essentials, Standard, DatacenterWindows Server 2016: Essentials, Standard, DatacenterWindows Server 2012 R2: Essentials, Standard, DatacenterMicrosoft Hyper-V Server: 2012 R2, 2016 & 2019VMware vSphere: 6.0 U3, 6.5 U2 & 6.7 U1ClearVM: 7.6 & 8.0Red Hat Enterprise Linux (RHEL): 7.6 w/ KbaseSUSE Linux Enterprise Server (SLES): 12 SP4 & 15 SP1 (inc. Xen) |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 197100 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Power supply | 500 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84714100 |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Depth | 434.6 mm |
| Height | 42.9 mm |
| Width | 42.9 mm |
