£7,445.99

Stock Available: 0
  • Intel Xeon Silver 4210R 2.4 GHz
  • 32 GB 2933 MHz DDR4-SDRAM 1 x 32
  • Rack (1U) 800 W

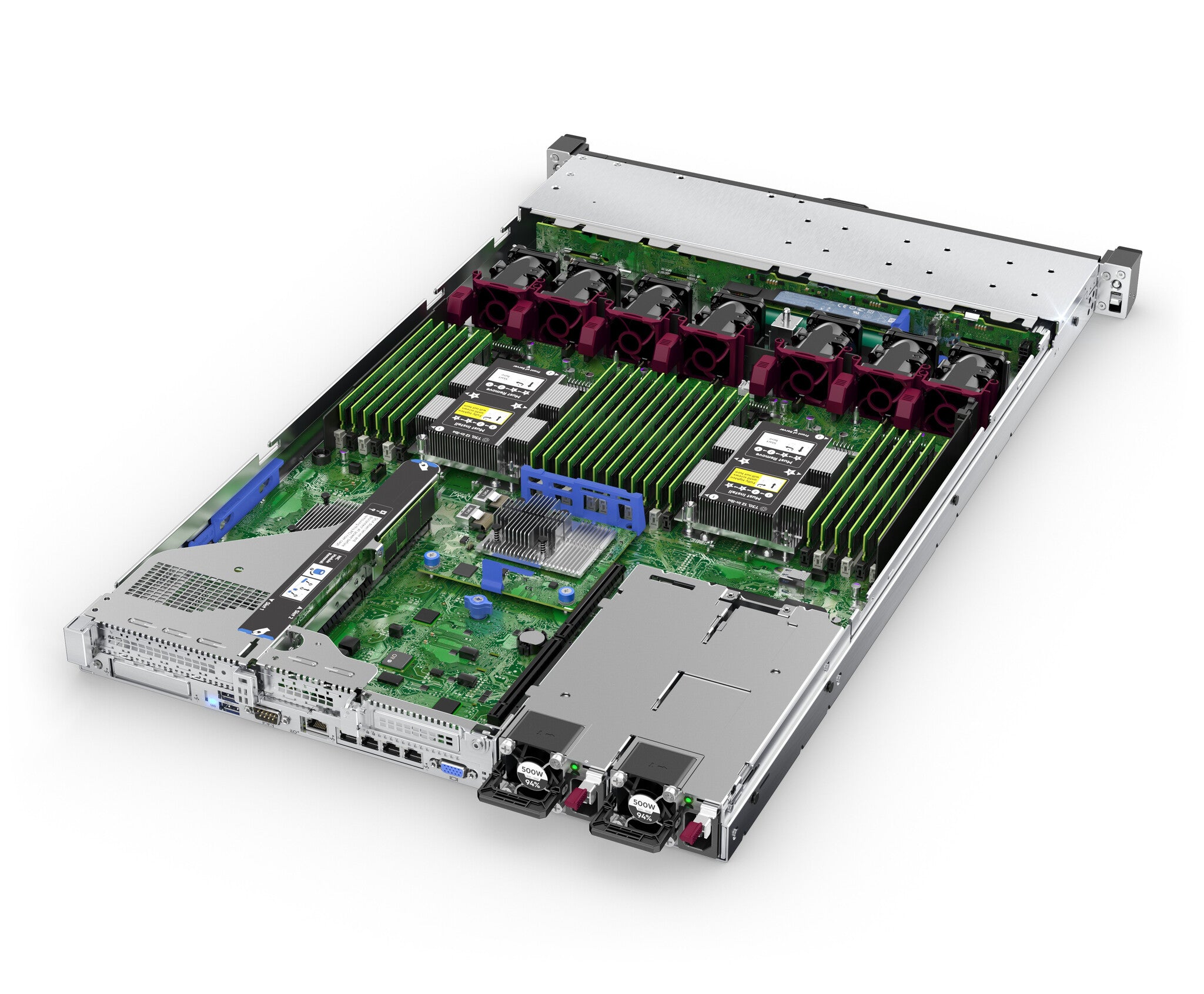

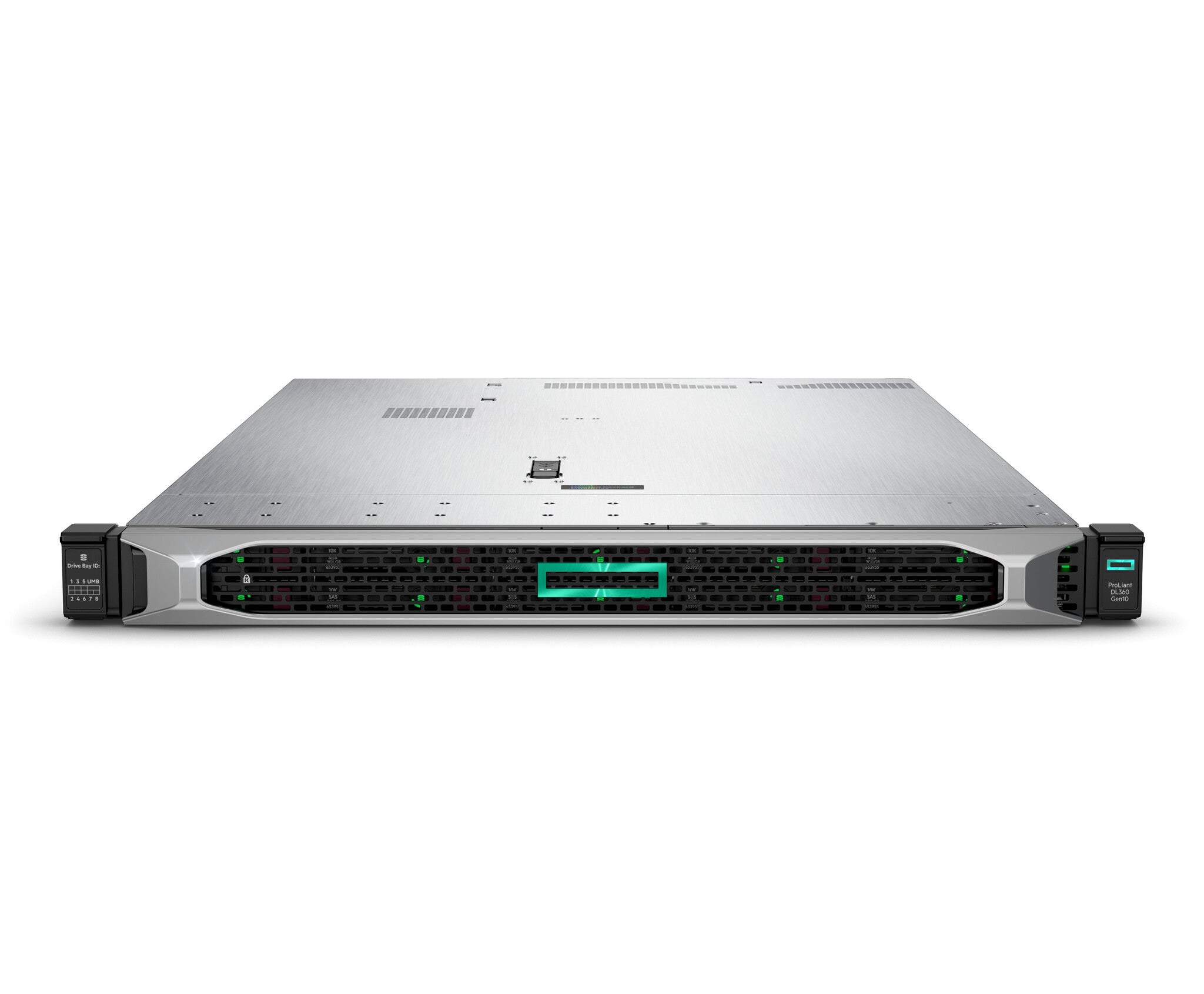

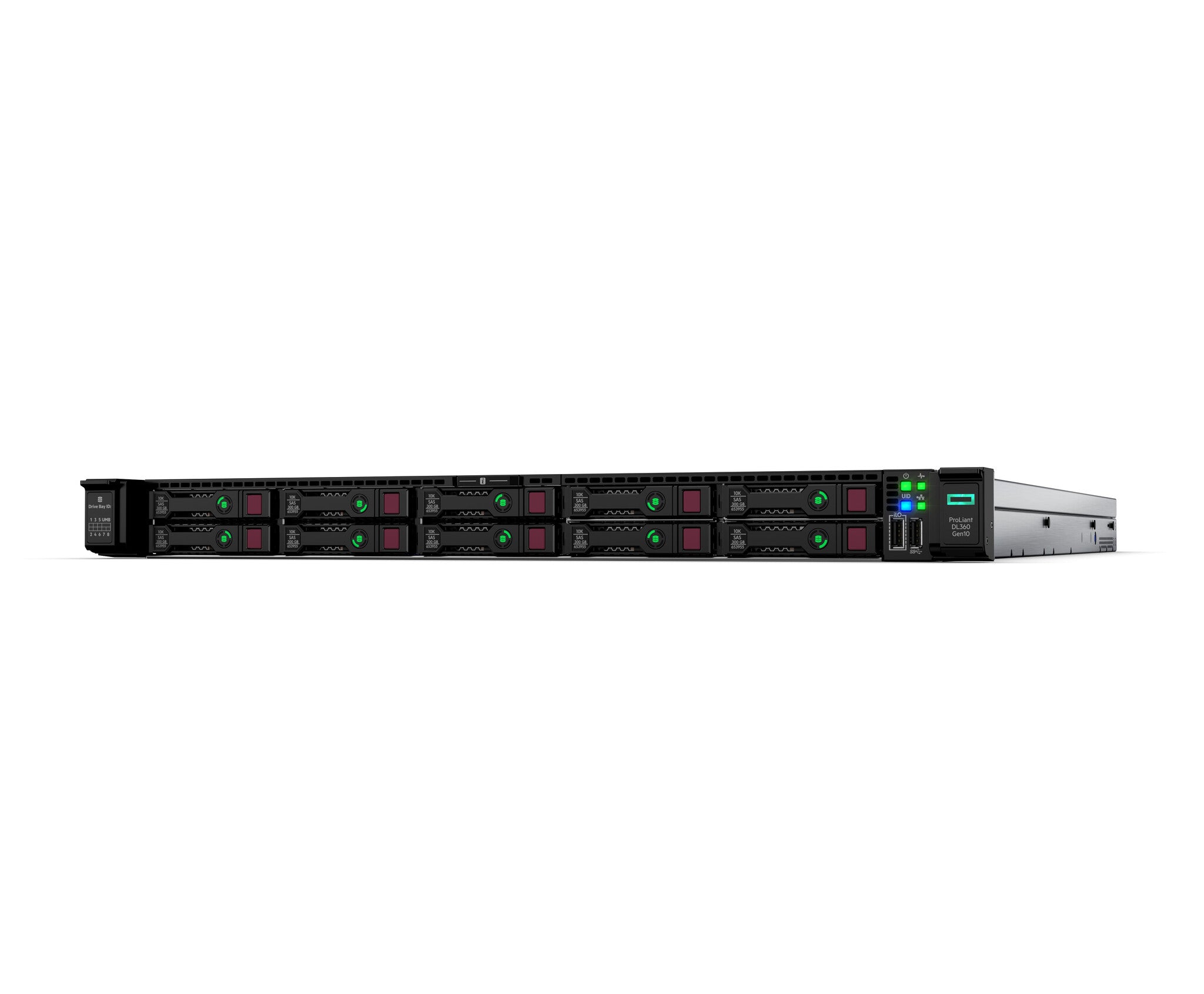

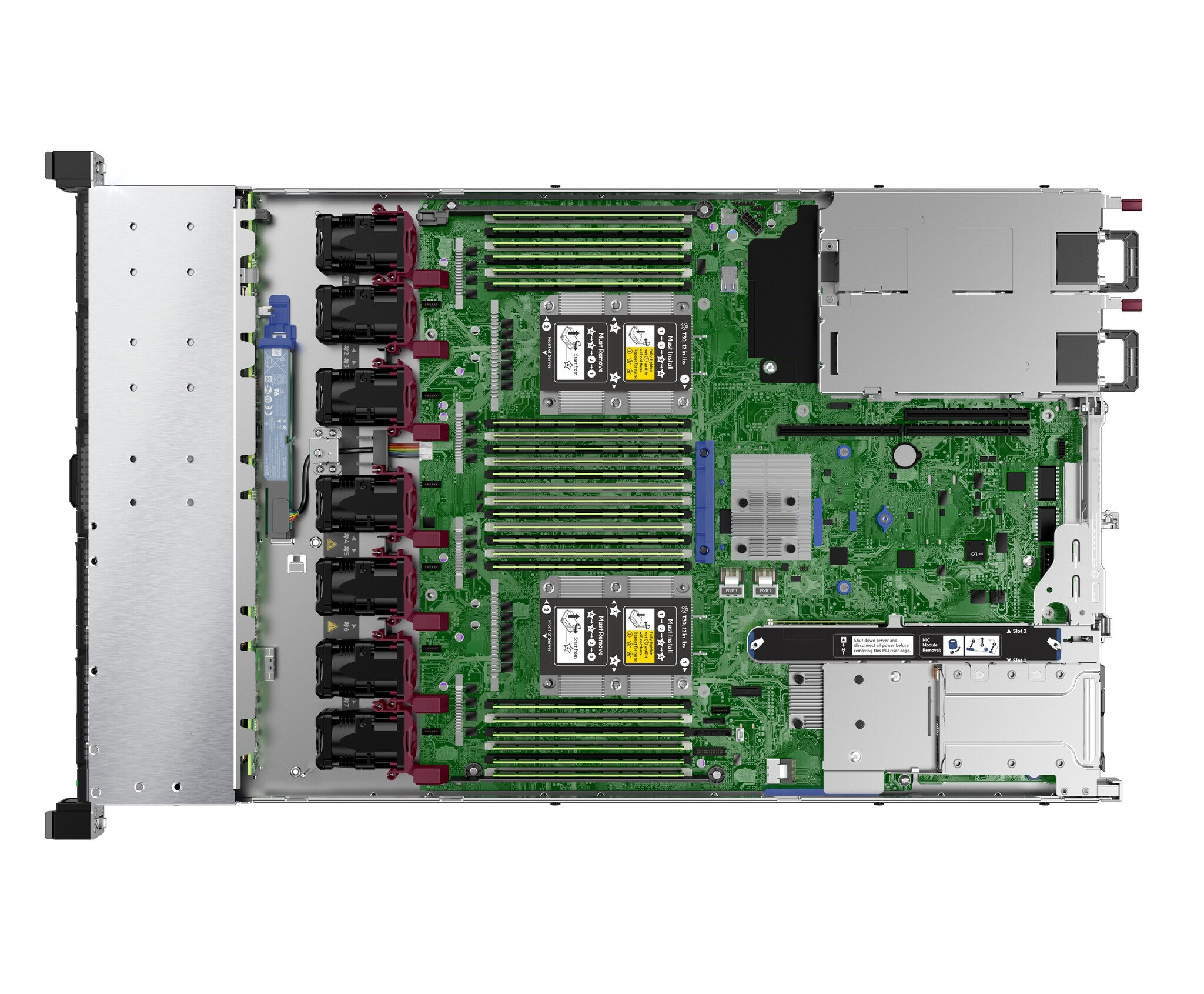

Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel Xeon Scalable processor with up to a 60% performance gain [1] and 27% increase in cores [2], along with 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB [2] with an increase in performance of up to 82% [3]. With the added performance that Intel Optane™ persistent memory 100 series for HPE [6], HPE NVDIMMs [7] and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). Deploy this 2P secure platform for diverse workloads in space constrained environments.

What is new supporting point:
HPE 800 Watt Flex Slot Titanium hot-plug power supply available for EMEA
Support for additional second generation Intel Xeon Scalable processors with improved price/performance.
Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
Intel Optane™ persistent memory 100 series for HPE offers the flexibility to deploy as dense memory or fast storage and enables per-socket memory capacity of up to 3.0 TB. [5]

Processor
Execute Disable Bit Yes
Embedded options available Yes
Maximum number of SMP processors 2
Number of processors installed 1
Motherboard chipset Intel® C621
Processor cache 13.75 MB
Processor cores 10
Processor boost frequency 3.2 GHz
Processor frequency 2.4 GHz
Processor model 4210R
Processor generation 2nd Generation Intel® Xeon® Scalable
Processor family Intel Xeon Silver
Processor manufacturer Intel
Memory
Maximum internal memory 1.53 TB
Memory slots 24x DIMM
Memory clock speed 2933 MHz
Memory layout (slots x size) 1 x 32 GB
Internal memory type DDR4-SDRAM
Internal memory 32 GB
Storage
Optical drive type No
Hot-Plug support Yes
Supported RAID controllers HPE MR416i-a Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G Controller
RAID levels 0, 1, 5, 6, 10, 50, 60
RAID support Yes
SSD interface PCI Express 4.0
Supported HDD sizes 2.5"
Number of HDDs supported 8
HDD interface SATA, Serial Attached SCSI (SAS)
Total storage capacity 0 GB
Maximum storage capacity 26.4 TB
Graphics
Maximum graphics card memory 16 MB
On-board graphics card Yes
Network
Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
Ports & interfaces
VGA (D-Sub) ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 5
Ethernet LAN (RJ-45) ports 4
Design
Rack mounting Yes
Chassis type Rack (1U)
Performance
Trusted Platform Module (TPM) Yes
Trusted Platform Module (TPM) version 2.0
Remote administration iLO 5 ASIC
Software
Compatible operating systems Windows Server 2022: Essentials, Standard, DatacenterWindows Server 2019: Essentials, Standard, DatacenterWindows Server 2016: Essentials, Standard, DatacenterWindows Server 2012 R2: Essentials, Standard, DatacenterMicrosoft Hyper-V Server: 2012 R2, 2016 & 2019VMware vSphere: 6.0 U3, 6.5 U2 through U.3 & 6.7 U1 through U3, 7.0ClearOS: 7.6; ClearVM: 2.0Red Hat Enterprise Linux (RHEL): 7.6 w/ Kbase **, 8.0SUSE Linux Enterprise Server (SLES): 12 SP3, 15 (includes Xen) **Ubuntu: 18.04 LTS (4.15.0)Oracle Linux: Oracle Linux 7.6 UEK Release 5 Update 2; Oracle VM 3.4.6 (UEK Release 4 Update 7)Citrix: Hypervisor: 8,0, 8.1, 8.2; XenServer 7.1, 7.4, 7.5, 7.6
Operating system installed No
Processor special features
Enhanced Intel SpeedStep Technology Yes
Intel Virtualization Technology for Directed I/O (VT-d) Yes
Intel Trusted Execution Technology Yes
Intel VT-x with Extended Page Tables (EPT) Yes
Intel 64 Yes
Intel Virtualization Technology (VT-x) Yes
Power
Number of main power supplies 1
Power supply 800 W
Redundant power supply (RPS) support Yes
General
Product family ProLiant
Product series DL
Sustainability
Sustainability certificates ENERGY STAR
Weight & dimensions
Depth 434.6 mm
Height 707 mm
Width 42.9 mm
