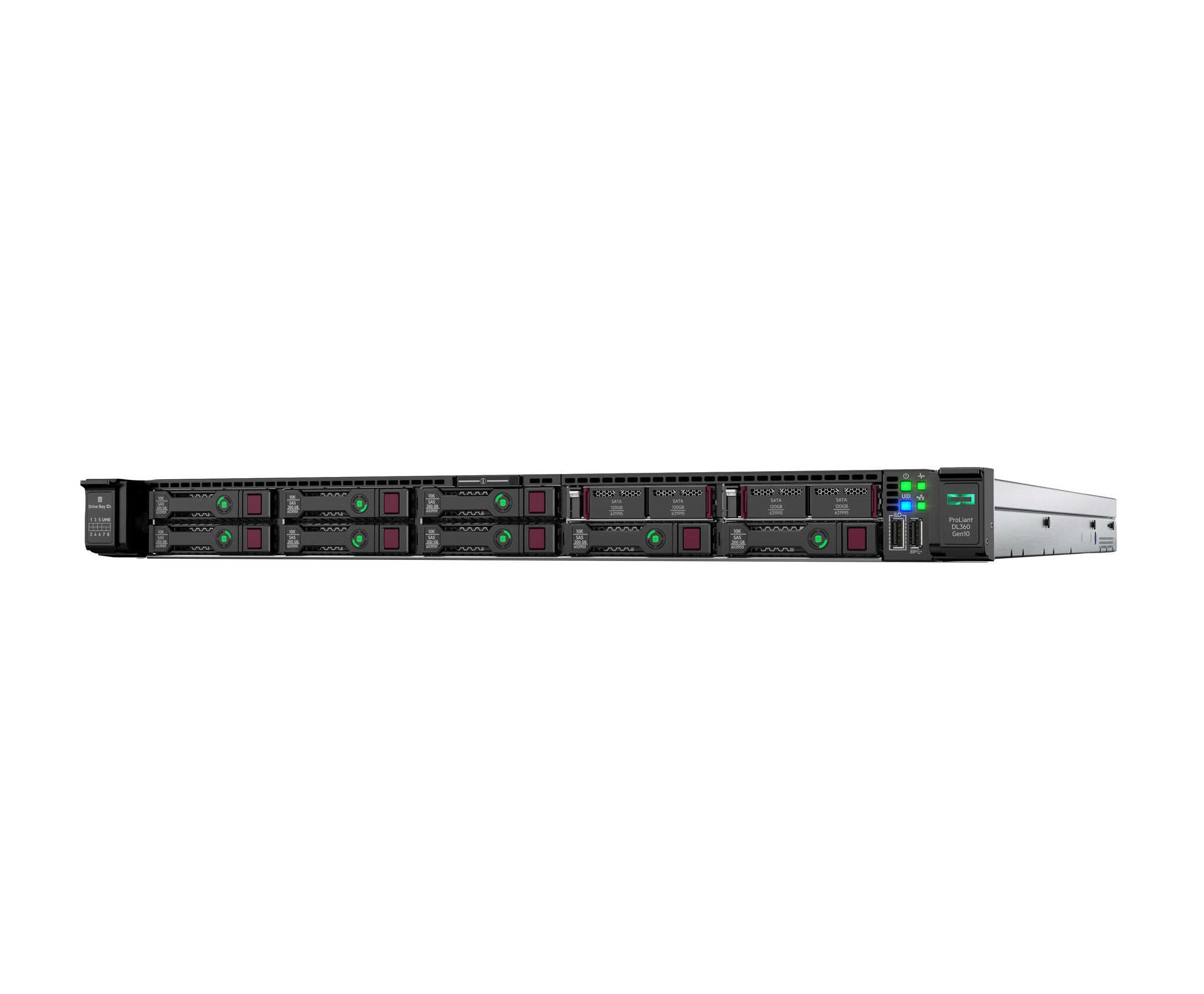

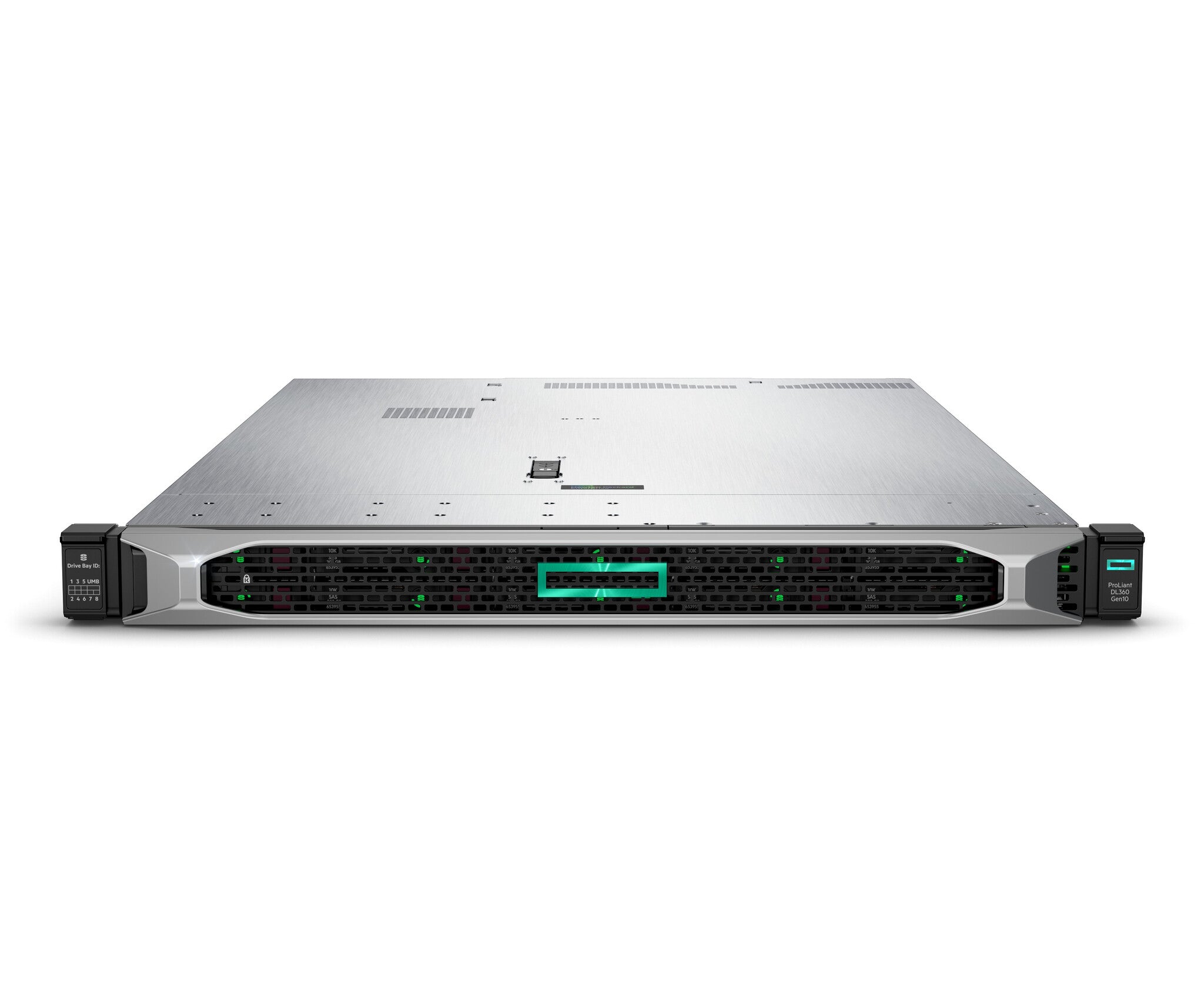

HPE ProLiant DL360 Gen10 4208 2.1GHz 8-core 1P 32GB-R MR416i-a 8SFF BC 800W PS Server
Couldn't load pickup availability
- Intel Xeon Silver 4208 2.1 GHz
- 32 GB 2933 MHz DDR4-SDRAM 1 x 32
- Rack (1U) 800 W
Does your data center need a secure, performance driven dense server that you can confidently deploy for virtualization, database, or high-performance computing? The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel Xeon Scalable processor with up to a 60% performance gain [1] and 27% increase in cores [2], along with 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB [2] with an increase in performance of up to 82% [3]. With the added performance that Intel Optane™ persistent memory 100 series for HPE [6], HPE NVDIMMs [7] and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). Deploy this 2P secure platform for diverse workloads in space constrained environments.
What is new supporting point:
Support for additional second generation Intel Xeon Scalable processors with improved price/performance.
HPE 800 Watt Flex Slot Titanium hot-plug power supply available for EMEA
Intel Optane™ persistent memory 100 series for HPE offers the flexibility to deploy as dense memory or fast storage and enables per-socket memory capacity of up to 3.0 TB. [5]
Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
| Processor | |
|---|---|
| Execute Disable Bit | Yes |
| Embedded options available | No |
| Maximum number of SMP processors | 2 |
| Processor cache type | L3 |
| Number of processors installed | 1 |
| Motherboard chipset | Intel® C621 |
| Processor cache | 11 MB |
| Processor cores | 8 |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2.1 GHz |
| Processor model | 4208 |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 1.53 TB |
| Memory slots | 24x DIMM |
| ECC | Yes |
| Memory clock speed | 2933 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Hot-Plug support | Yes |
| Supported RAID controllers | HPE MR416i-a Gen10 Plus x16 Lanes 4GB Cache NVMe/SAS 12G Controller |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| RAID support | Yes |
| SSD interface | PCI Express 4.0 |
| Number of SSDs installed | 8 |
| Supported HDD sizes | 2.5" |
| HDD interface | SATA, Serial Attached SCSI (SAS) |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 26.4 TB |
| Graphics | |
|---|---|
| Maximum graphics card memory | 16 MB |
| On-board graphics card | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| Expansion slots | 2 PCIe 3.0, for detailed descriptions reference the QuickSpecs |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Ethernet LAN (RJ-45) ports | 4 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| Management platform | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); Optional- HPE iLO Advanced, and HPE OneView Advanced (require licenses) |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Remote administration | iLO 5 ASIC |
| Software | |
|---|---|
| Compatible operating systems | Windows Server 2022: Essentials, Standard, DatacenterWindows Server 2019: Essentials, Standard, DatacenterWindows Server 2016: Essentials, Standard, DatacenterWindows Server 2012 R2: Essentials, Standard, DatacenterMicrosoft Hyper-V Server: 2012 R2, 2016 & 2019VMware vSphere: 6.0 U3, 6.5 U2 through U.3 & 6.7 U1 through U3, 7.0ClearOS: 7.6; ClearVM: 2.0Red Hat Enterprise Linux (RHEL): 7.6 w/ Kbase **, 8.0SUSE Linux Enterprise Server (SLES): 12 SP3, 15 (includes Xen) **Ubuntu: 18.04 LTS (4.15.0)Oracle Linux: Oracle Linux 7.6 UEK Release 5 Update 2; Oracle VM 3.4.6 (UEK Release 4 Update 7)Citrix: Hypervisor: 8,0, 8.1, 8.2; XenServer 7.1, 7.4, 7.5, 7.6 |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Power supply | 800 W |
| Power supply type | 1x HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
|---|---|
| Weight | 13 kg |
| Depth | 434.6 mm |
| Height | 707 mm |
| Width | 42.9 mm |
| Other features | |
|---|---|
| Standard fans | 5 standard hot plug fans |
| Storage drive type | None ship standard, 8 SFF supported |
| Dimensions (W x D x H) (imperial) | 42.9 x 434.6 x 706.9 mm (1.69 x 17.1 x 27.8") |
| Weight (imperial) | 13 kg (28.7 lbs) |
| Security features | Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0 |
| Number of processors supported | 1 |
