£9,042.99

Stock Available: 0
  • Intel Xeon Silver 4510 2.4 GHz
  • 64 GB 5600 MHz DDR5-SDRAM 2 x 32
  • Rack (1U) 1000 W

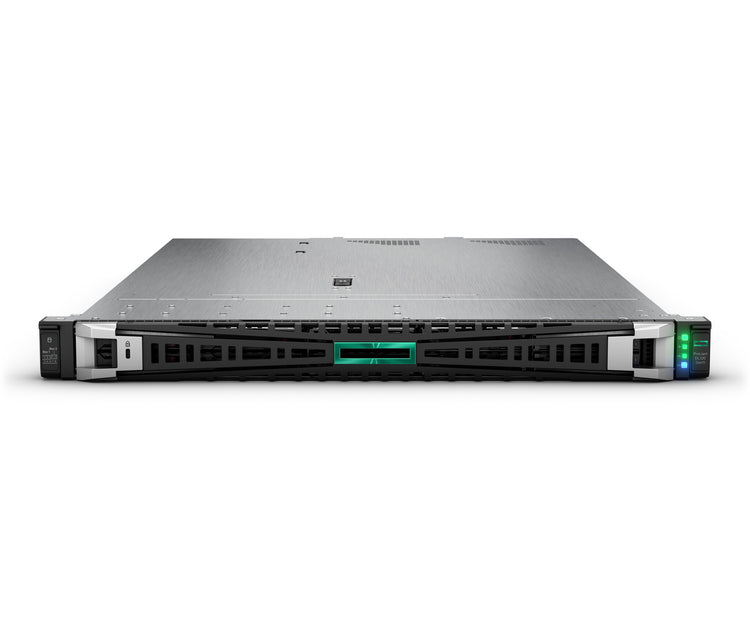

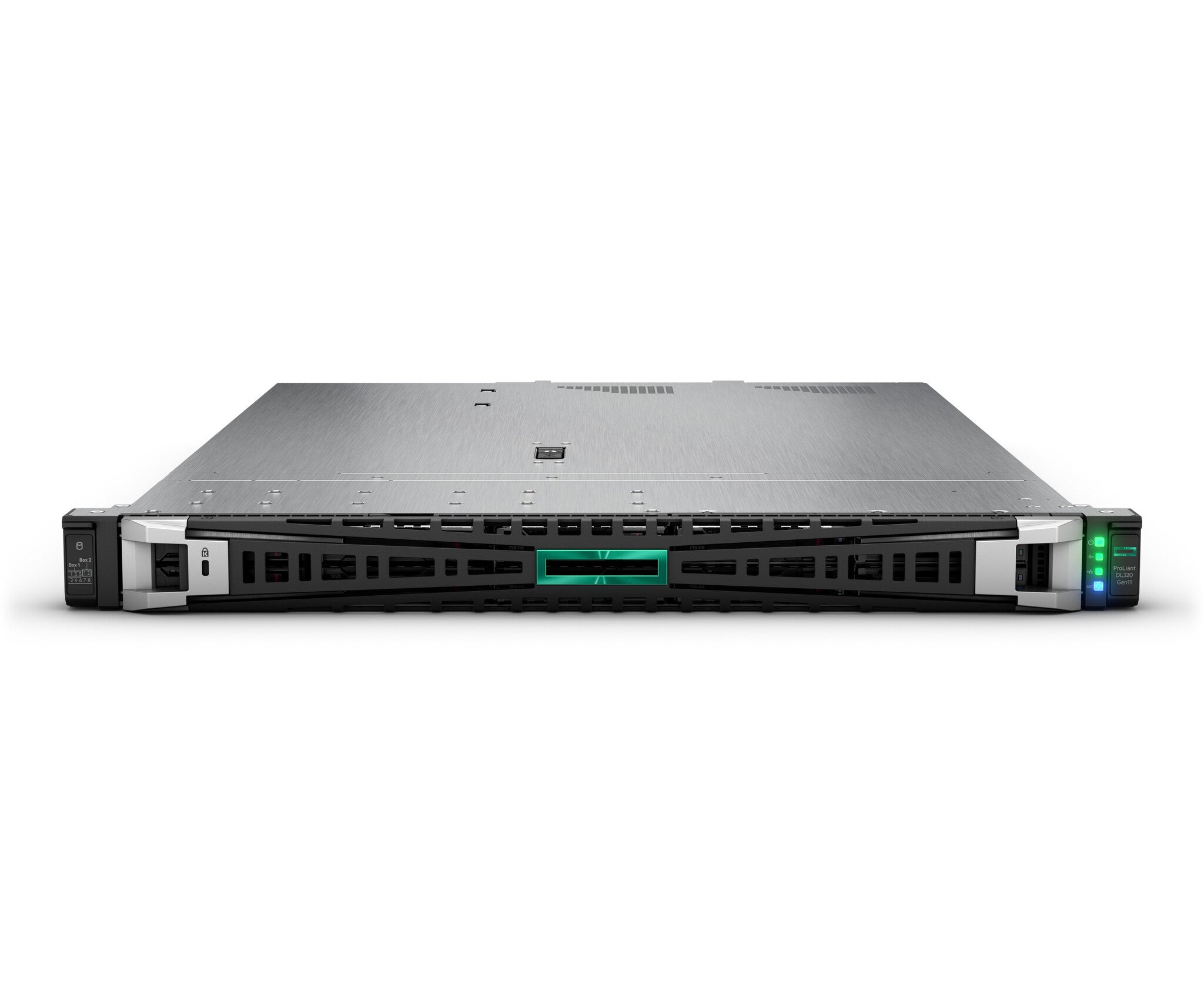

Are you looking to run edge AI workloads like Computer Vision that need GPU accelerators or distributed data solutions that require expandable storage? The HPE ProLiant DL320 Gen11 is a 1U 1P server with a unique compact design and workload-driven modular design that is purpose-built for edge computing delivering exceptional performance at 1P economics and an excellent choice for both virtualized and containerized workloads. Powered by 4th and 5th Gen Intel Xeon Scalable Processors with up to 60 cores, 270W, increased memory capability (up to 2 TB 5600 MT/s), and high-speed PCIe Gen5 supporting up to four single-wide GPUs (or two double-wide), the HPE ProLiant DL320 Gen11 server is a perfect low-cost, 1U 1P, performance solution. The HPE ProLiant Gen11 servers are engineered to optimize IT at the edge with a cloud operating experience, built-in security, and optimized performance for workloads to drive your business forward.

What is new supporting point:
Powered by the 4th and 5th Gen Intel Xeon Scalable Processors with next-generation 5nm technology that supports up to 60 cores at 270W and 16 DIMMs of DDR5 memory up to 5600 MT/s.
16 DIMMs per processor for up to 2 TB total DDR5 memory with increased memory bandwidth and performance, and lower power requirements.
Advanced data transfer rates and higher network speeds from the PCIe Gen5 serial expansion bus, with up to 2x16 PCIe Gen5 and 1 OCP 3.0 slots.
Includes the new HPE Integrated Lights-Out 6 (iLO 6) server management software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
Supports hot-pluggable or internal, high-availability RAID1 NVMe M.2 boot options.
Support for up to four single-wide or two double-wide GPUs in the front cage with the GPU CTO server.

Processor
Processor manufacturer Intel
Processor family Intel Xeon Silver
Processor generation Intel Xeon Scalable 5th Gen
Processor model 4510
Processor frequency 2.4 GHz
Processor boost frequency 4.1 GHz
Processor cores 12
Processor cache 30 MB
Number of processors installed 1
Processor cache type L3
Memory
Internal memory 64 GB
Internal memory type DDR5-SDRAM
Memory layout (slots x size) 2 x 32 GB
Memory clock speed 5600 MHz
Memory slots 16x DIMM
Maximum internal memory 2 TB
Storage
Supported SSD sizes 2.5"
Number of SSDs supported 8
RAID support Yes
Supported RAID controllers HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device HPE MR408i-o Gen11 x8 Lanes 4GB Cache OCP SPDM Storage Controller
Optical drive type No
Graphics
On-board graphics card No
On-board graphics card model Not available
Network
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
VGA (D-Sub) ports quantity 1
Expansion slots Maximum, 2 PCIe Gen5 & 1 OCP 3.0 PCIe Gen5, for detail descriptions please refer to the QuickSpecs.
Design
Chassis type Rack (1U)
Product colour Black
Rack mounting Yes
Performance
Management platform Included - HPE Compute Ops Management, HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional - HPE iLO Advanced, and HPE OneView Advanced.
Trusted Platform Module (TPM) Yes
Software
Operating system installed No
Power
Redundant power supply (RPS) support Yes
Power supply type 2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit
Power supply 1000 W
Number of main power supplies 2
General
Product series DL
Product family ProLiant
Weight & dimensions
Width 605.1 mm
Height 42.8 mm
Depth 434.6 mm
Weight 25.8 kg
Other features
Number of processors supported 1
Security features UEFI Secure Boot and Secure Start support. Intel Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, TPM, Chassis Intrusion detection and Bezel Locking kits.
Weight (imperial) 25.8 kg (56.9 lbs)
Dimensions (W x D x H) (imperial) 599.9 x 915.9 x 241 mm (23.6 x 36.1 x 9.49")
Storage drive type None ship standard, 8 SFF supported
Standard fans 7x High Performance Fans
