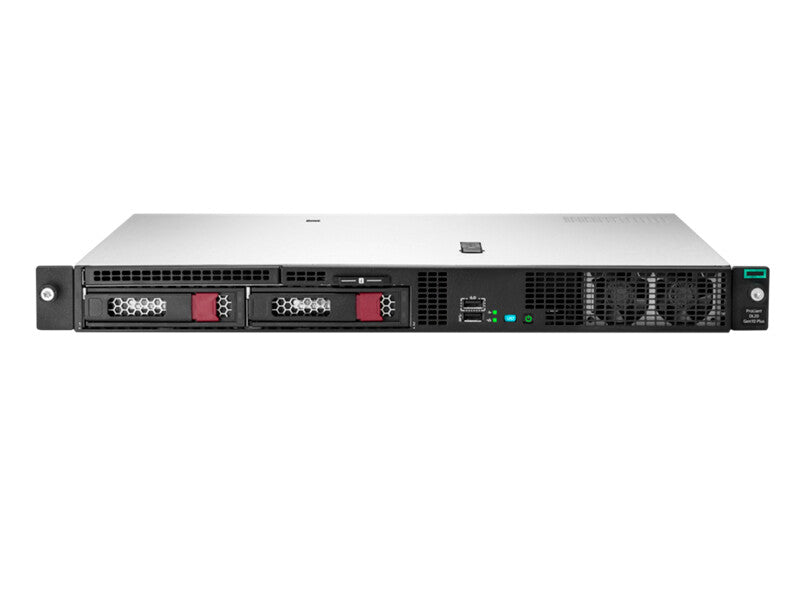

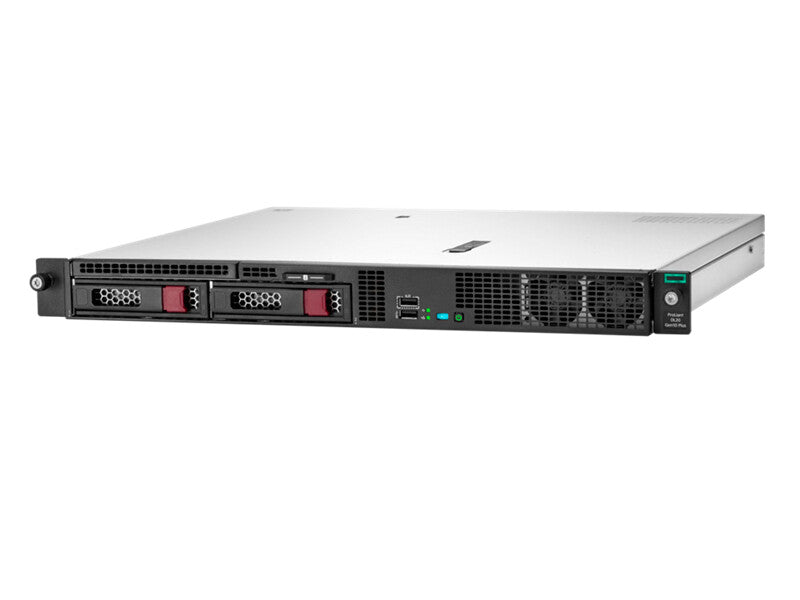

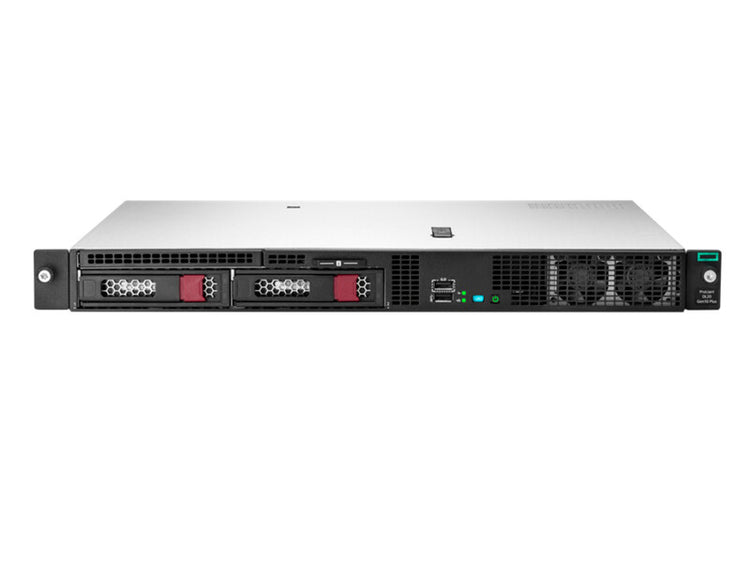

HPE ProLiant DL20 Gen10 Plus server Rack (1U) Intel Xeon E E-2314 2.8 GHz 16 GB DDR4-SDRAM 290 W
£2,690.69
Couldn't load pickup availability
- Intel Xeon E E-2314 2.8 GHz
- 16 GB 3200 MHz DDR4-SDRAM 1 x 16
- Rack (1U) 290 W
Compact, Secure, and Reliable Design for an Affordable Solution
HPE ProLiant DL20 Gen10 Plus server is a short-depth chassis of 15.05 inches, providing mobility and easy deployment in a wide variety of environments.
HPE ProLiant DL20 Gen10 server has great quality and design features that are a hallmark of the HPE ProLiant family such as tool-less access to system components and enhanced serviceability.
Handle light workloads up to the some of the most demanding requirements with affordable configuration choices and a wide variety of HPE Qualified Options.
| Processor | |
|---|---|
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor cache | 8 MB |
| Processor cores | 16 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 2.8 GHz |
| Processor model | E-2314 |
| Processor family | Intel Xeon E |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 128 GB |
| Memory slots | 4x DIMM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| RAID support | Yes |
| HDD interface | Serial Attached SCSI (SAS) |
| Maximum storage capacity | 36 TB |
| Network | |
|---|---|
| LAN controller | Broadcom BCM5720 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Chassis type | Rack (1U) |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2019: Essentials, Standard, Datacenter, Hyper-VMicrosoft Windows Server 2022: Essentials, Standard, DatacenterRed Hat Enterprise Linux (RHEL): 8.4 (64 bit, includes KVM)SUSE Linux Enterprise Server (SLES): 12 SP5, 15 SP3 (64 bit, includes KVM & Xen)VMware ESXi: 7.0 U3 |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Power supply input frequency | 50/60 Hz |
| Power supply input voltage | 100 - 240 V |
| Power supply | 290 W |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Depth | 382.2 mm |
| Height | 43.2 mm |
| Width | 434.6 mm |
