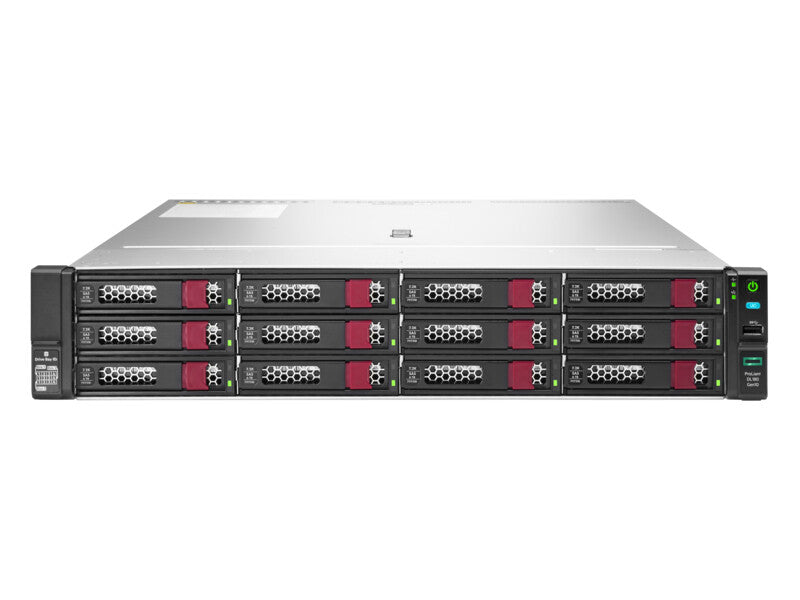

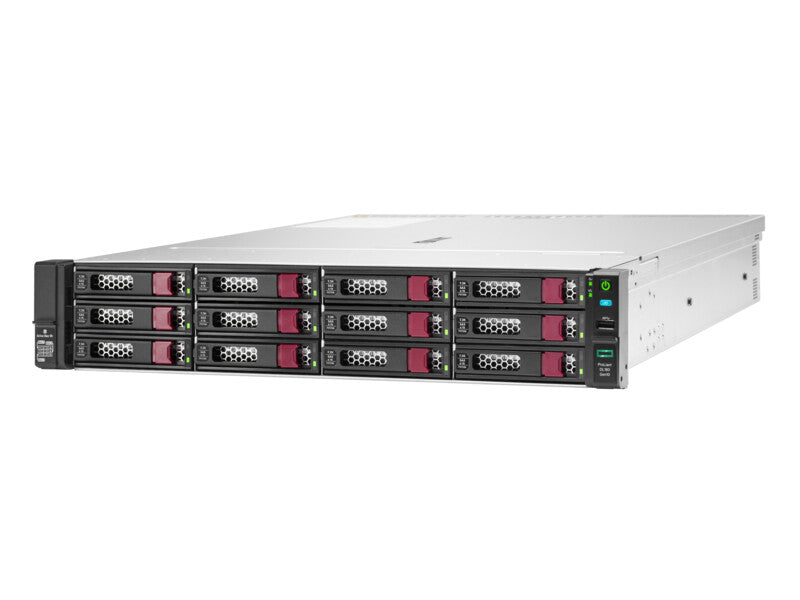

HPE ProLiant DL180 Gen10 server 0 GB Rack (2U) Intel Xeon Silver 4208 2.1 GHz 16 GB DDR4-SDRAM 500 W
Couldn't load pickup availability
- Intel Xeon Silver 4208 2.1 GHz
- 16 GB 2933 MHz DDR4-SDRAM
- Rack (2U) 500 W
Is maximizing your business reach and goal a challenge you are facing because your IT is not keeping pace with your data growth? The secure HPE ProLiant DL180 Gen10 server delivers on scalability, performance, and reliability thus making it the ideal platform for businesses ready to run on-premises and hybrid cloud applications. These businesses need the right mix of compute and storage, enabling them to achieve their most important goals.
What's new
- Eight (8) LFF drive chassis supporting SAS/SATA HDDs with max 32 TB storage
- Enhanced iLO 5 security features such as locking server hardware configuration, iLO security dashboard and workload performance advisor
- Available aggressively priced SMB offer models regionally released as “Smart Buy Express” in the U.S. and Canada, “Top Value” in Europe, and “Intelligent Buy” in Asia Pacific.
Features
Dense Storage at Optimal Performance for Web Infrastructure and Service Providers
- The flexible design provides choice of options and ability to scale. It is configured to meet the new standard of growing data center needs. The server supports Intel® Xeon® Scalable Processor series, up to eight cores (maximum 24) with 16 DDR4 2666 MHz (256 GB maximum).
- Two PCIe 3.0 slots and HPE iLO 5, UEFI and legacy boot mode, along with the standard HPE Dynamic Smart Array S100i. You have a choice of HPE Flexible Smart Array or HPE Smart HBA controllers for performance or additional features.
- 500W multi-output, up to 94% efficiency (Titanium), Flexible Slot PS; Standard 3-3-3 warranty; HPE Secure Encryption.
Comprehensive and Cost-effective Management
- HPE ProLiant DL180 Gen10 server offers comprehensive firmware management with HPE iLO5 that includes install sets created by Smart Update Manager (SUM). It has the ability to create multiple rollback sets and ability to view and delete scheduled jobs at no additional licensing cost.
- Scalable and reliable model to run multi-workload for better business performance and growing Data center needs. Cost optimization, reliability and expandability for cloud and virtualization requirements. Setting security standards making it the most secure Industry standard server portfolio.
| Processor | |
|---|---|
| Maximum internal memory supported by processor | 1 TB |
| Execute Disable Bit | Yes |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| Processor codename | Cascade Lake |
| Tcase | 78 °C |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
| Maximum number of PCI Express lanes | 48 |
| Processor package size | 76.0 x 56.5 mm |
| Supported instruction sets | AVX-512 |
| Scalability | 2S |
| Embedded options available | No |
| Maximum number of SMP processors | 2 |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 85 W |
| Number of processors installed | 1 |
| Motherboard chipset | Intel C622 |
| Processor cache | 11 MB |
| Processor cores | 8 |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2.1 GHz |
| Processor model | 4208 |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 1 TB |
| Memory slots | 16x DIMM |
| ECC | Yes |
| Memory clock speed | 2933 MHz |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| Hot-Plug support | Yes |
| RAID levels | 0, 1, 1 ADM, 5, 6, 10 ADM, 10, 50, 60 |
| RAID support | Yes |
| Supported HDD sizes | 3.5" |
| Number of HDDs supported | 12 |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 144 TB |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Black, Silver |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Remote administration | iLO 5 ASIC |
| Software | |
|---|---|
| Compatible operating systems | Windows Server 2019Windows Server 2016VMware vSphere 6.0 U3VMware vSphere 6.5 U3VMware vSphere 6.7 U3Red Hat Enterprise Linux (RHEL) 7.6 (w/ Kbase)Red Hat Enterprise Linux (RHEL) 8.0SUSE Linux Enterprise Server 12 SP4SUSE Linux Enterprise Server 15 SP1 |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 193390 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Power supply | 500 W |
| Redundant power supply (RPS) support | Yes |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84714100 |
| Weight & dimensions | |
|---|---|
| Weight | 13 kg |
| Depth | 634.7 mm |
| Height | 87.4 mm |
| Width | 445.4 mm |
