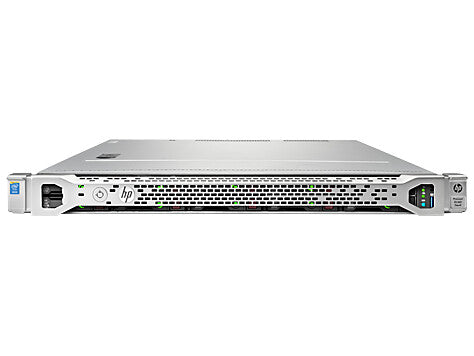

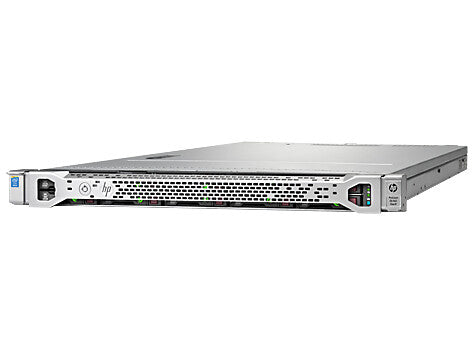

HPE ProLiant DL160 Gen9 server 0 GB Rack (1U) Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz 16 GB DDR4-SDRAM 550 W
Couldn't load pickup availability
- Intel® Xeon® E5 v4 E5-2620V4 2.1 GHz
- 16 GB 2400 MHz DDR4-SDRAM 1 x 16
- Rack (1U) 550 W
Do you need a server with essential features for your IT environment, which is constrained by budget, space or IT resources? The HP ProLiant DL160 Gen9 Server delivers the right balance of performance, storage, reliability, manageability and efficiency in a dense and compact chassis, to meet the needs of a diverse set of customers - from SMBs to service providers with a wide range of deployments - from general purpose IT infrastructure to the emerging "New Style of IT" deployments like cloud and big data in distributed computing environments.
Features
Essential Combination of Performance, Manageability and Storage for the IT Needs of SMBs
- The HP ProLiant DL160 Gen9 offers 16 DIMM slots of HP DDR4 SmartMemory, with built-in intelligence to reduce downtime and up to 14% 1 better throughput performance.
- Embedded management to deploy, monitor and support your server remotely, out of band with HP iLO makes it easier to manage complex IT environments thereby minimizing the IT resource requirements.
- Supports up to two (2) Intel® Xeon® processor E5-2600 v3 processors offering improved performance and efficiency.
- HP SmartDrives continue to deliver optimal performance, capacity, and reliability to meet various customer segments and workload requirements at the right economics. Supports up to four (4) LFF and eight (8) SFF 12 Gb/s with flexibility of four (4) LFF NHP option.
- Embedded SATA HP Dynamic Smart Array B140i Controller for boot and data. Choice of HP Smart Array Controllers with increased performance, data availability with the 12Gb/s SAS technology or HP Smart HBAs with reliable high performance SAS connectivity capable of running HBA mode or simple RAID mode.
Scalability and Efficiency in a Dense Design for Hyperscale Environments
- The HP ProLiant DL160 Gen9 offers dense and efficient design at a price point that provides agile horizontal expansion capability for distributed computing environments like Hadoop, NoSQL to cope-up with fast growing business needs.
- Standard with 2x1GbE, up to three (3) PCIe slots and choice of HP FlexibleLOM 2 provide you flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
- Up to 94% 2 efficient 80 PLUS certified entry-level HP Power Supplies and ENERGY STAR® 2 qualified server configurations illustrate a continued commitment to helping customers conserve energy and save money.
- Improved ambient temperature standard with ASHRAE A3 and A4 3 helps customers reduce cooling expense.
Agile Infrastructure Management for Accelerating IT Service Delivery
- With HP ProLiant DL160 server, HP OneView 4 provides converged management for automation simplicity across servers, storage and networking.
- Online personalized dashboard for converged infrastructure health monitoring and support management with HP Insight Online.
- Configure in UEFI boot mode, provision local and remote with Intelligent Provisioning and Scripting Toolkits.
- Embedded management to deploy, monitor and support your server remotely, out of band with HP iLO and optimize firmware and driver updates and reduce downtime with HP Smart Update, consisting of HP SUM and SPP.
| Processor | |
|---|---|
| Conflict-Free processor | Yes |
| Stepping | R0 |
| Thermal Monitoring Technologies | Yes |
| Processor code | SR2R6 |
| Maximum internal memory supported by processor | 1.54 TB |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 14 nm |
| Processor threads | 16 |
| Processor operating modes | 64-bit |
| Processor codename | Broadwell |
| Tcase | 74 °C |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Maximum number of PCI Express lanes | 40 |
| Processor package size | 45 x 52.5 mm |
| Supported instruction sets | AVX 2.0 |
| Scalability | 2S |
| Embedded options available | Yes |
| Number of QPI links | 2 |
| Memory bandwidth supported by processor (max) | 68.3 GB/s |
| ECC supported by processor | Yes |
| Physical Address Extension (PAE) | Yes |
| Processor series | Intel Xeon E5-2600 v4 |
| Bus type | QPI |
| System bus rate | 8 GT/s |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 85 W |
| Number of processors installed | 1 |
| Memory channels supported by processor | Quad |
| Motherboard chipset | Intel C610 |
| Processor cache | 20 MB |
| Processor cores | 8 |
| Processor boost frequency | 3 GHz |
| Processor frequency | 2.1 GHz |
| Processor model | E5-2620V4 |
| Processor family | Intel® Xeon® E5 v4 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 512 GB |
| Memory slots | 16x DIMM |
| ECC | Yes |
| Memory clock speed | 2400 MHz |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| RAID levels | 0, 1, 5 |
| RAID support | Yes |
| Number of HDDs supported | 8 |
| HDD size | 2.5" |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 16 TB |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Chassis type | Rack (1U) |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows ServerRed Hat Enterprise Linux (RHEL)SUSE Linux Enterprise Server (SLES)Oracle SolarisVMware |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | Yes |
| Intel Enhanced Halt State | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 92986 |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel Flex Memory Access | No |
| Intel Demand Based Switching | Yes |
| Intel Identity Protection Technology version | 0.00 |
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Number of main power supplies | 1 |
| Power supply | 550 W |
| Redundant power supply (RPS) support | No |
| General | |
|---|---|
| Product family | ProLiant |
| Product series | DL |
| Weight & dimensions | |
|---|---|
| Weight | 10.2 kg |
| Depth | 607.6 mm |
| Height | 43.5 mm |
| Width | 434.6 mm |
| Other features | |
|---|---|
| Graphics card | G200eH2 |
| Graphics card family | Matrox |
