£328.99

Stock Available: 0
  • Managed L3 Web-based management
  • Quality of Service (QoS) support
  • Basic switching RJ-45 Ethernet ports quantity: 24
  • 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 8000 entries Switching capacity: 52 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power supply included

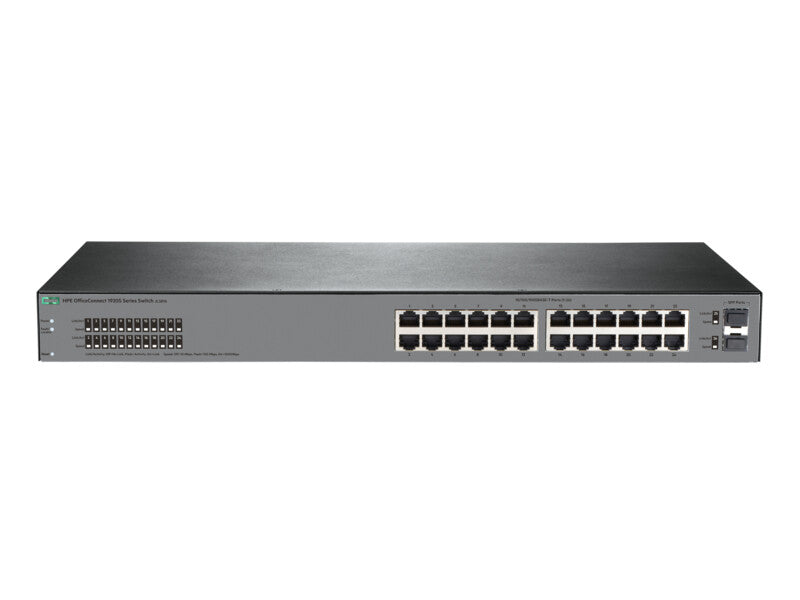

The HPE OfficeConnect 1920S Switch Series, is designed for small businesses that require enhanced performance to support bandwidth-demanding applications. They are ideal for environments that require advanced features for granular control and where smart-managed flexibility is a must for easy network configuration and management. The switches are advanced smart-managed fixed configuration Gigabit switches that are optimized for small business price/performance. They offer 8-, 24- and 48-port configurations, choice of PoE+ and non-PoE+ models; some include SFP slots for fiber connectivity.

Features

Simplifies Network Deployment and Management for Small Organizations
- The HPE OfficeConnect 1920S Switch Series features easy-to-use, out of the box, plug-and-play deployment.
- The series offers a complete portfolio of choices for increased small business flexibility. It consists of six rack-mountable models including 8G-, 24G- and 48G-port with and without PoE+. The 24G- and 48G-port PoE+ models offer SPF fiber connectivity.
- These smart-managed switches use an intuitive Web management interface, to simplify deployment and management while offering granular control of key features.

Keeps Your Business Protected with Enhanced Security
- The HPE OfficeConnect 1920S Switch Series supports Energy Efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
- Enhanced security features such as Access Control List, IEEE 802.1x and VLANs guard your network from unwanted or unauthorized access.
- Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection and supports secure http (https).

Delivers Better Performance at a Lower Total Cost of Ownership
- The HPE OfficeConnect 1920S Switch Series delivers advanced functionality in smart-managed switches, including Layer 3 static routes, SFP ports, rate limiting, link aggregation and IGMP.
- The switch series includes PoE+ options to power IP devices without the cost of additional cabling.
- Green features like port shutdown and Energy Efficient Ethernet compliance for greater energy-efficiency.
- The switch series is covered by the Limited Lifetime Warranty with 24x7 phone support for 90 days and business hours thereafter.

Management features
Switch type Managed
Switch layer L3
Quality of Service (QoS) support Yes
Web-based management Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
SFP module slots quantity 2
Network
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
10G support No
Copper ethernet cabling technology 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring Yes
Full duplex Yes
Rate limiting Yes
Spanning tree protocol Yes
Auto-sensing Yes
Auto MDI/MDI-X Yes
Flow control support Yes
VLAN support Yes
Data transmission
MAC address table 8000 entries
Switching capacity 52 Gbit/s
Throughput 38.6 Mpps
Latency (10-100 Mbps) 7 µs
Latency (1 Gbps) 2 µs
Jumbo frames support Yes
Packet buffer memory 1.5 MB
Security
DHCP features DHCP client
Access Control List (ACL) Yes
IGMP snooping Yes
SSH/SSL support Yes
Design
Rack mounting Yes
Stackable Yes
Form factor 1U
Product colour Grey
Performance
Built-in processor Yes
Processor frequency 400 MHz
Memory type SDRAM
Internal memory 256 MB
Flash memory 64 MB
Power
Power supply included Yes
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (typical) 11.6 W
Power consumption (max) 15.7 W
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 15 - 95%
Storage relative humidity (H-H) 15 - 95%
Weight & dimensions
Width 442.5 mm
Depth 246.1 mm
Height 43.9 mm
Weight 2.72 kg
Logistics data
Harmonized System (HS) code 85176990
