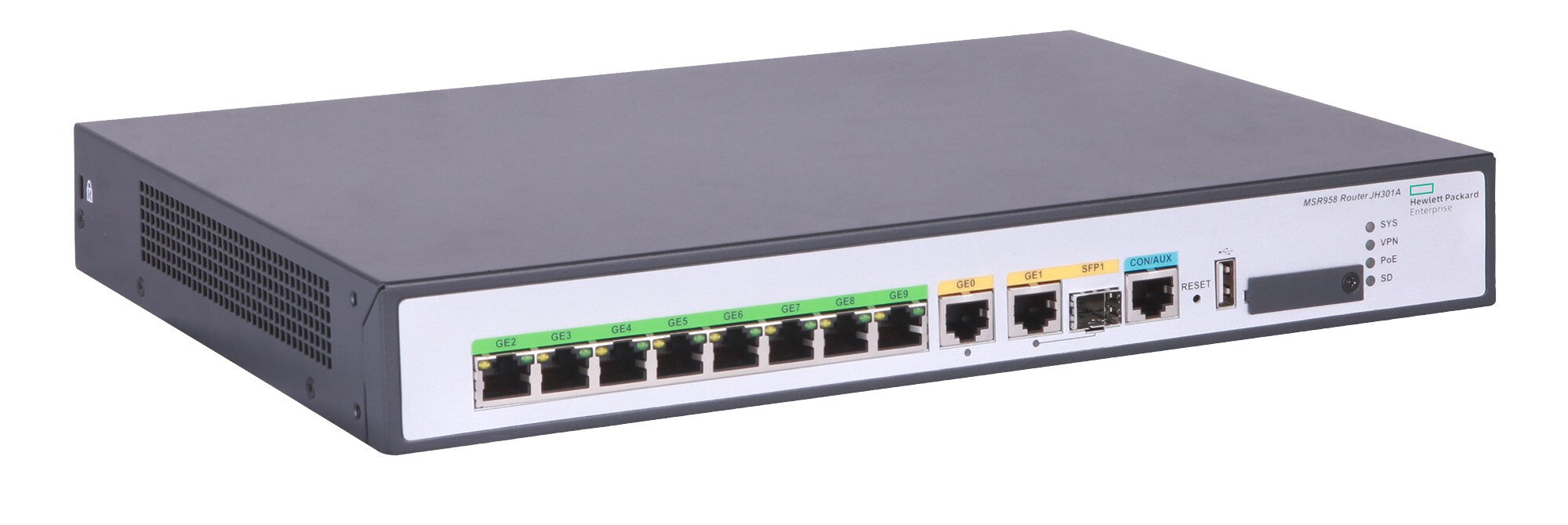

HPE Networking Comware Router 10GbE and Combo MSR958X
Couldn't load pickup availability
- Ethernet WAN SFP WAN 3G/4G USB modem compatibility
- IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- Gigabit Ethernet
The HPE Networking Comware Router Series MSR95x delivers high-performance, small branch routing in a single, cost-optimized form factor. Featuring integrated routing, switching, wireless, security, and voice with no additional licensing, boost your service delivery while simplifying the management of the corporate wide area network (WAN). This series is flexible to deploy, with Zero Touch Provisioning and WAN options with LTE connectivity. With Comware v7 and fiber connections, the MSR95x also brings the performance and advanced services available on modular routers, such as IPS and high encryption, to a fixed port form factor.
What is new supporting point:
The new HPE Networking Comware Router MSR958X router supports 10GbE ports with Comware v9 OS
Converged high-performance fiber routing, switching, security, and 3 Mpps performance
Integrated 1/10GbE, WAN and LAN, fiber (SFP)
Integrated 4G LTE, 3G as well as IEEE 802.11b/g/n WLAN in one box
Embedded encryption, stateful firewall, NAT, ADVPN security features
Unified Comware v7 OS, Comware v7 OS zero-touch solution, and single-pane-of-glass management
| WAN connection | |
|---|---|
| SFP WAN | Yes |
| 3G/4G USB modem compatibility | Yes |
| SIM card slot | No |
| Ethernet WAN | Yes |
| Network | |
|---|---|
| Forwarding rate | 3 Mpps |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Mobile network | |
|---|---|
| 4G standard | LTE |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| Number of console ports | 1 |
| Combo SFP ports quantity | 2 |
| SFP module slots quantity | 2 |
| Ethernet LAN (RJ-45) ports | 8 |
| Protocols | |
|---|---|
| Management protocols | SNMPv1, SNMPv2, SNMPv3, RMON |
| Security | |
|---|---|
| MAC address table | 200000 entries |
| Features | |
|---|---|
| Internal memory | 2048 MB |
| Flash memory | 4096 MB |
| Processor frequency | 1600 MHz |
| Processor manufacturer | Marvell |
| Built-in processor | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Product colour | Grey |
| Power | |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 36 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.2 kg |
| Height | 43.6 mm |
| Depth | 161 mm |
| Width | 266 mm |
