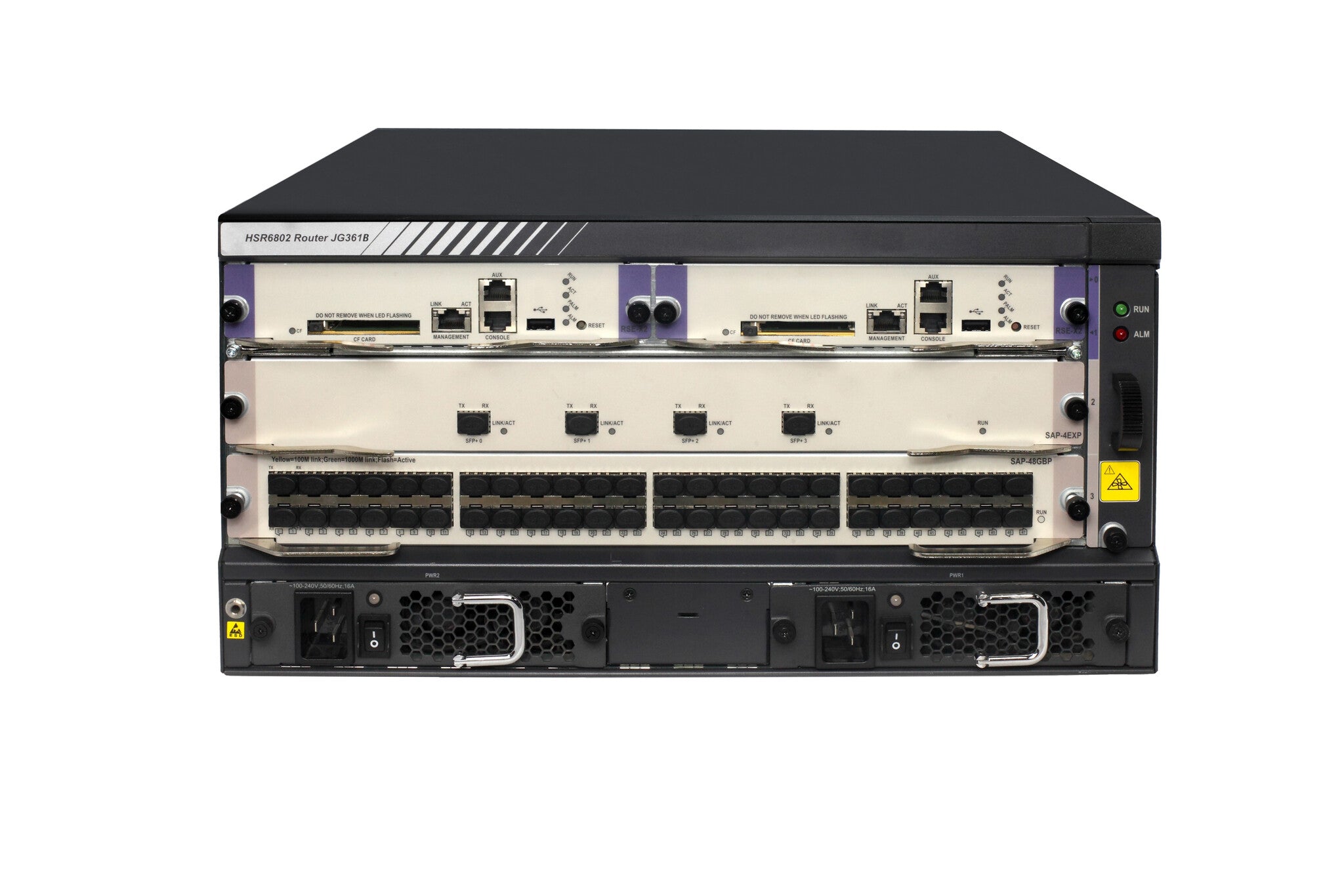

HPE Networking Comware HSR6802 Router Chassis
Couldn't load pickup availability
- Open frame
- Rack mounting
- 521 W
The HPE Networking Comware Router Series HSR6800 is a family of high-performance, multiservice routers designed for data center interconnection, enterprise WAN core, campus WAN edge, and high-speed WAN aggregation services. It runs the Comware operating system and features an advanced multi-core, distributed service processing hardware architecture that scales up to 420 Mpps forwarding and up to 2 Tbps switching capacity. The router delivers robust routing, multicast, Multiprotocol Label Switching (MPLS), IPv6, security, quality of service, carrier-level high-availability features, and high-density 10 GbE and 1 GbE interface options.
What is new supporting point:
RT-HIM-2EXP doubles HIM 10 GbE port density and supports SFP+.
Line cards offer 1 GbE combo/10 GbE ports, increased IPsec performance.
FIP-240 doubles FIP-210 forwarding performance, up to 4 HIM/MIM slots.
Feature enhancements including ADVPN, IRF2, EVI, EAA, and ISSU.
Fully modular Comware v7 network operating system offers improved performance and system availability.
| Technical details | |
|---|---|
| Electromagnetic immunity | ETSI EN 300 386 V1.3.3; KN24; EN 55024, CISPR 24 |
| Throughput | 420 Mpps; Maximum, depending on model and configuration |
| Management platform | command-line interface; out-of-band management; SNMP Manager; Telnet; RMON1; terminal interface (serial RS-232C); Ethernet Interface MIB |
| Electromagnetic compatibility | EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 301 489-1; EN 301 489-17; ICES-003 Class A; CISPR 24; EN 61000-6-1; AS/NZS CISPR 22 Class A; EN 61000-3-2; EN 61000-3-3; FCC (CFR 47, Part 15) Class A; KN22 Class A; VCCI-3 CLASS A; VCCI-4 CLASS A; ETSI EN 300 386 |
| Mounting | EIA standard 19 in. rack |
| Rack mounting | Yes |
| Frame type | Open frame |
| Ports & interfaces | |
|---|---|
| I/O ports | 8 SAP slots, or 16 HIM slots, or 32 MIM slots, or a combination; Maximum, depending on model and configuration |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 521 W |
| Weight & dimensions | |
|---|---|
| Weight | 22.8 kg |
| Width | 436 mm |
| Depth | 482 mm |
| Height | 220 mm |
