  • Up to 5 Mpps forwarding performance; support for multiple concurrent services
  • HPE Open Application Platform (OAP) for HPE AllianceOne applications
  • Embedded security features with hardware-based encryption, stateful firewall, network address
  • translation (NAT), and virtual private networks (VPNs)
  • No additional licensing complexity; no cost for advanced features
  • Zero-touch solution, with single-pane-of-glass management

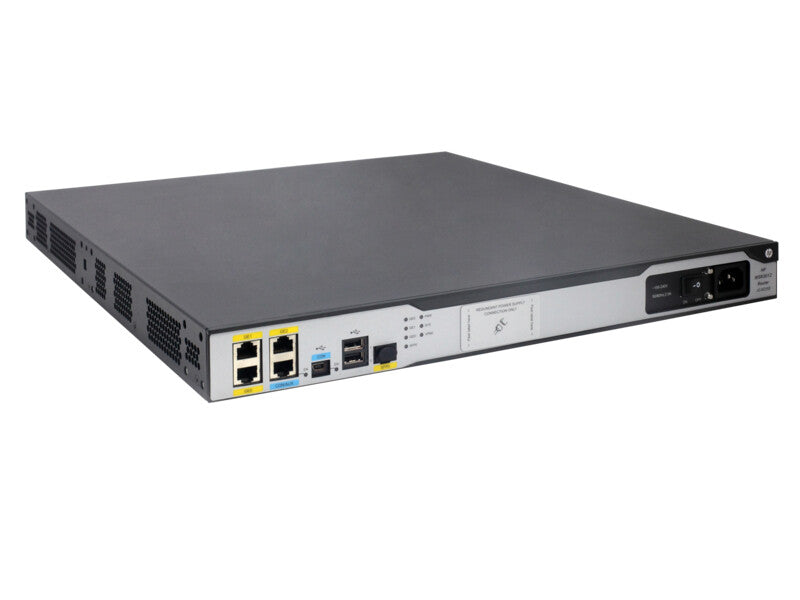

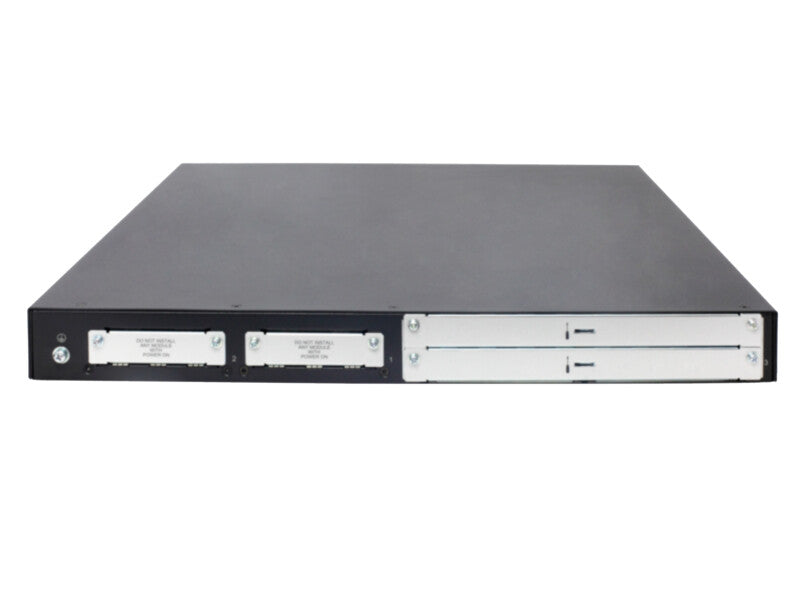

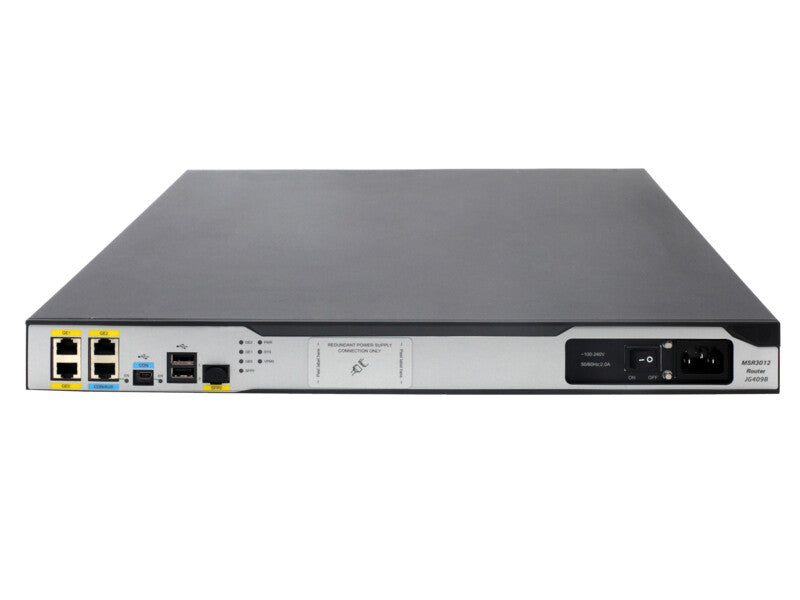

The HPE MSR3000 Router Series, the next generation of router from Hewlett Packard Enterprise (HPE),
is a component of the HPE FlexBranch solution, which is a part of the comprehensive
HPE FlexNetwork architecture. These routers feature a modular design that delivers unmatched
application services for medium- to large-sized branch offices. This gives your IT personnel the
benefit of reduced complexity, and simplified configuration, deployment, and management.
The MSR3000 routers use the latest multicore CPUs, offer Gigabit switching, provide an enhanced
PCI bus, and ship with the latest version of HPE Comware software to help enable high performance
with concurrent services. The MSR3000 series provides a full-featured, resilient routing platform,
including IPv6 and Multi-Protocols Label Switching (MPLS), with up to 5 Mpps forwarding capacity
and 3.3 Gb/s of IPSec VPN encrypted throughput. These routers also support HPE Open Application
Platform (OAP) modules to deliver integrated industry-leading HPE AllianceOne partner applications
such as virtualization, unified communications and collaboration (UC&C), and application
optimization capabilities.
The MSR3000 series provides an agile, flexible network infrastructure that enables you to quickly
adapt to changing business requirements while delivering integrated concurrent services on a single,
easy-to-manage platform.

WAN connection
SIM card slot No
3G/4G USB modem compatibility No
Network
Networking standards IEEE 802.3ab
Ethernet interface type Gigabit Ethernet
Ethernet LAN data rates 1000 Mbit/s
Forwarding rate 2.6 Mpps
Ports & interfaces
Ethernet LAN (RJ-45) ports 3
Installed SFP modules quantity 1
Smart Interface Card (SIC) slots quantity 2
Security
Firewall Yes
Features
Processor frequency 1000 MHz
Flash memory 256 MB
Internal memory 2000 MB
Internal memory type DDR3
Heat dissipation 127 BTU/h
Mean time between failures (MTBF) 460425 h
Safety UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; AS/NZS 60950-1; GB 4943.1
Design
Product colour Grey
Rack mounting Yes
Power
Power source type AC
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Operational conditions
Operating temperature (T-T) 0 - 45 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 5 - 90%
Weight & dimensions
Width 440 mm
Depth 480 mm
Height 44.2 mm
Weight 7.15 kg
Logistics data
Harmonized System (HS) code 85176990
Other features
Dimensions (WxDxH) 440 x 480 x 44.2 mm
