HPE Moonshot-45Gc network switch module Gigabit Ethernet
£6,763.99
Couldn't load pickup availability
- Gigabit Ethernet
- Access Control List (ACL)
- Quality of Service (QoS) support
- 60 W

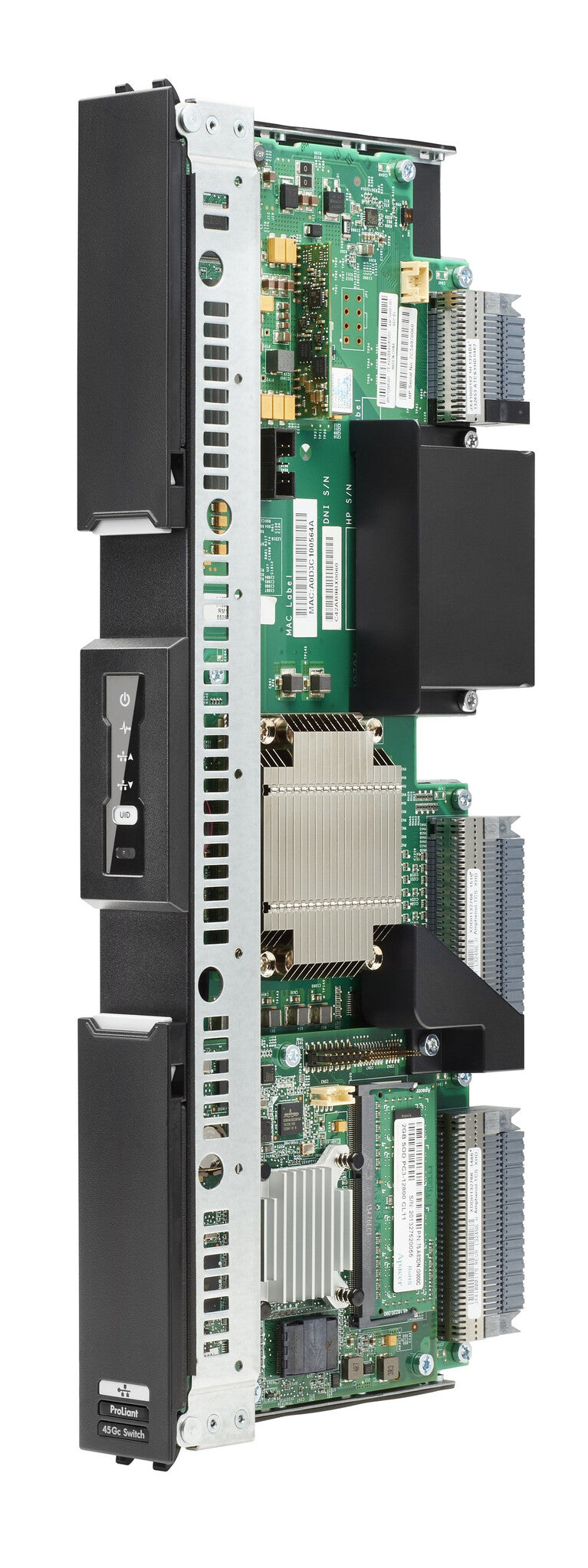

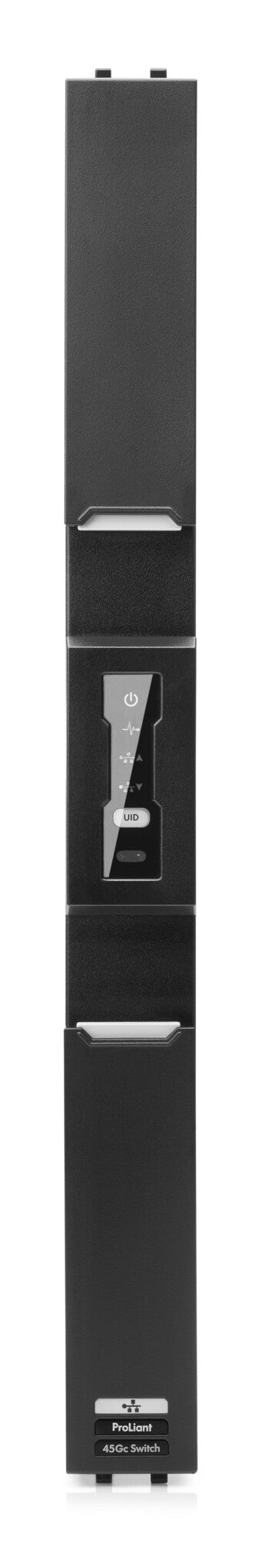

The HPE Moonshot-45Gc Switch Module is designed to provide high speed, low-latency connectivity while dramatically reducing cost and complexity of deploying solutions at scale. The 45Gc Switch Module, together with the HPE Moonshot-6SFP+ Uplink Module, provides 1GbE network connections to cartridges within the HPE Moonshot 1500 chassis and 10Gb connectivity external to the chassis. Up to two switch modules are supported in each chassis. IRFmay be used to eliminate the cost of TOR switches and provide failover in the event of a switch or uplink failure.
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae |
| Ethernet interface type | Gigabit Ethernet |
| Data transmission | |
|---|---|
| Number of VLANs | 4094 |
| Switching capacity | 480 Gbit/s |
| MAC address table | 128000 entries |
| Performance | |
|---|---|
| Access Control List (ACL) | Yes |
| Quality of Service (QoS) support | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 60 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 9144 m |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Weight | 1.71 kg |
| Height | 37 mm |
| Depth | 376 mm |
| Width | 141 mm |
