HPE Integrity PCIe 2-port 10GbE-SR Fabric Adapter Internal Ethernet / Fiber 10000 Mbit/s
£3,787.99
Couldn't load pickup availability
- Wired
- PCI Express 2.0 Ethernet / Fiber
- 10000 Mbit/s
- Internal Component for: Server

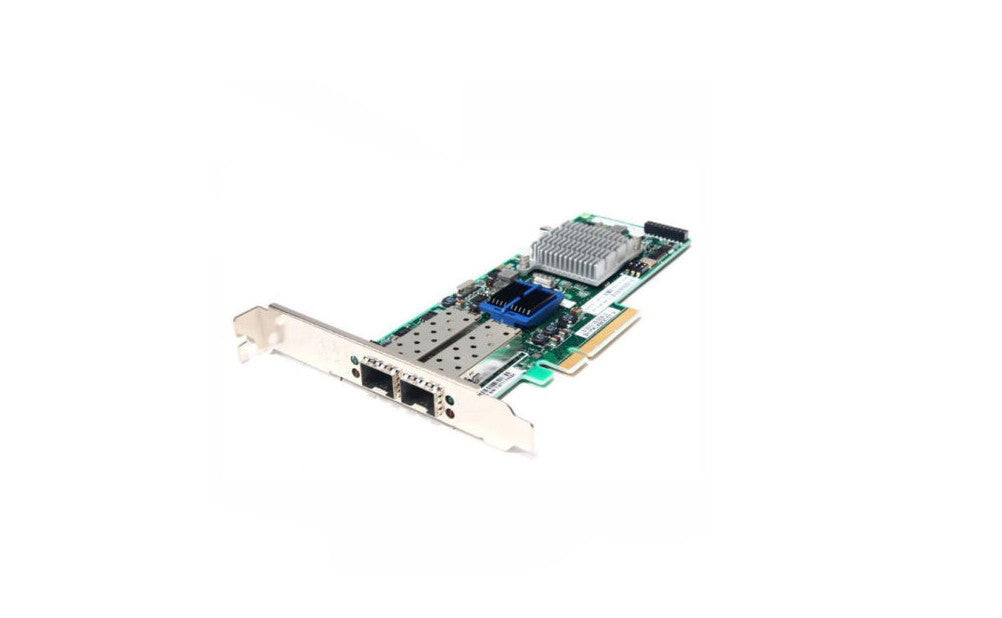

The HPE Integrity PCI-e 2-port 10GbE Adapter is an eight lane (x8) PCI Express (PCIe) 10 Gigabit network solution offering optimal throughput. This PCI Express Gen 2 adapter ships with two SFP+ (Small Form-factor Pluggable) cages suitable for connecting to Direct Attach Cable (DAC) or fiber modules supporting SR or LR fiber optic cabling.
The card ships with advanced server features such as support for TCP checksum and segmentation, VLAN tagging, QoS, and 9K Jumbo frames. Easy to install and configure, the card can be used in either standard or low profile slots.
| Ports & interfaces | |
|---|---|
| PCI Card form factor | Full-height (low-profile) |
| PCI version | 2.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Interface | Ethernet / Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Full duplex | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3x |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
|---|---|
| Component for | Server |
| Internal | Yes |
| Weight & dimensions | |
|---|---|
| Height | 20 mm |
| Depth | 181 mm |
| Width | 120 mm |
