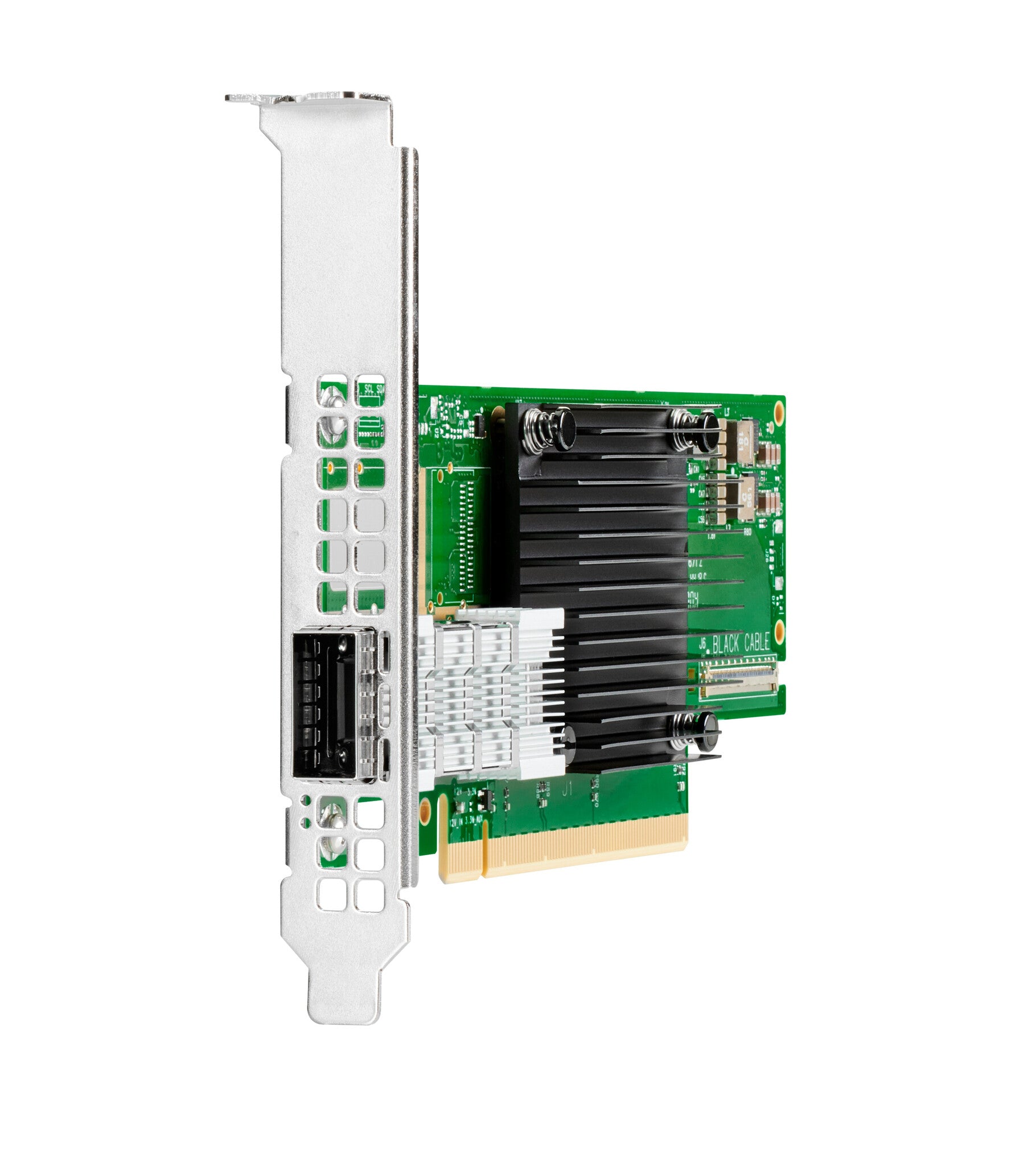

HPE InfiniBand HDR100/Ethernet 100Gb 1-port QSFP56 PCIe4 x16 MCX653105A-ECAT Adapter

HPE InfiniBand HDR100/Ethernet 100Gb 1-port QSFP56 PCIe4 x16 MCX653105A-ECAT Adapter

Hewlett Packard Enterprise
£981.99
Stock Available: 0
  • Wired
  • PCI Express 4.0 Ethernet / Fiber
  • 100 Mbit/s
  • Internal Component for: Server

Are you looking for extremely high-bandwidth and very low latency communications for your HPE Apollo System and HPE ProLiant DL rack mount server families? The HPE HDR InfiniBand and Ethernet adapters are designed for customers who deploy high performance computing (HPC) systems with their HPE ProLiant XL and HPE ProLiant DL Gen10 and Gen10 Plus servers in the data center. The HPE InfiniBand HDR/HDR100 and Ethernet adapters are available as stand up cards or in the OCP 3.0 form factor, equipped with 1 port or 2 ports. Combined with HDR InfiniBand switches, they deliver low latency and up to 200Gbps bandwidth, ideal for performance-driven server and storage clustering applications in HPC and enterprise data centers.

What is new supporting point:
The HDR InfiniBand and Ethernet adapters are now available in the OCP 3.0 form factor with support for HPE iLO shared network port in Ethernet mode.
The HDR InfiniBand and Ethernet adapters for HPE ProLiant Gen10 Plus servers are based on standard Mellanox ConnectX-6 technology.

Ports & interfaces
PCI version 4.0
Fiber ports quantity 1
Fiber optic connector QSFP56
Interface Ethernet / Fiber
Host interface PCI Express
Connectivity technology Wired
Network
Ethernet LAN data rates 10000,25000,40000,50000,100000 Mbit/s
Networking standards IEEE 1588v2, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3ba, IEEE 802.3bz
Maximum data transfer rate 100 Mbit/s
Design
Component for Server
Internal Yes
Weight & dimensions
Weight 230 g
Height 254 mm
Depth 609.6 mm
Width 355.6 mm
Logistics data
Harmonized System (HS) code 85176990
