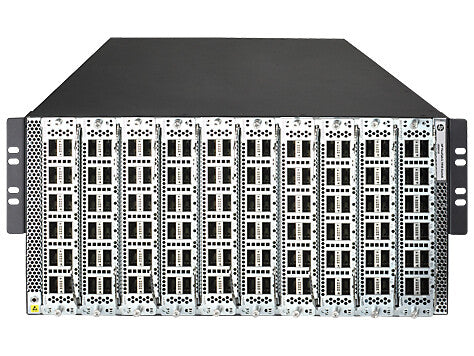

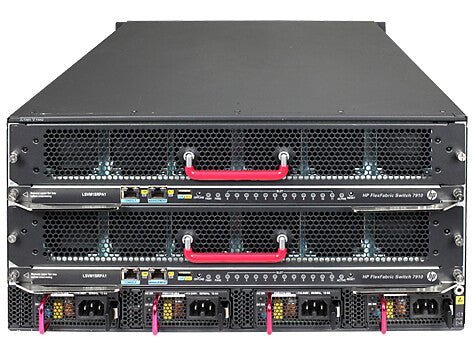

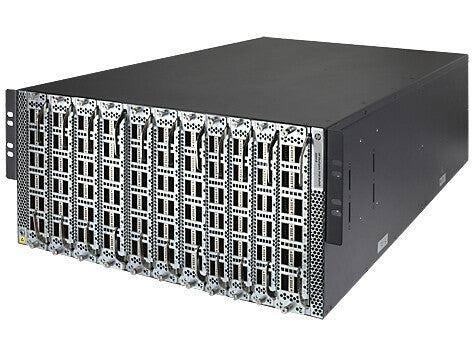

HPE FlexFabric 7910 Switch Chassis network equipment chassis 5U
£3,663.99
Couldn't load pickup availability
HP FlexFabric 7900 Modular Core Switch is a compact modular data center core switch supporting virtualized data centers and evolutionary needs of private and public clouds deployments. Delivering unprecedented levels of performance, buffering, scale, and availability with high density 10GbE, 40GbE and 100GbE interfaces at a lower cost, using only a fraction of the footprint used by traditional chassis.
The switch supports full Layer 2 and 3 features, including advanced features such as TRILL and HP Intelligent Resilient Fabric (IRF), which enable scale-out, two-tier leaf-spine architecture
| Technical details | |
|---|---|
| Switching capacity | 9600 Gbit/s |
| Memory and processor | Dual Core MIPS64 @ 1.0 GHz; 1 GB flash; 8 GB DDR2 SDRAM |
| Management platform | IMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; terminal interface (serial RS-232C); modem interface; IEEE 802.3 Ethernet MIB; Ethernet Interface MIB |
| Rack capacity | 5U |
| Certificates | |
|---|---|
| Safety | UL 609 50 -1; CAN/CSA 22.2 No. 60950 -1; IEC 60950 -1; EN 60950 -1; FDA 21 CFR Subchapter J; AS/NZS 60950 -1; RoHS Compliance EN 50581 |
| Ports & interfaces | |
|---|---|
| I/O ports | 10 I/O module slotsSupports a maximum of 120 40GbE ports or 480 10GbE ports or 240 1/10GbE ports or 20 100GbE ports, or a combination |
| Power | |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 13 A |
| Output power | 1800 W |
| Weight & dimensions | |
|---|---|
| Weight | 28.8 kg |
| Width | 439.9 mm |
| Depth | 760 mm |
| Height | 220 mm |
