£575.99

Stock Available: 0
  • Wired
  • PCI Express 3.0 Fiber
  • 10000 Mbit/s
  • Internal Component for: Server Chipset: QLogic 57840S

What if you could increase performance while at the same time reduce your costs and complexity?

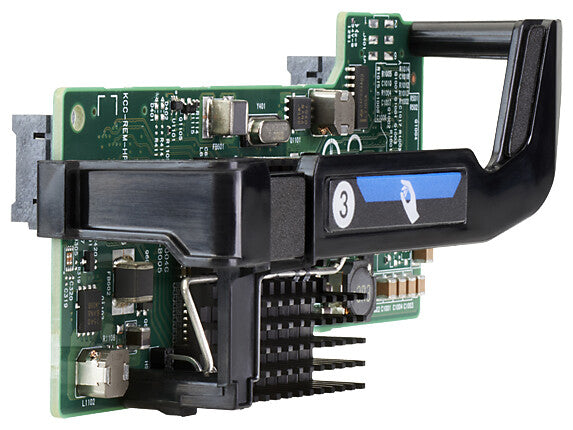

The HP FlexFabric 10Gb 2-port 536FLB Adapter for HP ProLiant Gen9 Blade servers gives you high performance 10 Gb converged connectivity with new storage I/O functionality along with SR-IOV capabilities. With this FlexibleLOM Adapter you get high performance Ethernet, FCoE and iSCSI, increasing the overall server performance and scalability. While increasing your performance and external bandwidth capability, your budget doesn’t have to increase drastically. You can choose the latest 10 Gb technology to match your network architecture as you are consolidating your data center environment.

The HP FlexFabric 10Gb 2-port 536FLB adapter is ideal for densely populated BladeSystem data centers running high-bandwidth applications and virtual machine environments, this single Converged Network Adapter (CNA) can connect servers to storage and networks requiring fewer parts and less administration.

10 Gb Bandwidth Improves Performance and Accelerates Virtualized Workloads
Ability to virtualize each port into four physical functions with full Quality-of-Service control removes server I/O bottlenecks.

Flex-10/FlexFabric Technology Simplifies I/O Hardware and Reduces Costs
Consolidate server I/O connections reducing NIC/HBA adapters, cabling and switch port requirements.

Centralized Life-cycle Management Streamlines Operations
Provision multiple adapters in seconds using Virtual Connect profiles.

Ports & interfaces
PCI version 3.0
Fiber ports quantity 2
Interface Fiber
Host interface PCI Express
Connectivity technology Wired
Network
Networking standards IEEE 802.1ab, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3x
Maximum data transfer rate 10000 Mbit/s
Design
Chipset QLogic 57840S
Component for Server
Internal Yes
Weight & dimensions
Weight 70 g
Height 38 mm
Depth 57 mm
Width 112 mm
Logistics data
Harmonized System (HS) code 85176990
