£78.99

Stock Available: 0
  • Wired
  • PCI Express 2.0 Ethernet / WLAN
  • 1 Mbit/s 10/100/1000BaseT(X)
  • Internal Component for: Server Chipset: BCM5719

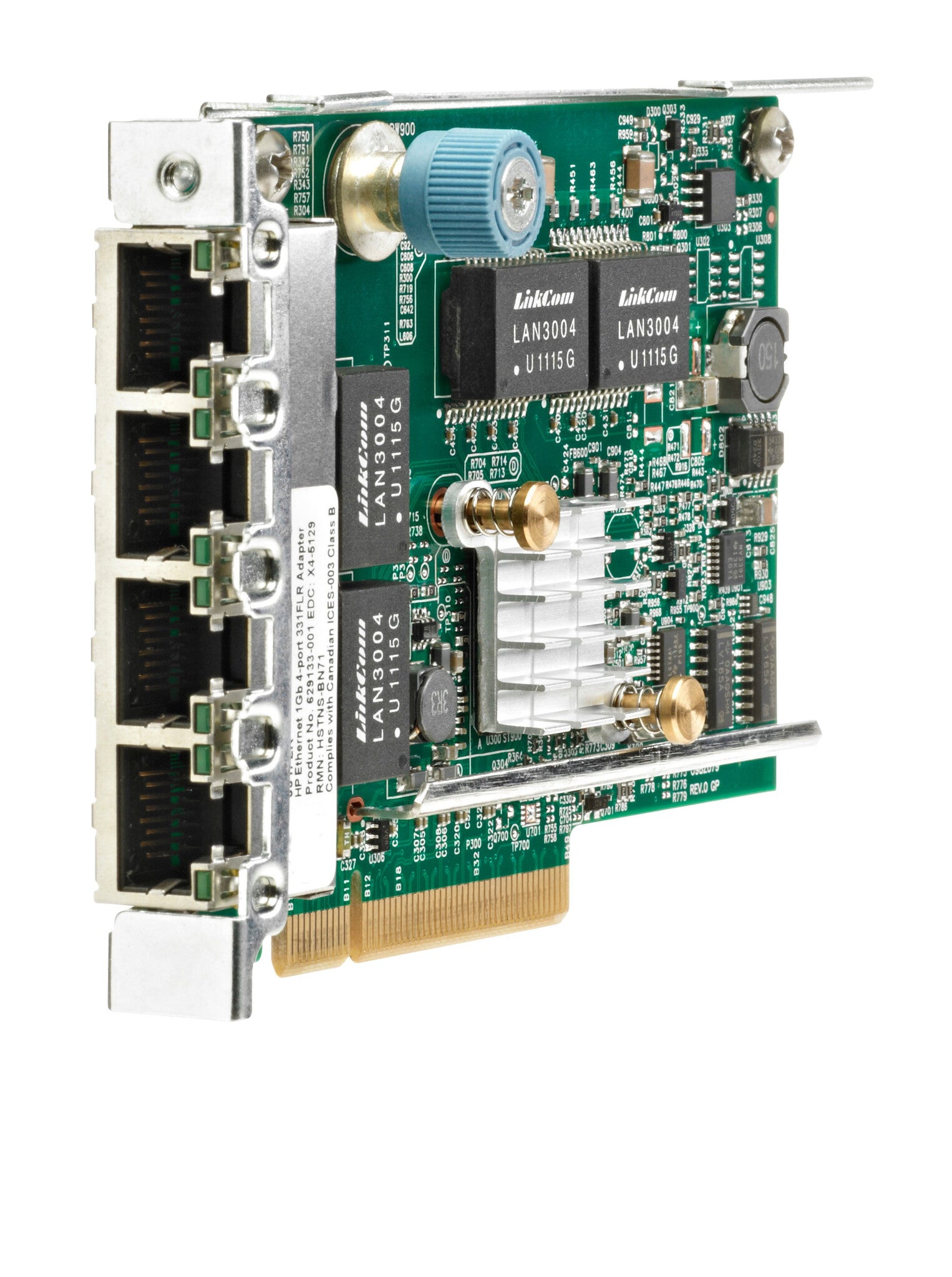

Do you need low power, high port density 1GbE network adapters for virtualization and server consolidation? The HPE Ethernet 1Gb 4-port FLR-T BCM5719 Adapter for select HPE ProLiant servers features the next generation of Ethernet integration, offering a single-chip solution in a FlexibleLOM form factor, which offers the option for future upgrades to 10GbE networking speeds. It delivers full line-rate performance across all ports with low power consumption. The adapter is ideal for virtualization, security, server consolidation, network segmentation, and other applications requiring maximum throughput and port density. The total aggregate throughput of 4 Gb meets the needs of customers desiring high bandwidth. The adapter supports advanced features such as Large Send and Receive offload capability, TCP checksum and segmentation, VLAN tagging, MSI-X, jumbo frames, IEEE 1588, HPE Sea of Sensors 3D and virtualization features such as VMware NetQueue and Microsoft VMQ.

Ports & interfaces
PCI version 2.0
Ethernet LAN (RJ-45) ports 4
Interface Ethernet / WLAN
Host interface PCI Express
Connectivity technology Wired
Network
Full duplex Yes
Cabling technology 10/100/1000BaseT(X)
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN Yes
Networking standards IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Maximum data transfer rate 1 Mbit/s
Design
Chipset BCM5719
Product colour Aluminium, Green
Component for Server
Internal Yes
System requirements
Server operating systems supported Windows Server 2008
Windows operating systems supported Yes
Logistics data
Harmonized System (HS) code 85176990
Other features
Power supply 5.5 W
Data transfer rate 1 GT/s
