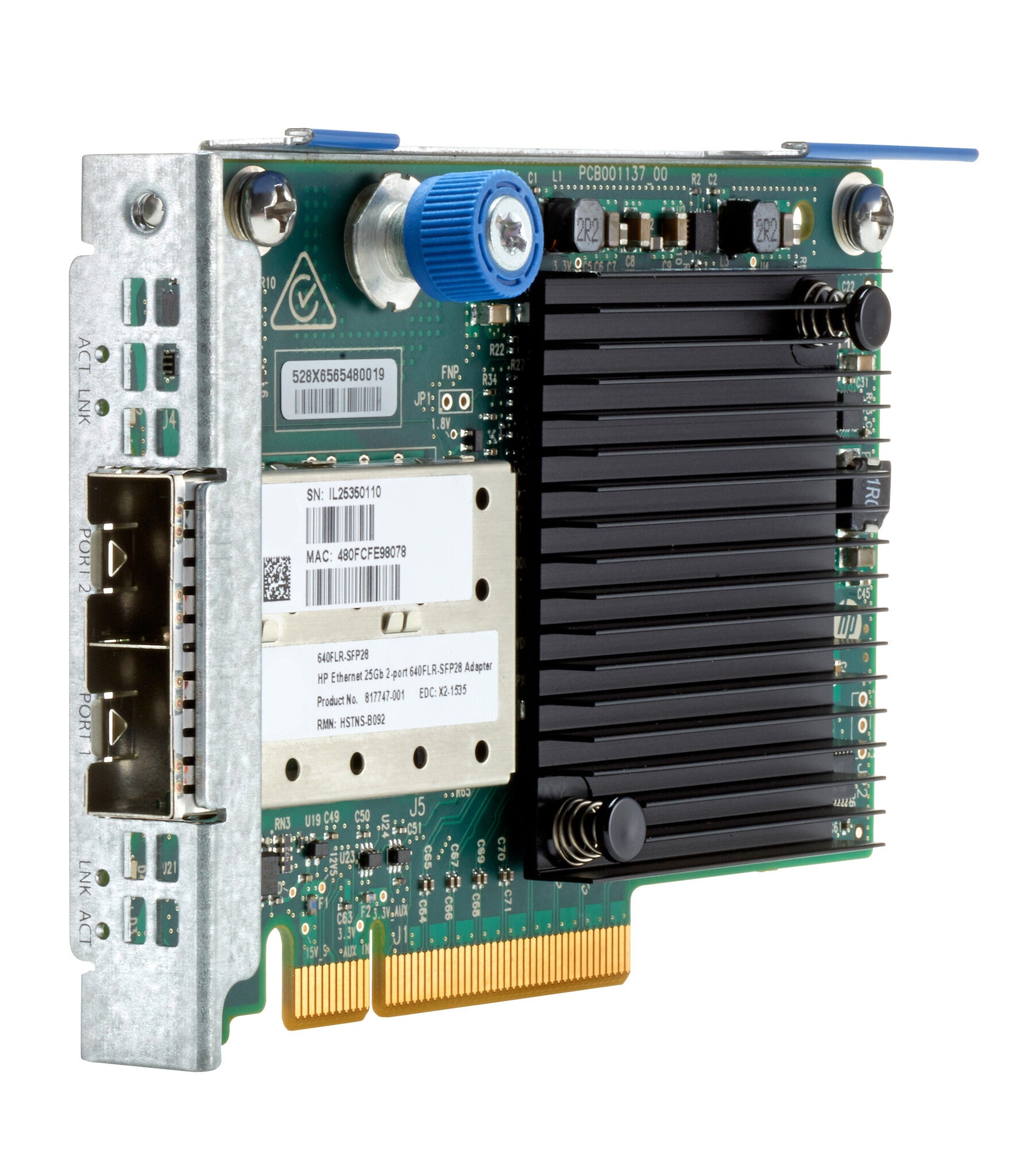

HPE Ethernet 10/25Gb 2-port FLR-SFP28 MCX4121A-ACFT Adapter
Couldn't load pickup availability
- Wired
- PCI Express 3.0 Ethernet / Fiber
- 25 Mbit/s
- Internal Component for: Server
Stuck in network traffic at 10Gbps? Time to take the Express Lane with HPE 25GbE Adapters. With the rise in volume of mobile data and video and the frequency in which it’s accessed, legacy technologies are struggling to handle the increased throughput and lack the capabilities to cost-effectively scale. Current approaches to managing the increasing data center traffic require higher bandwidth and are cost prohibitive, keeping organizations from easily growing as their needs grow. The HPE Ethernet 10/25Gb 2-port FLR-SFP28 CX4 Adapter is a FlexibleLOM form factor for select HPE ProLiant Server DL family of rack and HPE Apollo Servers that delivers high-performance solutions to Telco, services providers, financial institutions and enterprises to meet higher bandwidth demand.
| Ports & interfaces | |
|---|---|
| PCI version | 3.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP28 |
| Interface | Ethernet / Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 10000,25000 Mbit/s |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3x |
| Maximum data transfer rate | 25 Mbit/s |
| Design | |
|---|---|
| Compatible products | HPE ProLiant DL160 Gen9 ServerHPE ProLiant DL360 Gen9 ServerHPE ProLiant DL360 Gen10 ServerHPE ProLiant DL380 Gen9 ServerHPE ProLiant DL380 Gen10 ServerHPE ProLiant DL385 Gen10 ServerHPE ProLiant DL560 Gen9 ServerHPE ProLiant DL580 Gen9 ServerHPE ProLiant DL560 Gen10 ServerHPE ProLiant DL580 Gen10 ServerHPE Apollo 2000 - XL1x0r Gen9 ServerHPE Apollo 4200 Gen9 ServerHPE Apollo 4500 – XL450 Gen9 ServerHPE Apollo 6000 – XL230a Gen9 ServerHPE Apollo 6000 – XL250a Gen9 ServerHPE Apollo 6500 – XL270d Gen10 Server |
| Component for | Server |
| Internal | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 10.5 W |
| System requirements | |
|---|---|
| Compatible operating systems | None |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 5 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 90 g |
| Height | 76.7 mm |
| Depth | 13.7 mm |
| Width | 121.1 mm |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
| Other features | |
|---|---|
| Processor model | Yes |
| Built-in processor | Yes |
