£2,632.99

Stock Available: 0
  • Wired
  • PCI Express 3.0 Ethernet / Fiber
  • 100000 Mbit/s
  • Internal Component for: Server

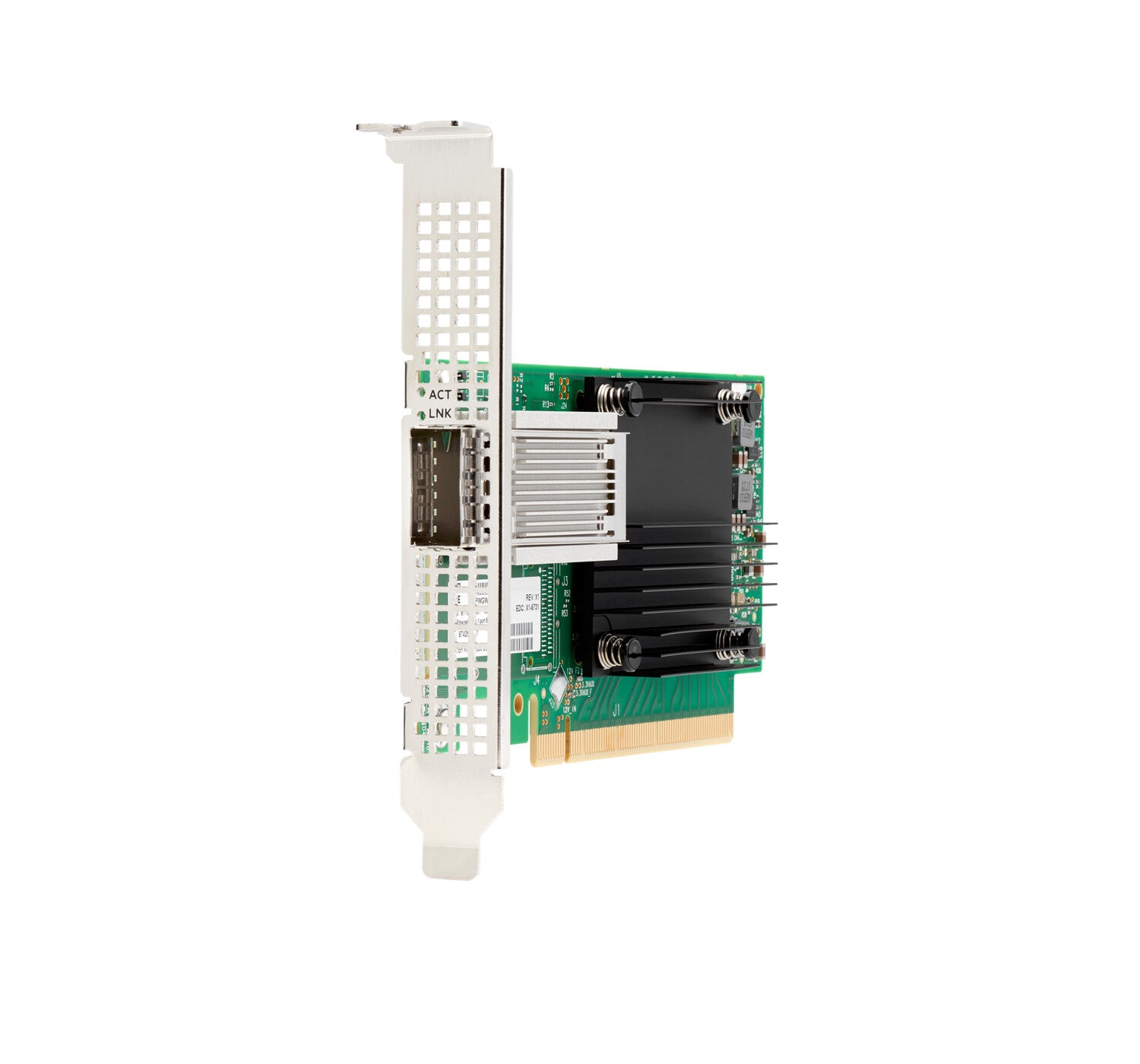

Do you have demanding workloads that require low latency? The HPE Ethernet 100Gb 1-port QSFP28 MCX515A-CCAT adapter supports 100 Gb bandwidth that allows more network traffic and thus is ideal for telcos, cloud and service providers. This adapter has security features to keep out rogue updates that could slow you down. Plan for the future and get in the express lane with the 100 Gb adapter.

Features

Speed Up Network-intensive Applications
- The HPE Ethernet 100Gb 1-port QSFP28 MCX515A-CCAT Adapter drives I/O per server with hardware-based I/O virtualization expediting data to its destination.
- Offloads packet processing to reduce CPU utilization, and lower power with tunnel offloads (VXLAN and NVGRE) giving you efficiency and reduced power consumption.

Reduce Headaches with Less Complexity for a Smoother Data Ride
- The HPE Ethernet 100Gb 1-port QSFP28 MCX515A-CCAT Adapter helps reduce CPU utilization and improve host VM density and server efficiency using remote direct memory access (RDMA) over Converged Ethernet (RoCEv2) for live migration and Microsoft® SMB Direct environments.
- Improves small packet performance latency, with Data Plane Development Kit (DPDK), to help telcos and e-commerce companies conduct high-performance computing (HPC).

Protect from Rogue Updates
- The HPE Ethernet 100Gb 1-port QSFP28 MCX515A-CCAT Adapter strengthens security through chain of trust and root of trust at the firmware level so your firmware is fortified from outside intrusions.
- Authenticates updates which provide peace of mind that suspicious activity, including rogue firmware, will be detected before business impact occurs.

Ports & interfaces
PCI version 3.0
Fiber ports quantity 1
Fiber optic connector QSFP28
Interface Ethernet / Fiber
Host interface PCI Express
Connectivity technology Wired
Network
Jumbo frames support Yes
Networking standards IEEE 1588, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1as, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3by
Maximum data transfer rate 100000 Mbit/s
Design
Compatible products ProLiant DL360 Gen10 ServerProLiant DL380 Gen10 ServerProLiant DL385 Gen10 ServerProLiant DL560 Gen10 ServerProLiant DL580 Gen10 ServerProLiant DL325 Gen10 ServerApollo 2000 - XL170r Gen10 ServerApollo 2000 - XL190r Gen10 ServerApollo 4500 – XL450 Gen10 ServerApollo 6500 – XL270d Gen10 ServerProLiant ML350 Gen10 Server
Component for Server
Internal Yes
Power
Power consumption (typical) 15.1 W
Operational conditions
Operating temperature (T-T) 5 - 60 °C
Weight & dimensions
Weight 109 g
Height 21.6 mm
Depth 121 mm
Width 155.6 mm
Technical details
Compliance certificates RoHS
