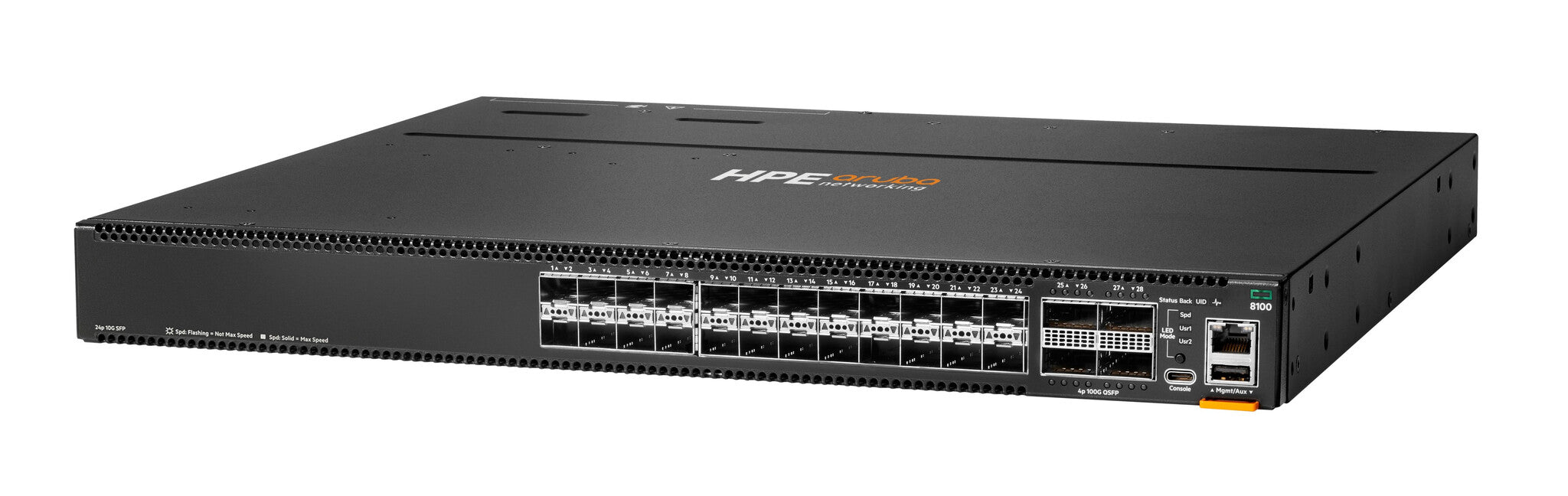

HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU Switch Bdl

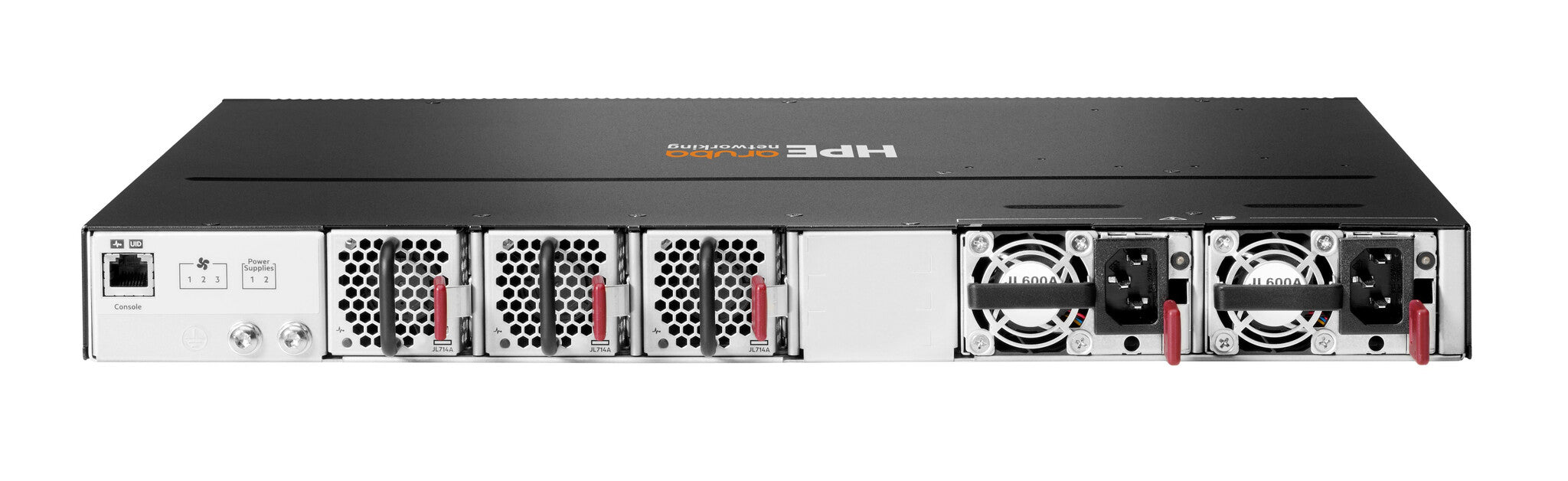

HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU Switch Bdl - image 2
1 / 2
HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU Switch Bdl
HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU Switch Bdl - image 2
HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU Switch Bdl
HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU Switch Bdl - image 2

HPE Aruba Networking CX 8100 24x10G SFP+ 4x40/100G QSFP28 FB Airflow 3Fan 2AC PSU Switch Bdl

Hewlett Packard Enterprise · MPN: R9W86A#ACE
£19,132.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £6,377.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Processor modelARM Cortex-A72
  • Internal memory16000 MB
  • Weight8.16 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview
  • Managed L3 SNMPv2c, SNMPv3
  • Quality of Service (QoS) support
  • Console port: RJ-45/USB Type-C
  • 10G support
  • MAC address table: 147456 entries Switching capacity: 1280 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting
  • AC Power supply included

The HPE Aruba Networking CX 8100 Switch Series serves the needs of modern campus core and aggregation as well as dynamic top-of-rack (ToR) data center environments, offering a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT. The CX 8100 switches are based on HPE Aruba Networking CX Switch Operating System (AOS-CX) that automates and simplifies critical network tasks, offers programmability with REST APIs and Python scripts, delivers enhanced fault tolerance and zero-service disruption during planned or unplanned control-plane events. Real-time, network-wide visibility and analytics are available in every switch. The series includes industry-leading line rate ports with 1/10GbE (SFP/SFP+) and 40/100GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4 x 10 Gbps and 4 x 25 Gbps break out from 40/100G. These switches are great for customers needing 1/10GbE with mix of fiber and copper ports.

What is new supporting point:
High performance 1.76 Tbps of bi-directional switching and 1,309 Mpps of forwarding designed for aggregation in the campus or top-of-rack (ToR) in data center environments
Four different base models, each sold in bundles that support two airflow modes (front-to-back, and back-to-front) with advanced Layer 2/3 feature set that includes BGP, OSPF, VRF, VXLAN, EVPN, IPv6
High availability with industry-leading HPE Aruba Networking Virtual Switching Extension (VSX) redundancy and redundant power supplies and fans
HPE Aruba Networking CX Switch Operating System (AOS-CX) automation and programmability using built-in REST APIs and Python scripts
Intelligent monitoring and visibility delivered by the HPE Aruba Networking CX Networks Analytics Engine (NAE)

Specifications

Management features

Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes

Ports & interfaces

Basic switching RJ-45 Ethernet ports typeNo
SFP+ module slots quantity24
USB Type-A ports quantity1
Console portRJ-45/USB Type-C
QSFP28 ports quantity4
Show all 64 specificationsShow fewer specifications

Network

Networking standardsIEEE 802.1AX, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1v, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3ba
10G supportYes
Port mirroringYes
Spanning tree protocolYes
Link aggregationYes
Ethernet LAN data rates10000,40000,100000 Mbit/s
Flow control supportYes
VLAN supportYes

Data transmission

MAC address table147456 entries
Switching capacity1280 Gbit/s
Jumbo frames supportYes
Packet buffer memory32 MB

Security

DHCP featuresDHCP relay, DHCP server
Access Control List (ACL)Yes
IGMP snoopingYes
Authentication typeRADIUS, TACACS+
SSH/SSL supportYes

Multicast features

Multicast supportYes

Protocols

Management protocolsSNMPv2c, SNMPv3
Routing protocolsBGP, BGP4, OSPF, RIPng

Design

Rack mountingYes
StackableNo
Form factor1U
Airflow directionFront-to-back airflow
Number of fans3 fan(s)

Performance

Built-in processorYes
Processor modelARM Cortex-A72
Processor frequency1800 MHz
Memory typeRAM / Flash
Internal memory16000 MB
Flash memory32768 MB

Power

Power sourceAC
Power supply includedYes
Redundant power supply (RPS) supportYes
Number of power supply units2
AC input voltage200 - 240 V
AC input frequency47/63 Hz
Power consumption (max)375 W
Power consumption noteMaximum: 375W Idle: 120W
Power supply noteBundles include the 2 power supplies (2 x JL600A in R9W86A, R9W88A, R9W90A and R9W92A)

Power over Ethernet (PoE)

Power over Ethernet (PoE)No

Other features

Fan3 field-replaceable and hot-swappable fans
Performance managementRJ-45 serial and USB-C console RJ-45 Ethernet port USB Type-A
Memory and processorCPU: Quad Core Arm Cortex™ A72 @ 1.8 GHz Memory and flash: 16 GB RAM, 32 GB Flash/storage Packet buffer: 32 MB
I/O ports24 ports of 1/10GbE (SFP/SFP+) 4 ports of 40/100GbE (QSFP+/QSFP28)

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)15 - 95%
Storage relative humidity (H-H)15 - 90%
Operating altitude0 - 3048 m
Non-operating altitude0 - 4600 m
Heat dissipation1275 BTU/h

Weight & dimensions

Width442.5 mm
Depth406.4 mm
Height44 mm
Weight8.16 kg
