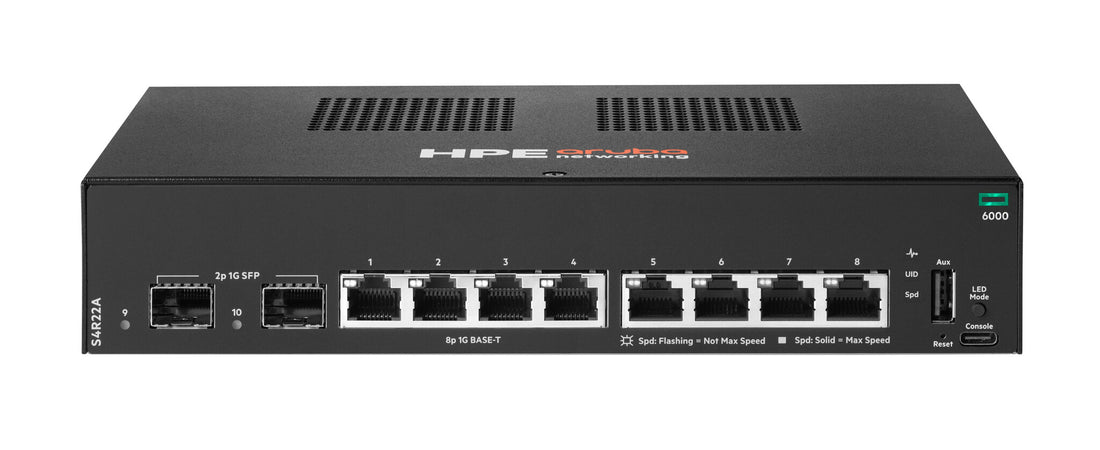

HPE Aruba Networking CX 6000 8p 10M/100M/1G 2p SFP 1G Switch
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £207.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed L2 Web-based management
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- Basic switching RJ-45 Ethernet ports quantity: 8 Console port: USB
- Switching capacity: 20 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC Power supply included
The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and HPE Aruba Networking CX Switch Operating System for a consistent, and efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small workspaces. The CX 6000 series is easy to deploy and use with flexible management choices, allowing the ideal fit for your business and network environment.
What is new supporting point:
The CX 6000 series has convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices
It has compact and fanless 8-port and 12-port models for space-constrained deployments
The CX 6000 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI
Ready for software defined networking with REST APIs.
It simplifies IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Console port | USB |
Show all 37 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.3at |
|---|---|
| 10G support | No |
Data transmission
| Switching capacity | 20 Gbit/s |
|---|---|
| Throughput | 14.8 Mpps |
| Latency (1 Gbps) | 3.2 µs |
| Static route | Yes |
Security
| Access Control List (ACL) | Yes |
|---|---|
| Authentication | MAC-based authentication |
Design
| Rack mounting | Yes |
|---|---|
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
Performance
| Built-in processor | Yes |
|---|---|
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
Power
| Power source | AC |
|---|---|
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 13.8 W |
| Power consumption note | Max. Power (w/o PoE): 13.8W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Other features
| Latency | 1 Gbps: 3.2 μSec |
|---|---|
| Performance management | Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software |
| Memory and processor | CPU: Dual-core Arm Cortex-A9 @ 1016 MHz Memory: 4 GB DDR3 Flash: 16 GB eMMC |
| I/O ports | 8 x 10/100/1000BASE-T ports 2 x 1 G SFP ports 1 x USB-C console port 1 x USB Type-A host port |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
General
| Product family | Aruba Networking |
|---|
