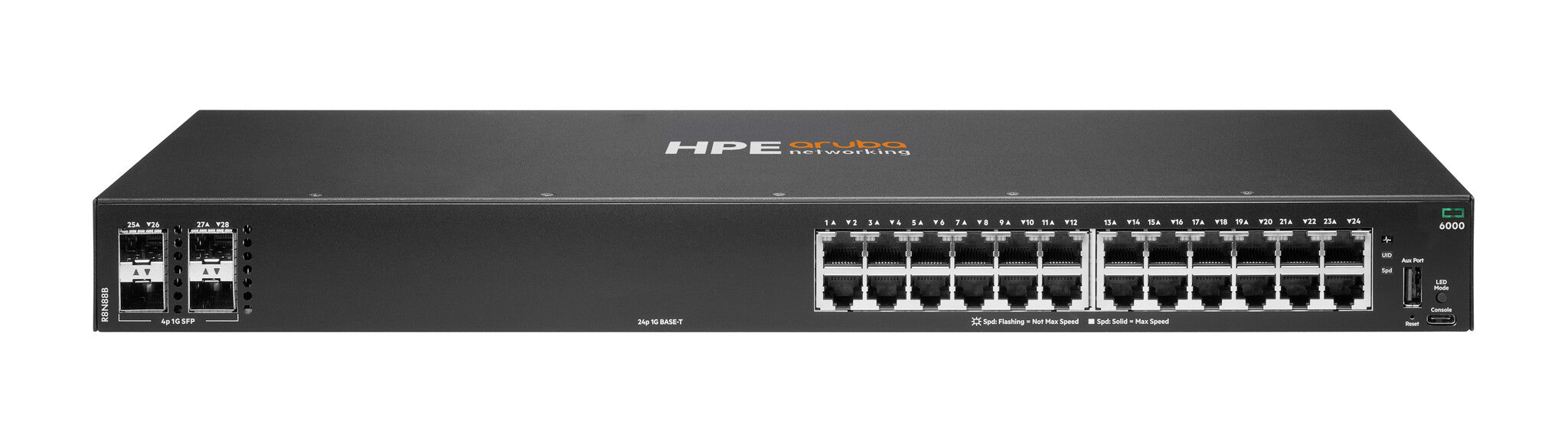

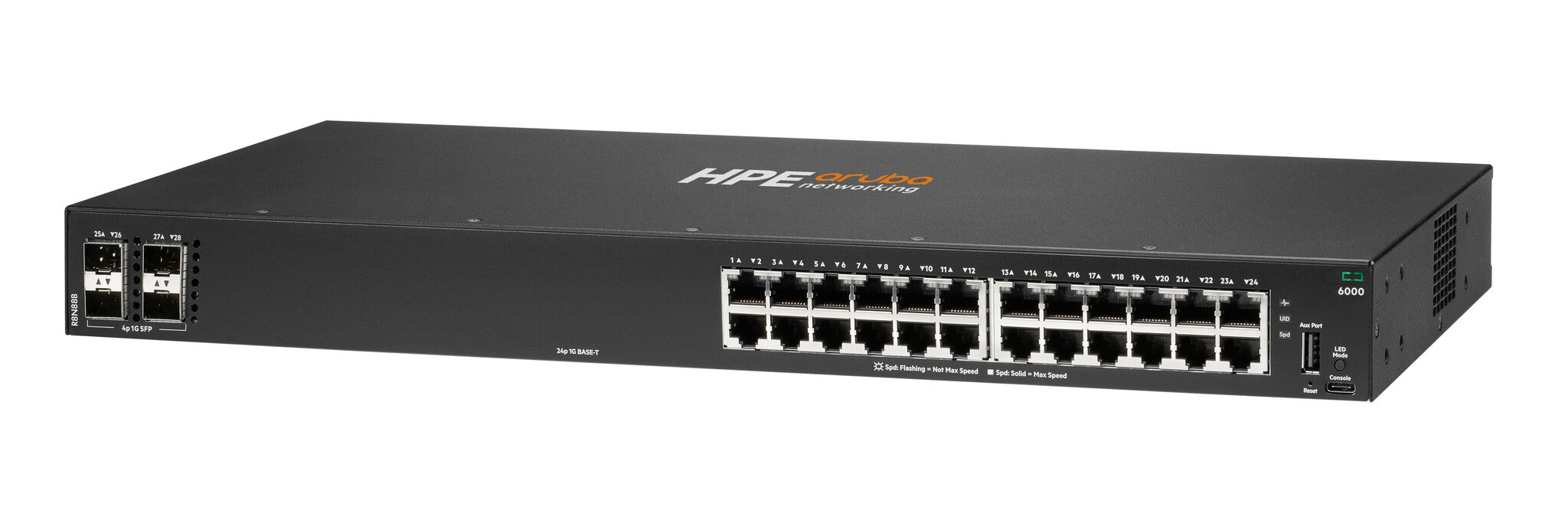

HPE Aruba Networking CX 6000 24p 10M/100M/1G 4p SFP 1G Switch
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £134.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Managed L3 Web-based management
- Quality of Service (QoS) support
- Basic switching RJ-45 Ethernet ports quantity: 24 Console port: USB
- MAC address table: 8192 entries Switching capacity: 56 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting
- AC Power supply included
The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and HPE Aruba Networking CX Switch Operating System for a consistent, and efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small workspaces. The CX 6000 series is easy to deploy and use with flexible management choices, allowing the ideal fit for your business and network environment.
What is new supporting point:
It simplifies IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity
The CX 6000 series has convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices
It has compact and fanless 8-port and 12-port models for space-constrained deployments
The CX 6000 provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI
Ready for software defined networking with REST APIs.
Specifications
Management features
| Switch type | Managed |
|---|---|
| Switch layer | L3 |
| Quality of Service (QoS) support | Yes |
| Cloud-managed | Yes |
| Web-based management | Yes |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 4 |
| USB Type-A ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Console port | USB |
Show all 58 specificationsShow fewer specifications
Network
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x |
|---|---|
| 10G support | No |
| Port mirroring | Yes |
| Spanning tree protocol | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| VLAN support | Yes |
Data transmission
| MAC address table | 8192 entries |
|---|---|
| Switching capacity | 56 Gbit/s |
| Throughput | 41.6 Mpps |
| Latency (1 Gbps) | 1.5 µs |
| Static route | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 12.38 MB |
Security
| DHCP features | DHCP client |
|---|---|
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | MAC-based authentication |
Multicast features
| Multicast support | Yes |
|---|
Protocols
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
|---|---|
| IPv4 FIB entries | 256 |
| IPv6 FIB entries | 128 |
Design
| Rack mounting | Yes |
|---|---|
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
Performance
| Built-in processor | Yes |
|---|---|
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 16384 MB |
Power
| Power source | AC |
|---|---|
| Power supply included | Yes |
| AC input voltage | 200 - 240 V |
| Power consumption (max) | 33 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Storage relative humidity (H-H) | 15 - 90% |
Weight & dimensions
| Width | 44 mm |
|---|---|
| Depth | 442 mm |
| Height | 201 mm |
| Weight | 2.6 kg |
General
| Product family | Aruba Networking |
|---|
