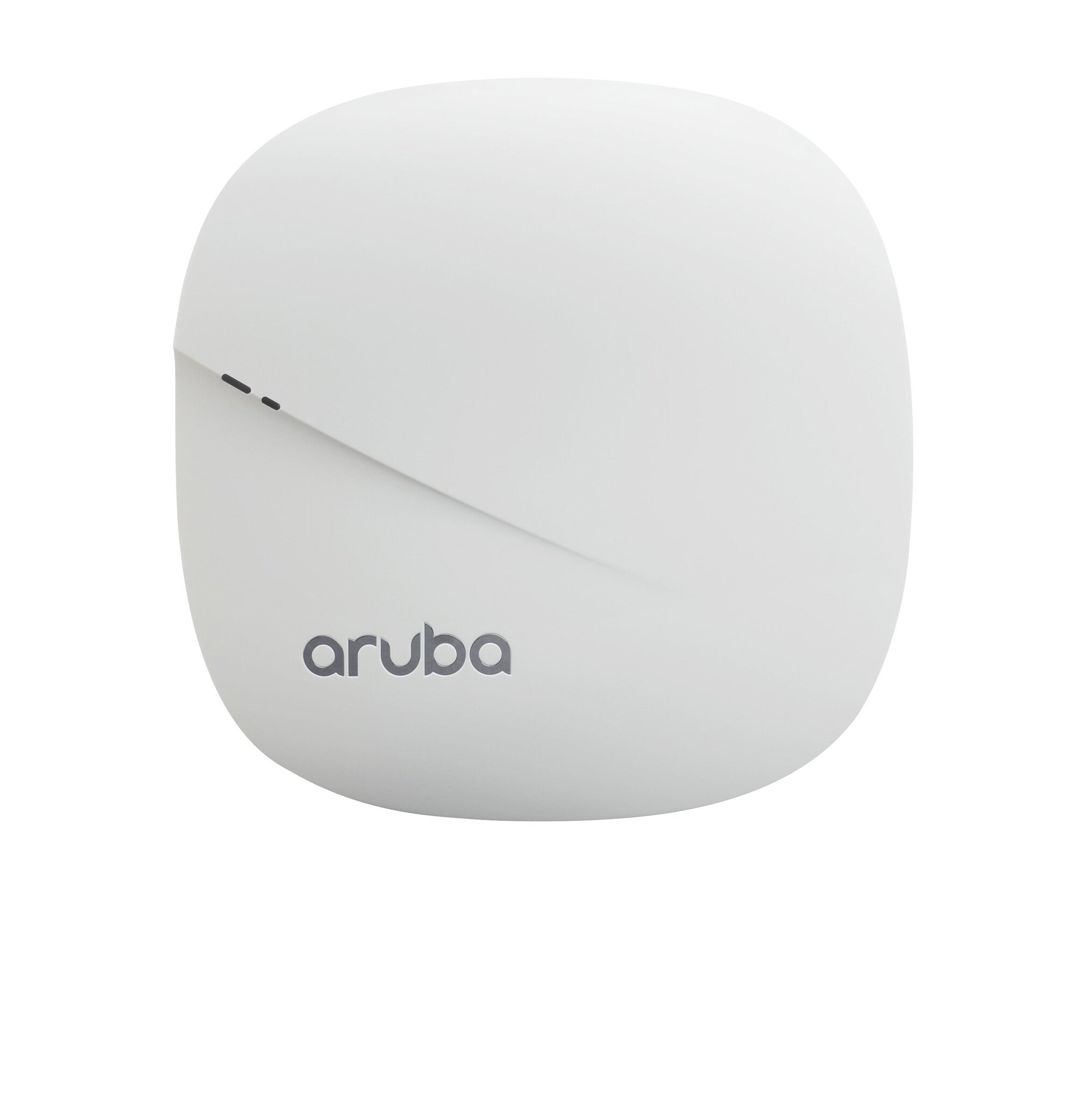

HPE Aruba Networking Aruba AP-207 FIPS/TAA 1267 Mbit/s White Power over Ethernet (PoE)
Couldn't load pickup availability
- 2.4 GHz 400 Mbit/s
- 5 GHz 867 Mbit/s
- Maximum data transfer rate: 1267 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
- Power over Ethernet (PoE)
- Antennas quantity: 2 Internal Integrated antenna
The affordable, mid-range Aruba 207 Series access point delivers high performance 802.11ac for medium density enterprise environments, such as schools, retail branches, warehouses, hotels and enterprise offices, where the environment is cost sensitive.
The compact Aruba 207 Series AP delivers a maximum concurrent data rate of 867Mbps in the 5GHz band and 400 Mbps in the 2.4GHz band (for an aggregate peak data rate of 1.3Gbps).
With the integrated Bluetooth Aruba Beacon, the 207 Series AP provides advanced location and indoor way finding, and proximity-based push notification services while simplifying the remote management of battery-powered Aruba Beacons. Also for improved network simplicity and security, Dynamic Segmentation automatically enforces real-time device-level access policies on Aruba wired and wireless networks.
| Features | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK |
| Spread spectrum method | DSSS, OFDM |
| MIMO type | Single User MIMO |
| MIMO | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
| Maximum data transfer rate | 1267 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Security algorithms | Not supported |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power consumption (max) | 12.3 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | White |
| Placement | Ceiling, Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 6.8 dBi |
| Antennas quantity | 2 |
| Antenna features | Integrated antenna |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| General | |
|---|---|
| Product family | Aruba Networking |
| Weight & dimensions | |
|---|---|
| Weight | 380 g |
| Height | 40 mm |
| Depth | 150 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package weight | 590 g |
| Package height | 70 mm |
| Package depth | 180 mm |
| Package width | 190 mm |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 93% |
