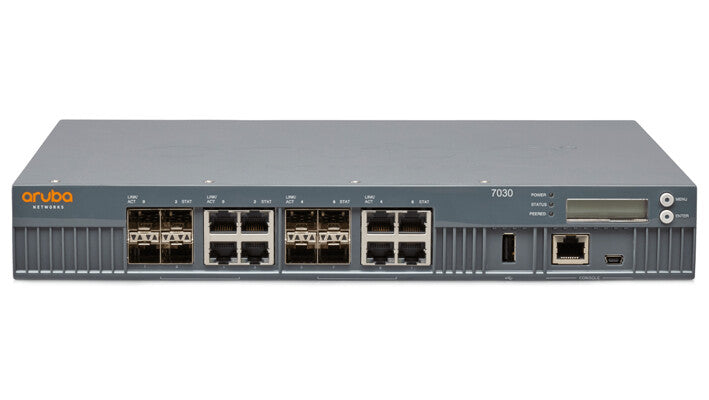

HPE Aruba Networking Aruba 7030 (US) network management device 8000 Mbit/s Ethernet LAN
Couldn't load pickup availability
- Firewall throughput: 8000 Mbit/s
- Number of LAN Access Points (max): 64
- Number of Remote Access Points (max): 64
- 4096 user(s)
- Ethernet LAN IEEE 802.11ad, IEEE 802.11ax VLAN support
- Wired RJ-45/micro-USB
The 7000 Series Mobility Controller running ArubaOS delivers industry-leading network services that maximize Wi-Fi performance, ensure seamless roaming, and extends secure VPN access for Remote APs, Instant APs and VIA VPN clients.
The 7000 Series also serves as the key policy enforcement agent within the Dynamic Segmentation solution. Enforcement is accomplished through an industry-first user firewall (PEF), built-in Layer 7 application visibility and control, and web content filtering (WebCC).
As part of a controller cluster managed by Aruba's Mobility Master, the 7000 Series can take advantage of the full ArubaOS feature set, including centralized configuration hierarchy, AI-powered AirMatch, live firmware upgrades and secure multi-tenant SSID segmentation (MultiZone).
With support for up to 64 access points (APs), 24 Ethernet ports, and multiple WAN connections, the 7000 Series can provide up to 6 Gbps of firewall throughput—plenty of capacity for the most demanding distributed enterprise environments.
| Performance | |
|---|---|
| Number of VLANs | 4094 |
| Concurrent IPSec tunnels | 2048 |
| Number of users | 4096 user(s) |
| MAC address table | 0 entries |
| Number of Remote Access Points (max) | 64 |
| Number of LAN Access Points (max) | 64 |
| Firewall throughput | 8000 Mbit/s |
| Network | |
|---|---|
| Networking standards | IEEE 802.11ad, IEEE 802.11ax |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Management features | |
|---|---|
| VLAN support | Yes |
| Security | |
|---|---|
| Security algorithms | 3DES, AES |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Console port | RJ-45/micro-USB |
| Installed SFP modules quantity | 8 |
| Ethernet LAN (RJ-45) ports | 8 |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power consumption (typical) | 55 W |
| Power over Ethernet (PoE) | No |
| Design | |
|---|---|
| Product colour | Grey |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.06 kg |
| Dimensions (WxDxH) | 305 x 211 x 44 mm |
| General | |
|---|---|
| Product family | Aruba Networking |
