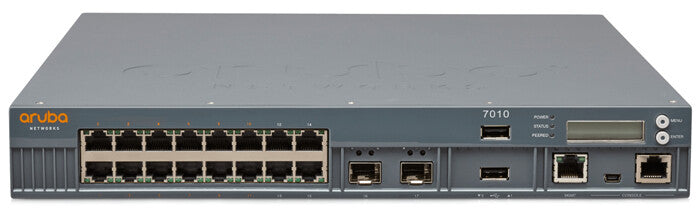

HPE Aruba Networking Aruba 7010 (RW) network management device 4000 Mbit/s Ethernet LAN Power over Ethernet (PoE)

HPE Aruba Networking Aruba 7010 (RW) network management device 4000 Mbit/s Ethernet LAN Power over Ethernet (PoE)

Hewlett Packard Enterprise
£3,011.99
Stock Available: 0
  • Firewall throughput: 4000 Mbit/s
  • Number of LAN Access Points (max): 32
  • Number of Remote Access Points (max): 32
  • 2048 user(s)
  • Ethernet LAN IEEE 802.3af VLAN support
  • Wired RJ-45/micro-USB
  • Power over Ethernet (PoE)

The 7000 Series Mobility Controller running ArubaOS delivers industry-leading network services that maximize Wi-Fi performance, ensure seamless roaming, and extends secure VPN access for Remote APs, Instant APs and VIA VPN clients.

The 7000 Series also serves as the key policy enforcement agent within the Dynamic Segmentation solution. Enforcement is accomplished through an industry-first user firewall (PEF), built-in Layer 7 application visibility and control, and web content filtering (WebCC).

As part of a controller cluster managed by Aruba's Mobility Master, the 7000 Series can take advantage of the full ArubaOS feature set, including centralized configuration hierarchy, AI-powered AirMatch, live firmware upgrades and secure multi-tenant SSID segmentation (MultiZone).

With support for up to 64 access points (APs), 24 Ethernet ports, and multiple WAN connections, the 7000 Series can provide up to 6 Gbps of firewall throughput—plenty of capacity for the most demanding distributed enterprise environments.

Performance
Number of VLANs 4094
Concurrent IPSec tunnels 1024
Number of users 2048 user(s)
MAC address table 0 entries
Number of Remote Access Points (max) 32
Number of LAN Access Points (max) 32
Firewall throughput 4000 Mbit/s
Network
Networking standards IEEE 802.3af
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN Yes
Management features
VLAN support Yes
Security
Security algorithms 3DES, AES
Ports & interfaces
USB 2.0 ports quantity 2
Console port RJ-45/micro-USB
Installed SFP modules quantity 2
Ethernet LAN (RJ-45) ports 16
Connectivity technology Wired
Power
Total Power over Ethernet (PoE) budget 150 W
Power consumption (typical) 190 W
Power over Ethernet (PoE) Yes
Design
Product colour Grey
Rack capacity 1U
Rack mounting Yes
Operational conditions
Storage relative humidity (H-H) 10 - 95%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 95%
Storage temperature (T-T) -40 - 70 °C
Weight & dimensions
Weight 3.4 kg
Dimensions (WxDxH) 31.8 x 33.7 x 4.4 mm
General
Product family Aruba Networking
