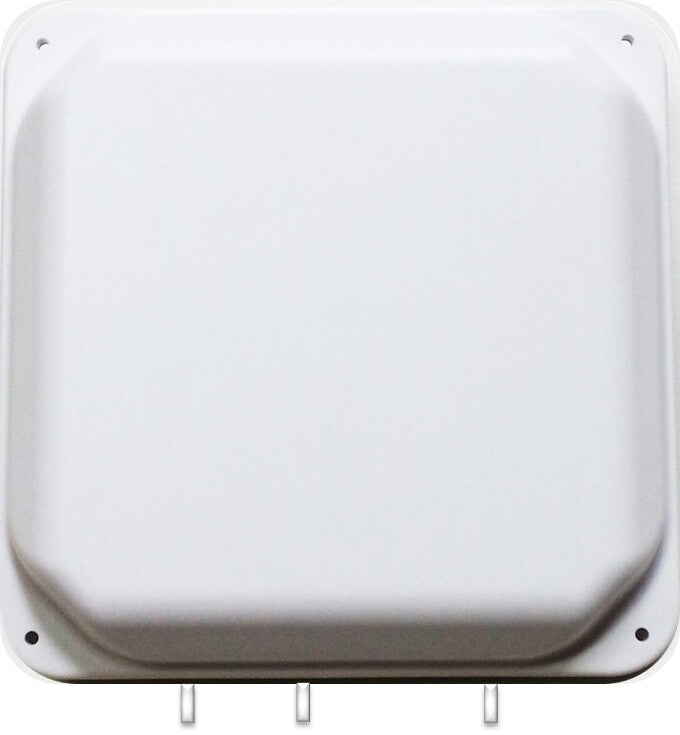

HPE Aruba Networking AP-ANT-38 network antenna Sector antenna RP-SMA 7.5 dBi
£264.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £88.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- Sector antenna RP-SMA White
- 7.5 dBi
- 2.4-2.5/4.9-6.0 GHz
- 50 Ω
- Vertical polarization Male
- Wall
- 6 W
AP-ANT-38 is a multipolarized antenna with 60° H x 60° V beamwidths. This antenna is well suited for 2.4-GHz and 5-GHz sector coverage for Wi-Fi access.
Specifications
Performance
| Antenna gain level (max) | 7.5 dBi |
|---|---|
| Frequency band | 2.4-2.5/4.9-6.0 GHz |
| Antenna gain (5 GHz) | 7.5 dBi |
| Antenna gain (2.4 GHz) | 7.5 dBi |
| Impedance | 50 Ω |
| Vertical beam width | 60° |
| Horizontal beam width | 60° |
Features
| Antenna type | Sector antenna |
|---|---|
| Connector gender | Male |
| Antenna connector type | RP-SMA |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Product colour | White |
| Housing material | Aluminium, Plastic |
| Purpose | Indoor & outdoor |
| Mounting | Wall |
Show all 23 specificationsShow fewer specifications
Power
| Power consumption (max) | 6 W |
|---|
Operational conditions
| Operating temperature (T-T) | -45 - 65 °C |
|---|
Weight & dimensions
| Width | 197.5 mm |
|---|---|
| Depth | 197.5 mm |
| Height | 34.5 mm |
| Diameter | 54.8 cm |
General
| Product family | Aruba Networking |
|---|
Manuals & downloads
