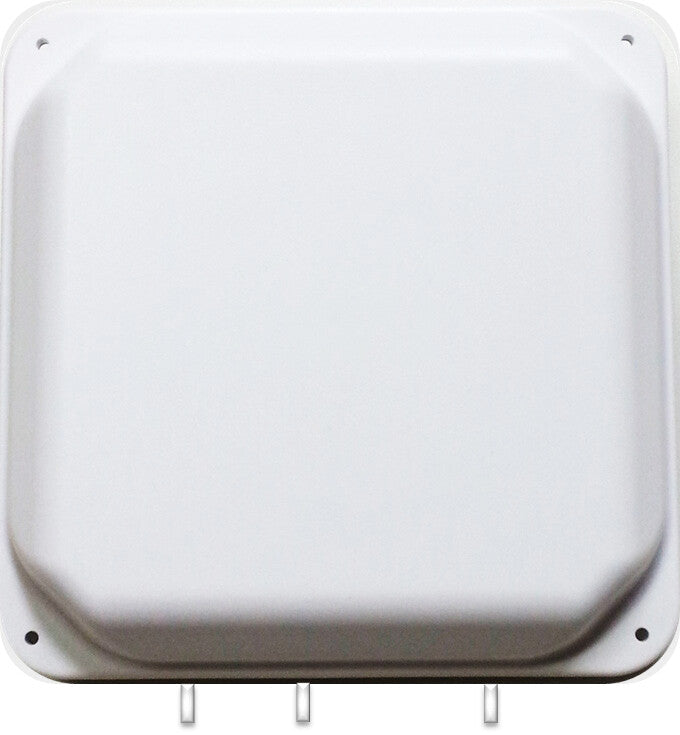

HPE Aruba Networking AP-ANT-35A network antenna Sector antenna RP-SMA 5 dBi

HPE Aruba Networking AP-ANT-35A network antenna Sector antenna RP-SMA 5 dBi

Hewlett Packard Enterprise
£264.99
Stock Available: 0
  • Sector antenna RP-SMA
  • 5 dBi
  • 2.4-2.5/4.9-6.0 GHz
  • 50 Ω
  • Male
  • Wall
  • 20 W

AP-ANT-35A is a multi polarized antenna with nominal 90° H x 90° V beamwidths. This antenna is well suited for 2.4 and 5 GHz sector coverage for access.

Performance
Horizontal beam width 100°
Vertical beam width 90°
Impedance 50 Ω
Antenna gain (2.4 GHz) 5 dBi
Antenna gain (5 GHz) 5 dBi
Frequency band 2.4-2.5/4.9-6.0 GHz
Antenna gain level (max) 5 dBi
Features
Mounting Wall
Purpose Indoor & outdoor
Housing material Aluminium, Plastic
Voltage Standing Wave Ratio (VSWR) 2:1
Antenna connector type RP-SMA
Connector gender Male
Antenna type Sector antenna
Power
Power consumption (max) 20 W
Operational conditions
Operating temperature (T-T) -45 - 70 °C
Weight & dimensions
Weight 750 g
Height 32 mm
Depth 200 mm
Width 200 mm
General
Product family Aruba Networking
Logistics data
Harmonized System (HS) code 85177100
