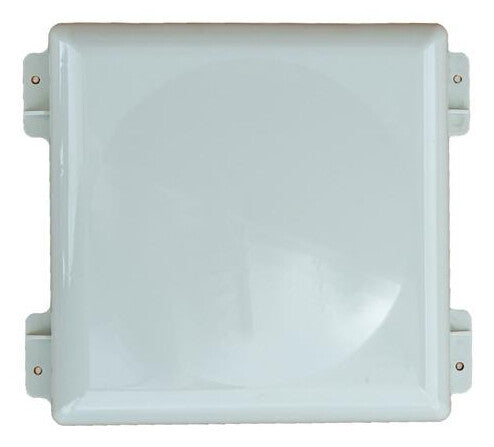

HPE Aruba Networking AP-ANT-348 Cabled RP-SMA Tri-Band 4x4 High Gain Directional Panel Antenna
£406.99
Couldn't load pickup availability
- SMA antenna RP-SMA Grey, White
- 8 dBi
- 2.4/5/6 GHz
- 50 Ω
- Survival wind speed: 220 km/h
.
| Performance | |
|---|---|
| Impedance | 50 Ω |
| Antenna gain (2.4 GHz) | 7.5 dBi |
| Antenna gain (5 GHz) | 8 dBi |
| Frequency band | 2.4/5/6 GHz |
| Antenna gain level (max) | 8 dBi |
| Features | |
|---|---|
| Isolation | 20 dB |
| Survival wind speed | 220 km/h |
| International Protection (IP) code | IP67 |
| Housing material | Polycarbonate (PC) |
| Product colour | Grey, White |
| Voltage Standing Wave Ratio (VSWR) | < 2.0:1 |
| Antenna connector type | RP-SMA |
| Antenna type | SMA antenna |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Weight | 544.3 g |
| Height | 190 mm |
| Depth | 40 mm |
| Width | 190 mm |
