HPE Aruba Networking AP-ANT-32 network antenna Omni-directional antenna 4 dBi
£159.99
Couldn't load pickup availability
- Omni-directional antenna Grey, Metallic
- 4 dBi
- 2.4-2.5/4.9-6.0 GHz
- 50 Ω
- Vertical polarization
- 20 W

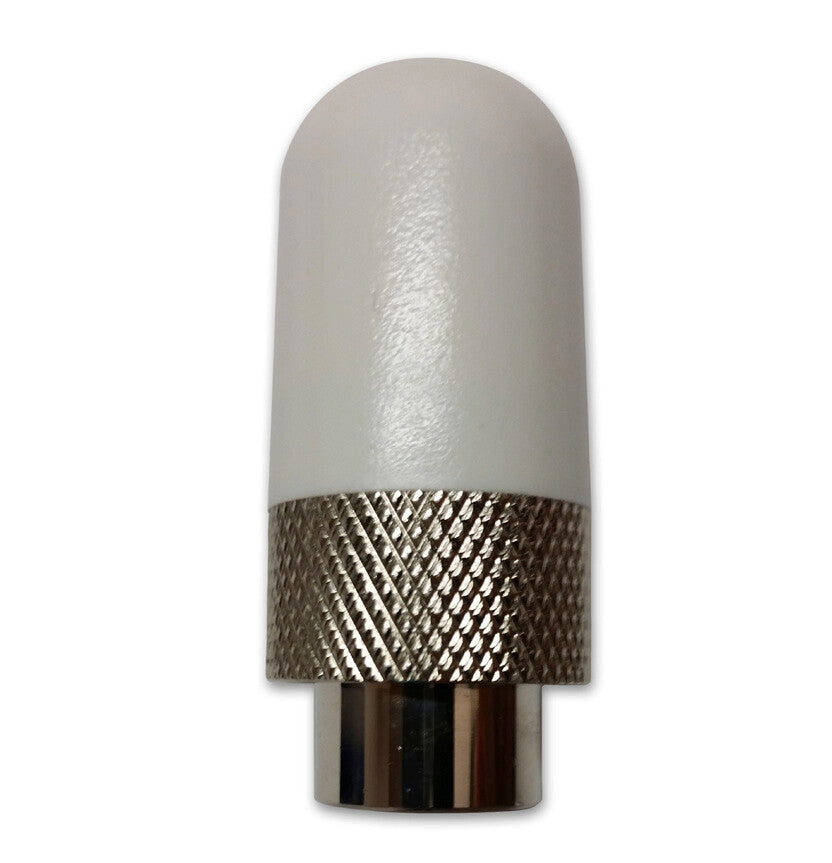

AP-ANT-32 is a kit of three small downtilt omni antennas with nominal 360° H x 45° V beamwidths.
| Performance | |
|---|---|
| Horizontal beam width | 360° |
| Vertical beam width | 45° |
| Impedance | 50 Ω |
| Antenna gain (2.4 GHz) | 2 dBi |
| Antenna gain (5 GHz) | 4 dBi |
| Frequency band | 2.4-2.5/4.9-6.0 GHz |
| Antenna gain level (max) | 4 dBi |
| Features | |
|---|---|
| Purpose | Indoor |
| Product colour | Grey, Metallic |
| Voltage Standing Wave Ratio (VSWR) | 2:1 |
| Polarization | Vertical polarization |
| Antenna type | Omni-directional antenna |
| Power | |
|---|---|
| Power consumption (max) | 20 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -45 - 65 °C |
| Weight & dimensions | |
|---|---|
| Weight | 30 g |
| Diameter | 1.96 cm |
| Height | 44.2 mm |
| General | |
|---|---|
| Product family | Aruba Networking |
| Packaging content | |
|---|---|
| Quantity per pack | 3 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85177100 |
