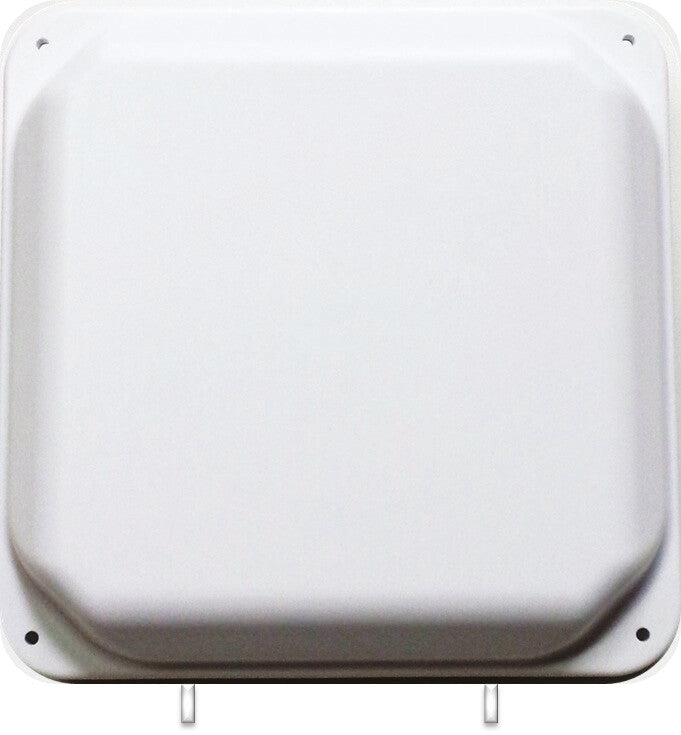

HPE Aruba Networking AP-ANT-28 network antenna Sector antenna RP-SMA 7.5 dBi

HPE Aruba Networking AP-ANT-28 network antenna Sector antenna RP-SMA 7.5 dBi

Hewlett Packard Enterprise
£342.99
Stock Available: 0
  • Sector antenna RP-SMA White
  • 7.5 dBi
  • 2.4-2.5/4.9-6.0 GHz
  • 50 Ω
  • Dual polarization Male
  • Wall
  • 6 W

AP-ANT-28 is a dual-polarized antenna with 60° H x 60° V beamwidths. This antenna is well suited for 2.4-GHz and 5-GHz sector coverage for Wi-Fi access.

Performance
Horizontal beam width 60°
Vertical beam width 60°
Impedance 50 Ω
Antenna gain (2.4 GHz) 7.5 dBi
Antenna gain (5 GHz) 7.5 dBi
Frequency band 2.4-2.5/4.9-6.0 GHz
Antenna gain level (max) 7.5 dBi
Features
Mounting Wall
Purpose Indoor & outdoor
Housing material Aluminium, Plastic
Product colour White
Voltage Standing Wave Ratio (VSWR) 2:1
Polarization Dual polarization
Antenna connector type RP-SMA
Connector gender Male
Antenna type Sector antenna
Power
Power consumption (max) 6 W
Operational conditions
Operating temperature (T-T) -45 - 65 °C
Weight & dimensions
Weight 489 g
Height 34.5 mm
Depth 197.5 mm
Width 197.5 mm
General
Product family Aruba Networking
Logistics data
Harmonized System (HS) code 85177100
