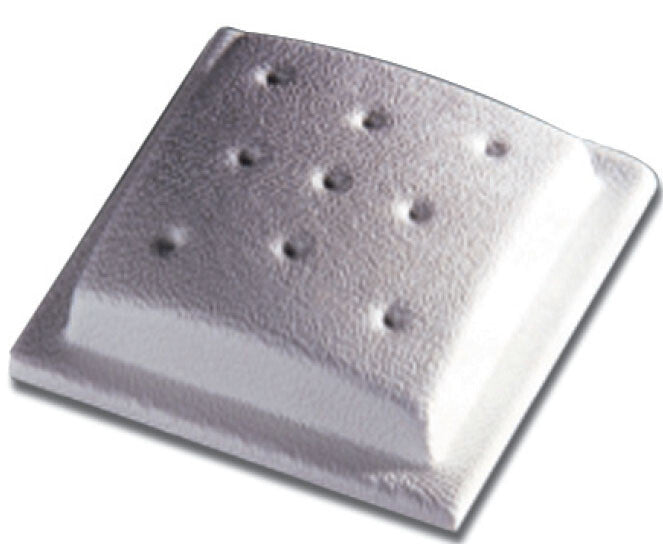

HPE Aruba Networking AP-ANT-13B network antenna Omni-directional antenna RP-SMA 4.4 dBi
Couldn't load pickup availability
- Omni-directional antenna RP-SMA White
- 4.4 dBi
- 2.4 - 2.5 / 4.9 - 5.875 GHz
- 50 Ω
- Vertical polarization
- Ceiling
AP-ANT-13B antenna offers characteristics that are only normally seen in much larger antennas, offering ”no compromise” coverage ideally suited for high-density AP deployments. The AP-ANT-13B antenna features a discrete, small package that easily blends into the office environment and its well-defined coverage area ensures excellent system-wide in-building performance in high-density, high-capacity environments. Ideal for conference rooms, dense cubicle deployments.
The AP-ANT-13B is available as a single antenna or a multipack three antenna kit, the AP-ANT-13B-KIT. An array of three AP-ANT-13Bs can be used with a single AP-124 to provide full dual-band 802.11a/b/g/n MIMO coverage, or the AP-ANT-13B single antenna can be used individually or in combination to provide diversity/non-diversity coverage with legacy 802.11a/b/g access points.
| Performance | |
|---|---|
| Antenna gain level (max) | 4.4 dBi |
| Frequency band | 2.4 - 2.5 / 4.9 - 5.875 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Antenna gain (5 GHz) | 3.3 dBi |
| Antenna gain (2.4 GHz) | 4.4 dBi |
| Impedance | 50 Ω |
| Features | |
|---|---|
| Antenna type | Omni-directional antenna |
| Antenna connector type | RP-SMA |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | < 2.0:1 |
| Product colour | White |
| Purpose | Indoor |
| Mounting | Ceiling |
| Cable length | 0.76 m |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Width | 55 mm |
| Depth | 55 mm |
| Height | 16 mm |
| General | |
|---|---|
| Product family | Aruba Networking |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
