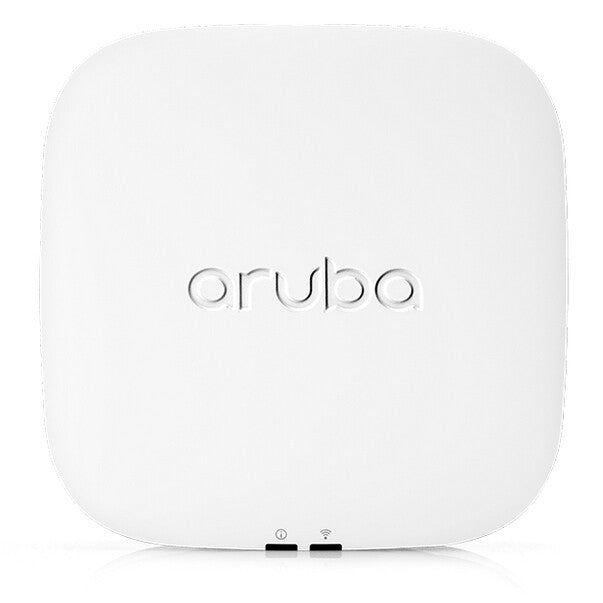

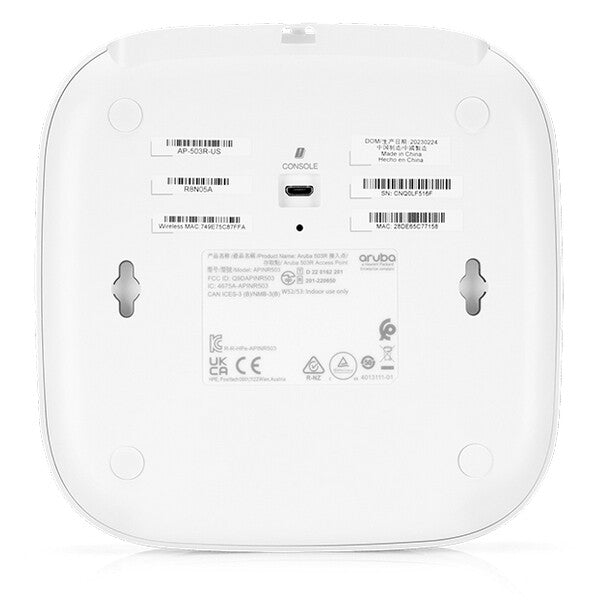

HPE Aruba Networking AP-503R-RW 1490 Mbit/s White
£231.99
Couldn't load pickup availability
- 2.4 GHz 574 Mbit/s
- 5 GHz 1200 Mbit/s
- Maximum data transfer rate: 1490 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az
- WMM, WPA, WPA2, WPA3
- Antennas quantity: 2 Internal Integrated antenna
HPE Aruba Networking 500R Series Remote Access Points enable IT teams to deliver cost-effective Wi-Fi 6 coverage in a compact desktop form factor to hundreds or even thousands of remote workers. With 1.49 Gbps maximum combined speed, these APs are well-suited for small branches and remote work. Two wired ports provide additional device support for work from home and an add-on LTE USB module delivers cellular backhaul capabilities.
| Features | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| MIMO | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate | 1490 Mbit/s |
| 5 GHz | Yes |
| 6 GHz | No |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Security algorithms | WMM, WPA, WPA2, WPA3 |
| Ports & interfaces | |
|---|---|
| USB connector type | Micro-USB B, USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power supply | 18 W |
| Power consumption (max) | 15.4 W |
| DC voltage range | 12 V |
| Power over Ethernet (PoE) | No |
| Design | |
|---|---|
| LED indicators | Status |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | White |
| Placement | Desk, Wall |
| Antenna | |
|---|---|
| Antenna gain level (max) | 5.1 dBi |
| Antennas quantity | 2 |
| Antenna features | Integrated antenna |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| Weight & dimensions | |
|---|---|
| Weight | 320 g |
| Height | 39 mm |
| Depth | 150 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package weight | 600 g |
| Package height | 50 mm |
| Package depth | 170 mm |
| Package width | 240 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
